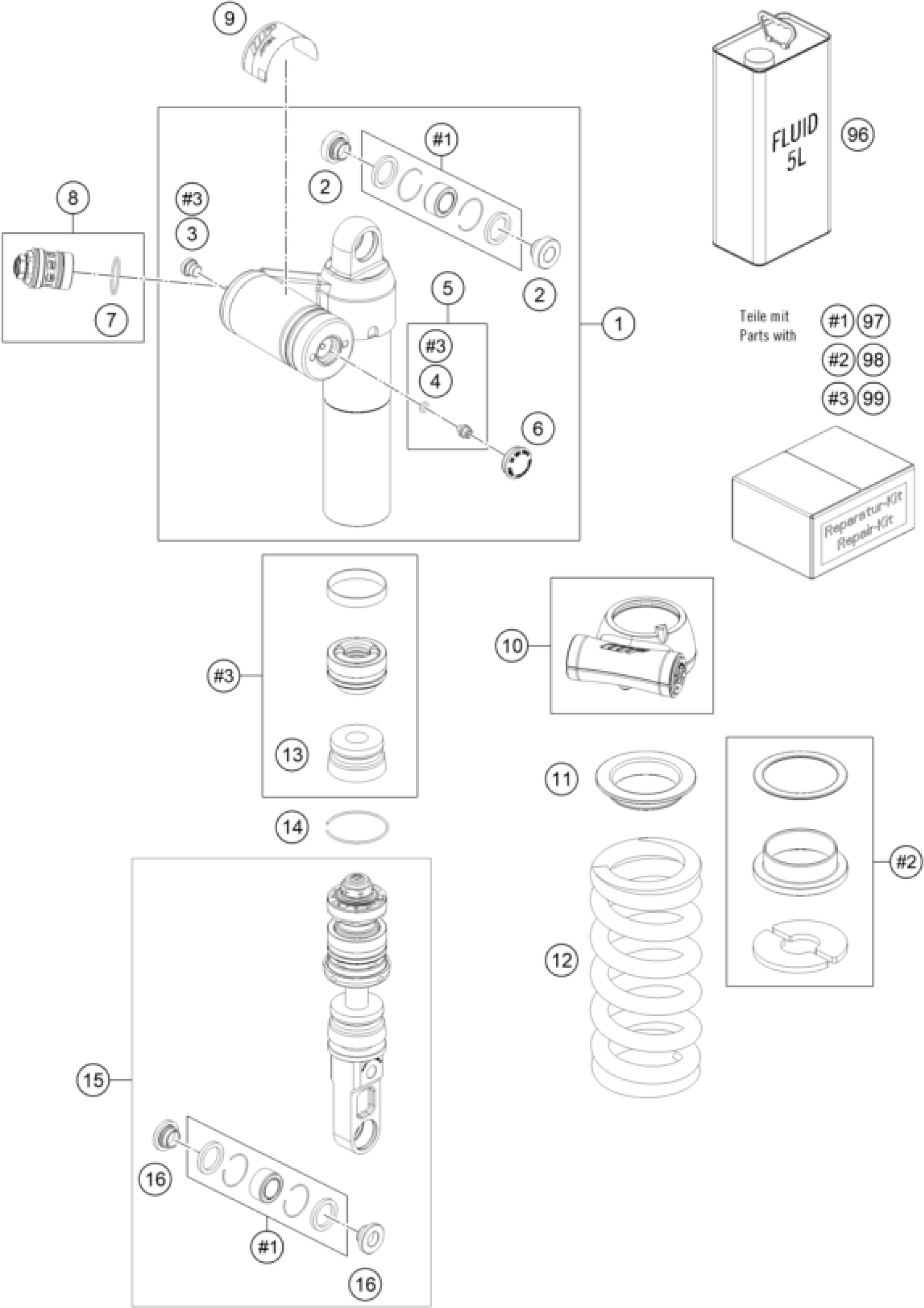

KTM 890 Duke R 2020 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description

Price

1

Shock upper part

46181296S1

$447.58

2

Bearing bush 12x15/18/24,5x13,

46180064

$16.73

3

HS cylinder-head screw R1/8 l8

50180095

$2.42

4

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

5

PLUG SCREW M5X6 CPL.

36120151S

$4.11

6

Rubber cap do not open 22x5,5

46811208

$3.08

7

O-ring 27x1,5 Viton70 green IS

50180217

$2.05

8

Compression adjuster cpl.black

50180213S31

$103.50

9

Sticker APEX 90x29

52000213

$34.21

10

PA cpl. KTM

15000O21

$331.17

11

Spring retainer 52,5x78x3

14460661

$5.79

12

Main spring (59) 138-195 dampe

91010427

Unavailable

13

Rubber pad 17,2x45,2x30 black

46180365

$56.84

14

Round-wire snap ring 49x1,5

46810010

$3.08

15

Shock bottom part

46181286S1

$460.39

16

Distance bush 12x15/18/24,5x10

46180007

$17.76

96

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

97

Ball joint bearing kit top 12m

R12012

Unavailable

98

Repair kit spring retainer

RP10023

Unavailable

99

REPAIR-KIT GASKET 05

R15002

Unavailable

12

main spring (59) 150-195 shock

91010406

$133.32

12

Main spring (59) 162-195 dampe

91010428

Unavailable
