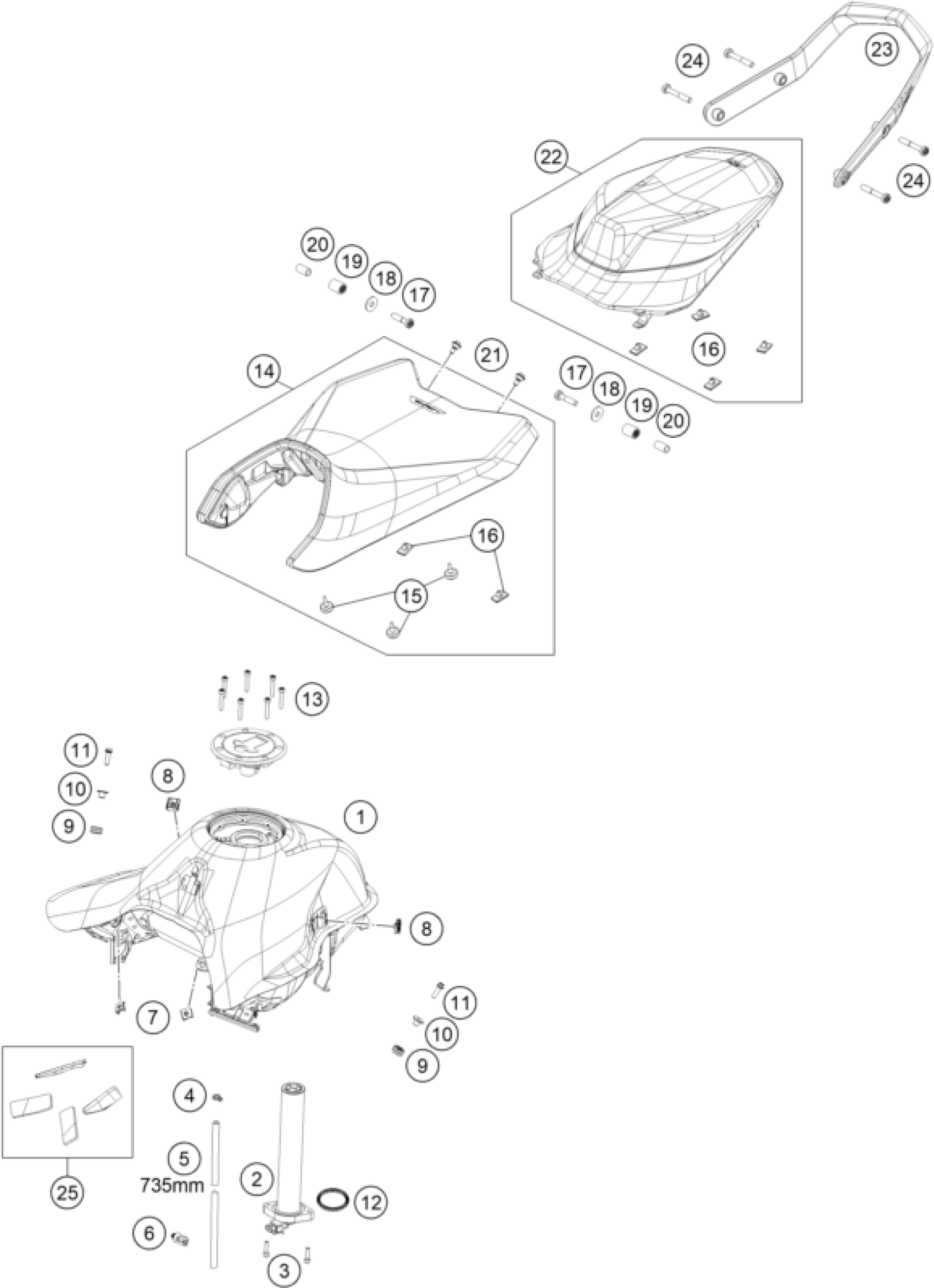

KTM 890 DUKE, black 2022 TANK, SEAT Diagram

#

Description

Price

1

Fuel tank steel

63607013000CC

$530.88

2

Fuel level sensor

64107080100

$134.35

3

AH SCREW DIN0912-M 5X20

0912050203

$1.49

4

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

5

HOSE EPA D=6/10 L=2000MM

78015019000

$62.64

6

Cable tie w. socket D=6.5

69011092000

$1.49

7

RANGE CHANGE METAL NUT M5

54603048200

$5.23

8

RANGE CHANGE METAL NUT M6 INOX

54603048300

$5.23

9

DAMP. COMPONENT ABS MODUL

62142041000

$4.11

10

Collar bushing 6.5X9X18X8.5

61342041000

$1.49

11

HH collar screw M6x20 TX30

0025060206

$3.08

12

Gasket fuel lever sensor

60307080090

$50.67

13

Cap hd. screw ISO14579, M5x16-

014579050166

$1.49

14

Rider´s seat

63607040000C1A

$226.26

15

Distance rupper airbox 03

60006001021

$2.05

16

Isolation pad

77307040041

$2.05

17

AH-COLLAR SCREW M8X35 ISA45

0035080356

$4.11

18

WASHER DIN9021-A 8,4

0021080003

$1.49

19

RUBBER SEAT-CONTACT SURFACE

60307048000

$5.70

20

BUSHING 8.4X12X21.5

61407049000

$7.47

21

Special screw M6x15x5,5-8.8 MK

0900000601500S

$2.05

22

Passenger seat cmpl.

64107047033

$174.56

23

Pillion Handle Bar

64112008100

$60.67

24

AH collar screw M8x50 ISA45

0035080506S

$5.23

25

Tank Protection Set Metamoll

64107012000

$10.09
