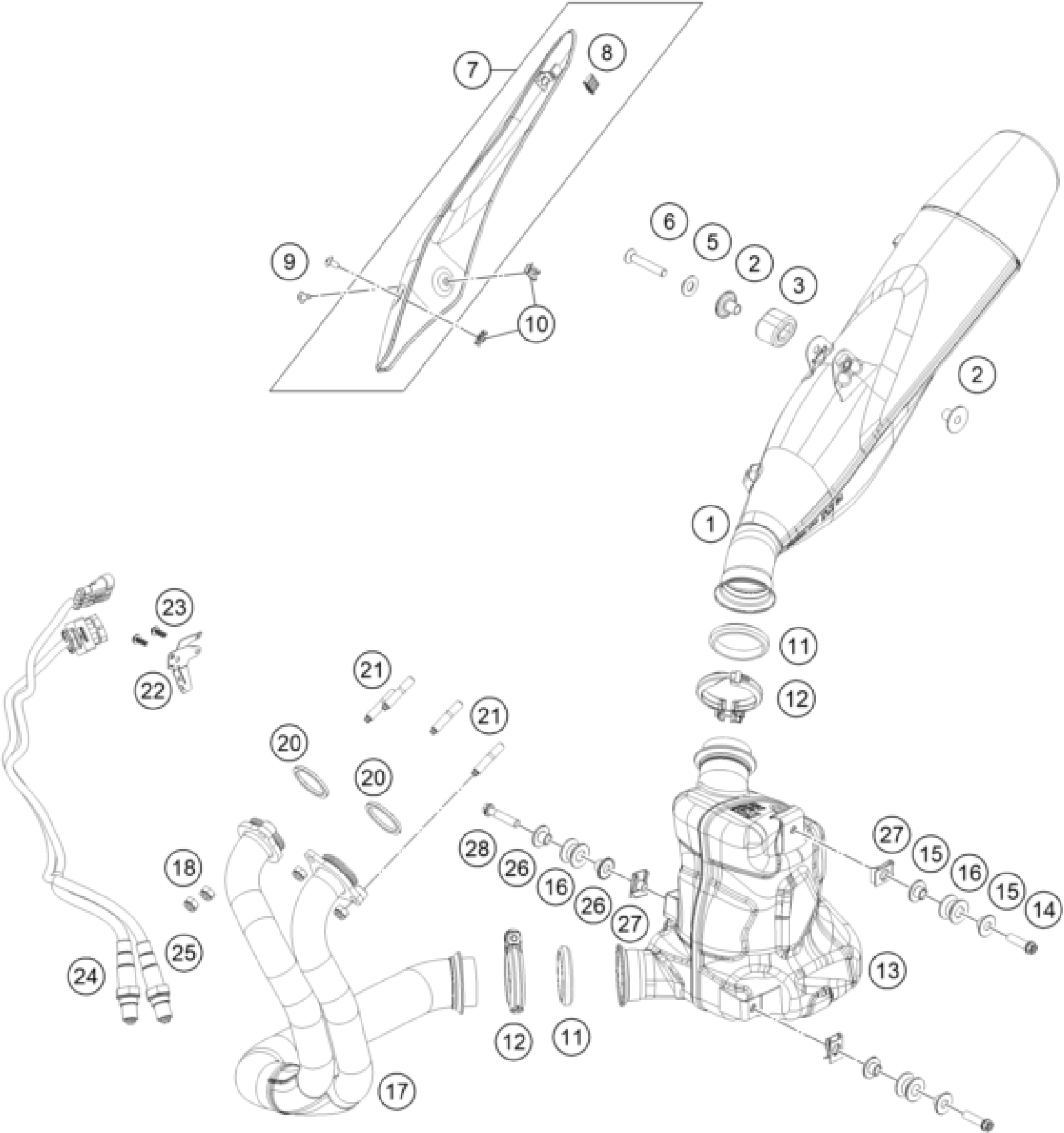

KTM 890 DUKE, black 2022 EXHAUST SYSTEM Diagram

#

Description

Price

1

Silencer

64105183000

Unavailable

2

Bushing 8.5X11X29

61305069000

Unavailable

3

DAMPING RUBBER

61305068000

Unavailable

5

Shape disc Alu

60405069000

Unavailable

6

COUN.-SUNK SCREW M8X50 ISA10.9

0019080506

Unavailable

7

head protection with mounting

64105011000

Unavailable

8

DAMPING ELEMENT SILICON

27005011011

Unavailable

9

SCREW TORX M5X10

78105081010

Unavailable

10

RANGE CHANGE METAL NUT M5 INOX

54603048600

Unavailable

11

Manifold gasket

69005105005

Unavailable

12

Exhaust clamp tube 50 mm

63605058100

Unavailable

13

Pre-muffler

63605050000

Unavailable

14

HH COLLAR SCREW M8X35 TX40

0025080356S

Unavailable

15

collar bushing 8.5x12x23.5x10

58405050065

Unavailable

16

damp. component silicone grey

54305068100

Unavailable

17

Manifold

63605007000

Unavailable

18

self-locking nut M8 Cu

51010086100

Unavailable

20

Exhaust gasket

64105005000

Unavailable

21

stud screw 835 M8x25 - 10.9

63505015000

Unavailable

22

Bracket lambda sensor signal

64142040020

Unavailable

23

EJOT PT screw K50x14

0081050141

Unavailable

24

O2 Sensor LSF 4

63541090000

Unavailable

25

O2 Sensor LSF 4

63541190000

Unavailable

26

Collar bushing, 8.5x12x23.5x11

0800000901200

Unavailable

27

RANGE CHANGE METAL NUT M8

54603048000

Unavailable

28

Collar screw M8x40 ISA40 SS

0025080406S

Unavailable
