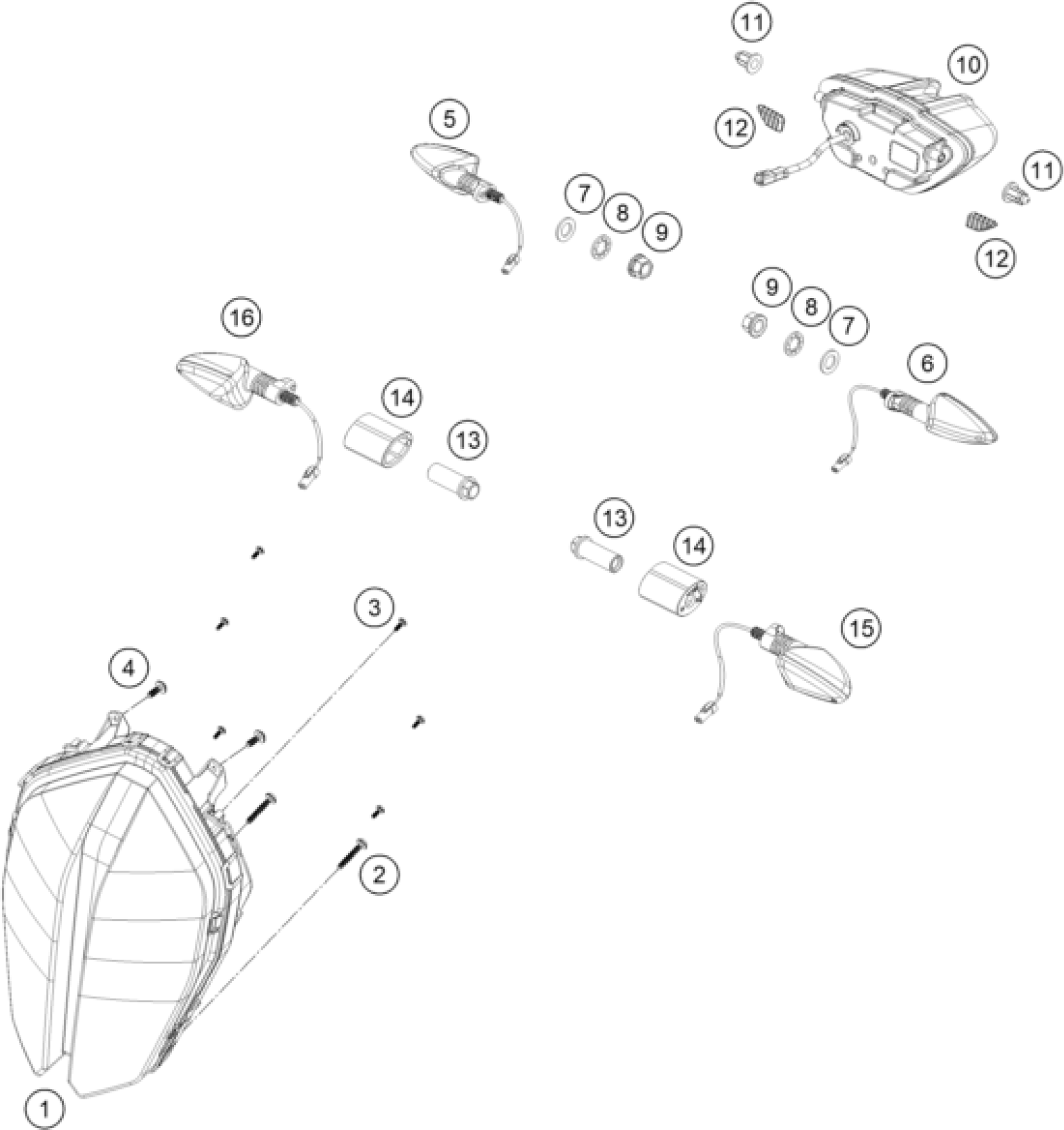

KTM 890 DUKE, black 2021 LIGHTING SYSTEM Diagram

#

Description

Price

1

Headlight

63614001000

Unavailable

2

Ejot PT screw 4x25 WN 5451

0081040253

Unavailable

3

Ejot PT screw 3x8 WN 5451 blac

0081030081

Unavailable

4

SCREW FOR PLASTIC K45X12 T20

0081045121

Unavailable

5

FLASHER CPL.FRONT L/S REAR R/S

78114025000

Unavailable

6

FLASHER CPL.FRONT R/S REAR L/S

78114026000

Unavailable

7

Washer DIN0433-M10

0433100003

Unavailable

8

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

9

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

10

Tail light

64114040000

Unavailable

11

Rubber damper top

64108015060

Unavailable

12

Rubber damper bottom

64108015070

Unavailable

13

Nut indic. Carr. Extension USA

64114525020

Unavailable

14

Turn signal support adapter US

64114525010

Unavailable

15

Turn signal USA front left

61714525000

Unavailable

16

Turn signal USA front right

61714526000

Unavailable
