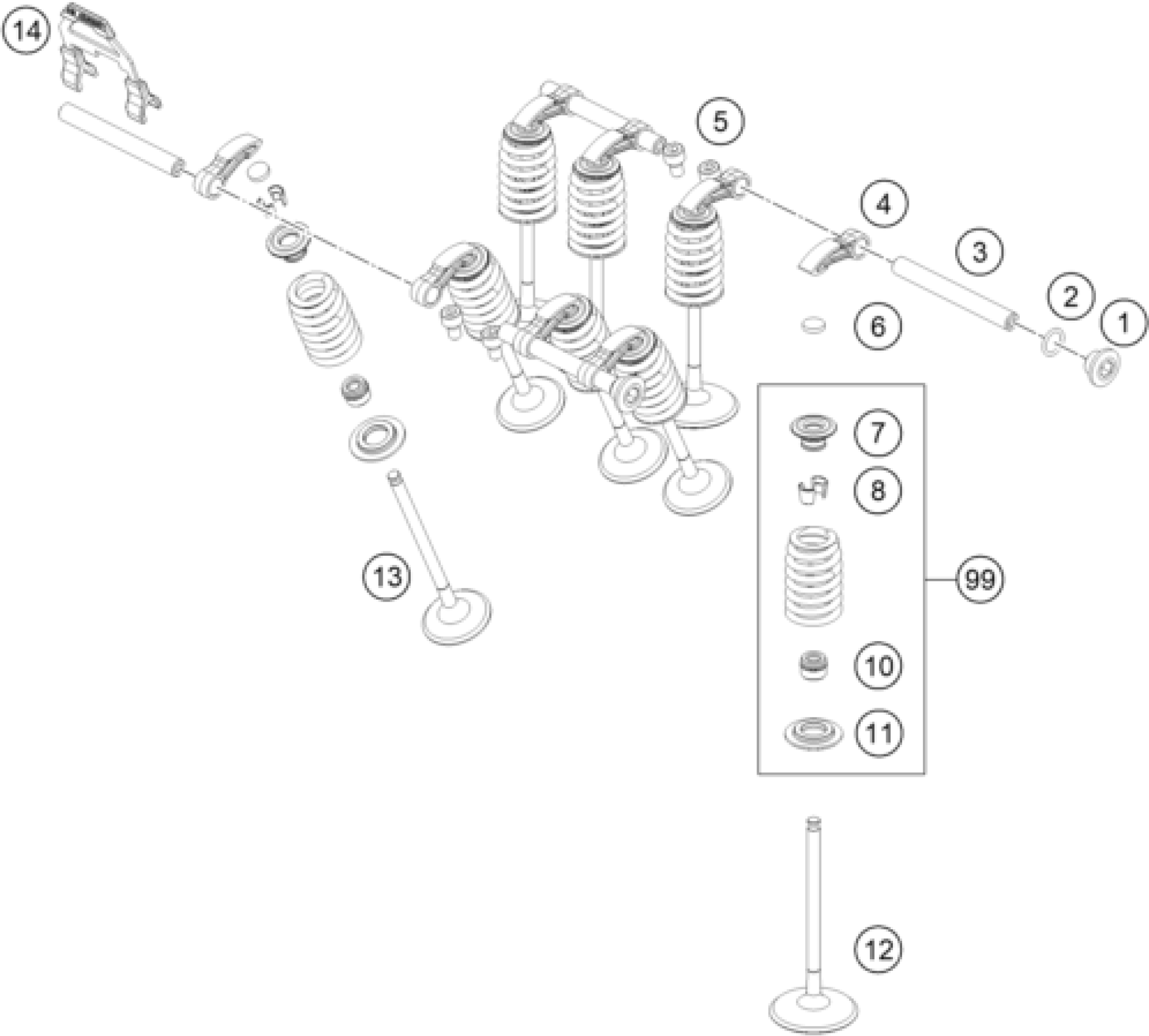

KTM 890 DUKE, black 2021 VALVE DRIVE Diagram

#

Description
Price

1

threaded plug

77236080100

$6.63

2

O-RING 9x1,5 V80 SH

07700900151

$2.05

3

cam follower shaft

63536056000

$9.81

4

Cam follower

63536060000

$15.61

5

Cap head screw, ISO 14579, M5x

014579050086S

$1.49

6

SHIM D=8,9/1,72

77036035172

Unavailable

6

SHIM D=8,9/1,76

77036035176

Unavailable

6

SHIM D=8,9/1,80

77036035180

Unavailable

6

SHIM D=8,9/1,84

77036035184

Unavailable

6

SHIM D=8,9/1,88

77036035188

Unavailable

6

SHIM D=8,9/1,92

77036035192

Unavailable

6

SHIM D=8,9/1,96

77036035196

Unavailable

6

SHIM D=8,9/2,00

77036035200

Unavailable

6

SHIM D=8,9/2,04

77036035204

Unavailable

6

SHIM D=8,9/2,08

77036035208

Unavailable

6

SHIM D=8,9/2,12

77036035212

Unavailable

6

SHIM D=8,9/2,16

77036035216

Unavailable

6

SHIM D=8,9/2,20

77036035220

Unavailable

6

SHIM D=8,9/2,24

77036035224

Unavailable

6

SHIM D=8,9/2,28

77036035228

Unavailable

6

SHIM D=8,9/2,32

77036035232

Unavailable

6

SHIM D=8,9/2,36

77036035236

Unavailable

6

SHIM D=8,9/2,40

77036035240

Unavailable

6

SHIM D=8,9/2,44

77036035244

Unavailable

6

SHIM D=8,9/2,48

77036035248

Unavailable

6

SHIM D=8,9/2,52

77036035252

Unavailable

6

SHIM D=8,9/2,56

77036035256

Unavailable

6

SHIM D=8,9/2,60

77036035260

Unavailable

7

valve spring retainer

63536032100

$15.14

8

valve collet

77036033000

$5.23

10

valve stem seal

90236027000

$5.23

11

Valve spring washer

63536036100

$2.05

12

Inlet valve

63636130000

$26.73

13

Exhaust valve

63636131000

$38.05

14

cam follower clip

63536056050

$5.98

99

VALVE SPRING KIT

63636028044

Unavailable
