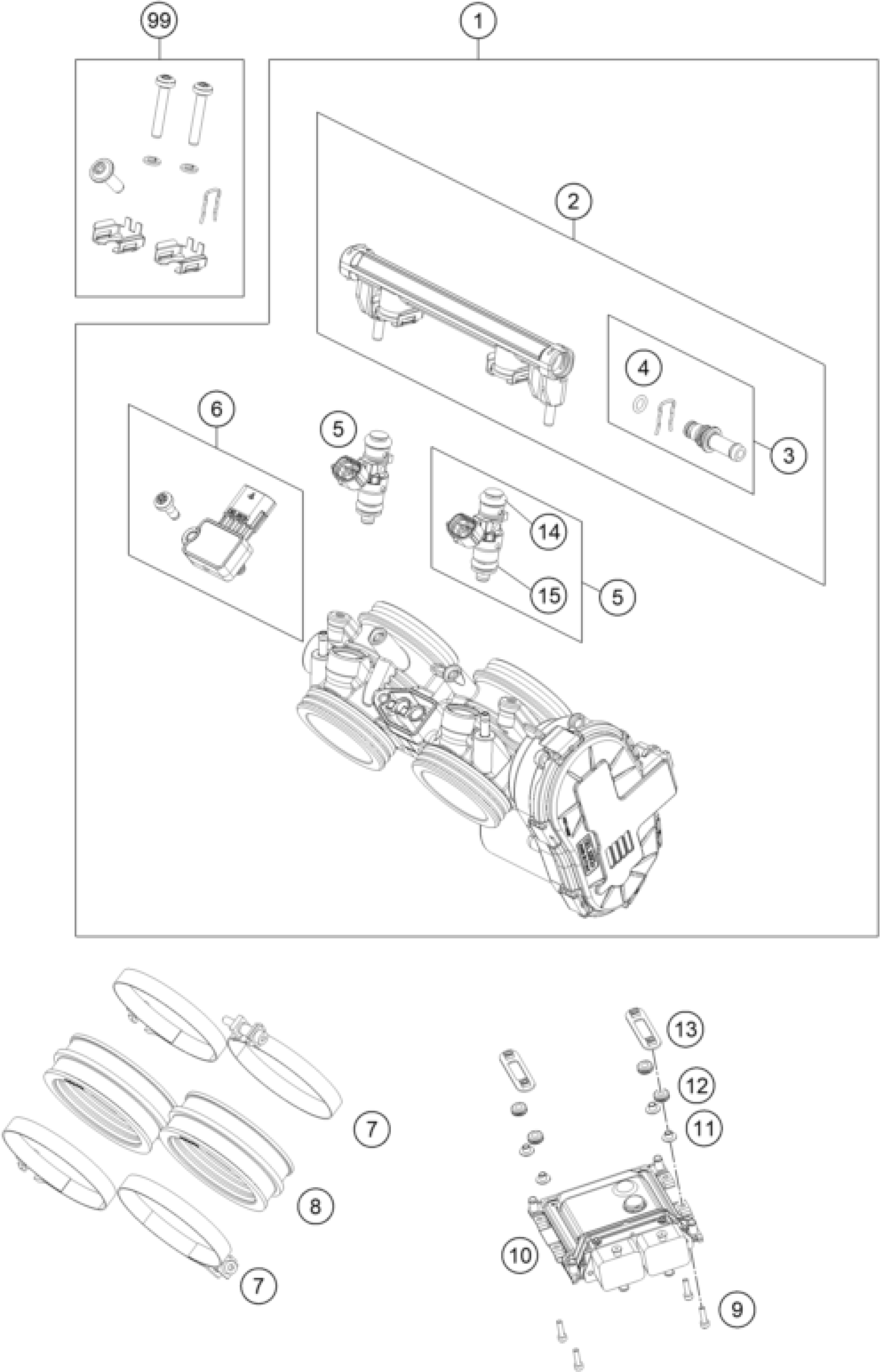

KTM 890 DUKE, black 2021 THROTTLE BODY Diagram

#

Description

Price

1

Throttle valve body

63641001000

Unavailable

2

Fuel pipe

63541013050

Unavailable

3

Fuel connector cmpl.

63541013044

Unavailable

4

Square and dust seal

63541013010

Unavailable

5

Injektor

63641023044

Unavailable

6

MAP sensor, cmpl.

63641085044

Unavailable

7

hose clamp Gemi 66

61236048000

Unavailable

8

Intake Sleeve

63536044000

Unavailable

9

AH screw DIN0912 M4x16 self-lo

0912040163S

Unavailable

10

EFI control unit

63541031100

Unavailable

11

Collar Bushing 4.5x6x12x6.3

64141030010

Unavailable

12

Rubber grommet control unit

64141030000

Unavailable

13

Mounting Bracket ECU cpl.

64141029000

Unavailable

99

Smallpart kit

63641099000

Unavailable

14

O-ring

55641023020

Unavailable

15

O-ring

55641023010

Unavailable
