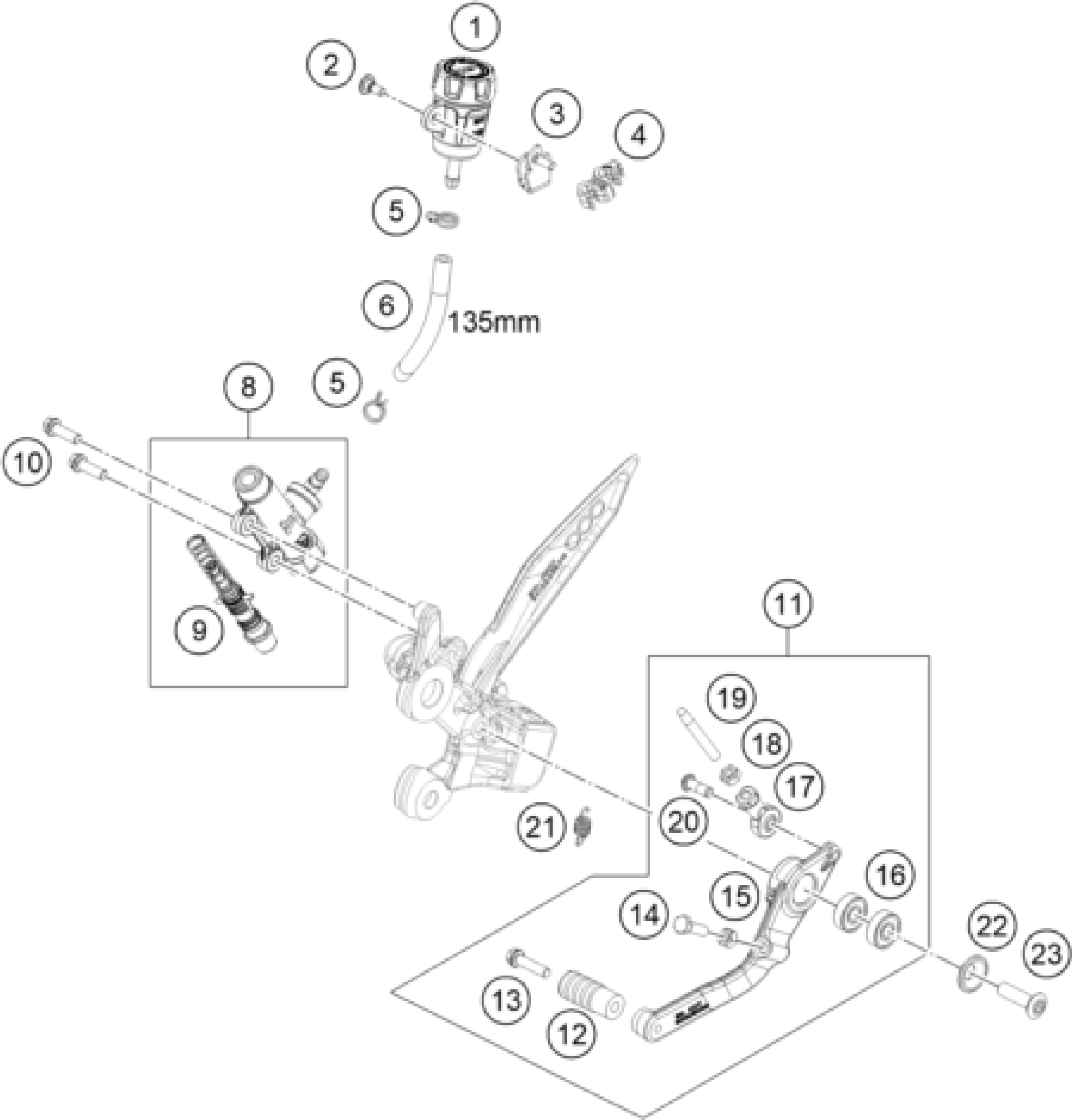

KTM 890 DUKE, black 2021 REAR BRAKE CONTROL Diagram

#

Description

Price

1

Reservoir assembly

64113069000

$35.33

2

Screw for expansion tank

69013099050

$4.11

3

Brake line holder

64113026000

$19.16

4

Bracket ABS line dia7.5

64142046000

$2.05

5

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

6

HOSE FOR RESERVOIR 6X1,5

69013069001

$16.35

8

Foot master cylinder cpl. blac

6411306000030

$116.96

9

Piston assembly

64113061000

$59.36

10

HH collar screw M6x20 TX30

0025060206

$3.08

11

Foot brake lever cpl. black

6411305004433

$147.72

12

Brake pedal tread Duke

64103060051

$20.56

13

SK-BUNDSCHRAUBE M6X25 ISA30

0025060256S

$1.49

14

Hexagon Screw M6x20-8.8 black

04017060201

$1.49

15

hexagon nut DIN 934 M6 black

0934060001

$1.49

16

Grooved ball bearing 608 2RS C

0625006087

$21.40

17

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

$37.20

18

Hex. nut DIN 934 M6

0934060003

$1.49

19

PRESSURE ROD ALU 250 '90

54603068000

$6.35

20

oval head screw M6x18 A2-70 S

0738060185S

$1.49

21

SPRING FOOT BRAKE LEVER 05

61013052000

$3.08

22

Fasson Disc D=23x5

64134031020

$5.23

23

COUNTER-SUNK SCREW ISA45 M8X30

0019080306S

$1.49
