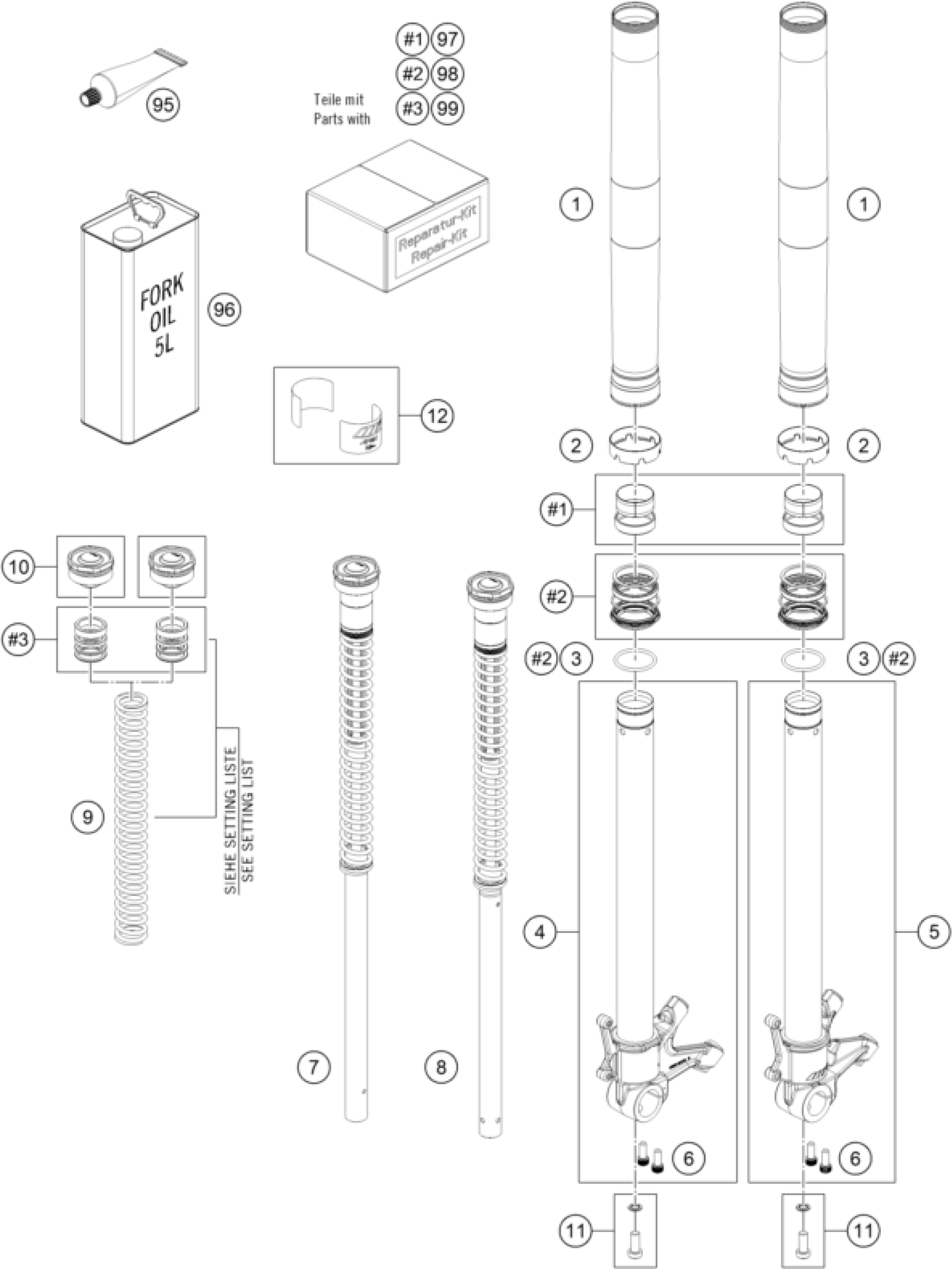

KTM 890 DUKE, black 2021 FRONT FORK DISASSEMBLED Diagram

#

Description

Price

1

fork outer tube 44,33x515 dt54

43578257

Unavailable

2

Fork protection ring d43

43578206

Unavailable

3

O-ring 40x2,5 VMQ70 red ISO 36

43578219

Unavailable

4

Fork shoe right d43mm cmpl.

43578097S1

Unavailable

5

Fork shoe left d43mm cmpl.

43578096S1

Unavailable

6

HH collar screw M8x20

0025080206

Unavailable

7

Cartridge right 890 Duke 21 cp

43578176S7

Unavailable

8

cartridge left 890 Duke 21 cpl

43578195S7

Unavailable

9

main spring (38.2) 7.5-320 for

43578297S

Unavailable

10

screw cap M51x1.5 cpl.

43578209S1

Unavailable

12

Sticker set APEX OC 90x40

52000210SET

Unavailable

95

SILICONE GREASE F. DUST STRI

T511

Unavailable

96

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

97

GUIDE BUSHING SET

R14042

Unavailable

98

Fork sealing kit 43mm

R516T

Unavailable

11

HS cylinder-head screw M10x25

43578177S1

Unavailable

99

Shim Kit Fork

RP80002

Unavailable
