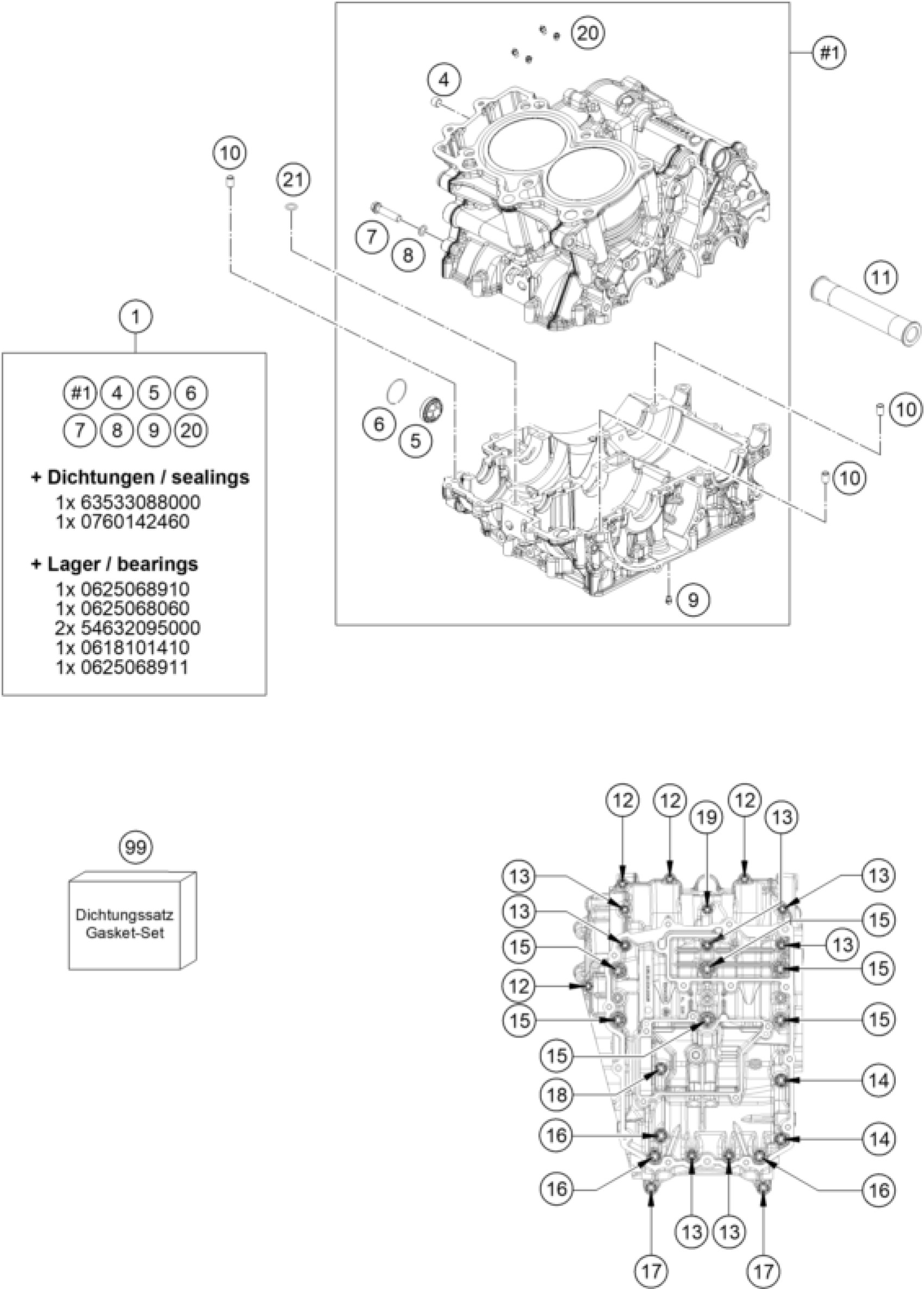

KTM 890 DUKE, black 2021 ENGINE CASE Diagram

#

Description

Price

1

Crankcase cmpl.

6363000014424

Unavailable

4

pipe plug DIN 906 M10x1

0906100100

Unavailable

5

OIL SIGHT GLASS

59030019200

Unavailable

6

CIRCLIP OIL LEVEL GLASS 03

61030019050

Unavailable

7

HH collar screw M8x35 TX40

0025080356

Unavailable

8

COPPER Gask.DIN7603- 8.2X13X1

0603082131

Unavailable

9

oil jet 70 M5

60030063070

Unavailable

10

dowel sleeve 6x8x11.5

59030023000

Unavailable

11

housing socket

63530010000

Unavailable

12

Hex collar scr., M6x30, ISA 30

00002506030U0

Unavailable

13

Hex collar scr., M6x60, ISA 30

00002506060U0

Unavailable

14

HH collar screw M8x90 TX40

0025080906

Unavailable

15

Hex collar scr., M8x90, ISA 40

00002508090U0

Unavailable

16

HH collar screw M8x65 TX40

0025080656

Unavailable

17

HH collar screw M8x55 TX40

0025080556

Unavailable

18

HH collar screw M8x45 TX40

0025080456

Unavailable

19

Hexagon collar nut M8x65 ISA 4

00002508065U0

Unavailable

99

Engine gasket kit 890 Duke 202

63630099000

Unavailable

20

oil jet 50 M5

60030063050

Unavailable

21

O-ring 10x1.8 HNBR70 black

0377101018000

Unavailable
