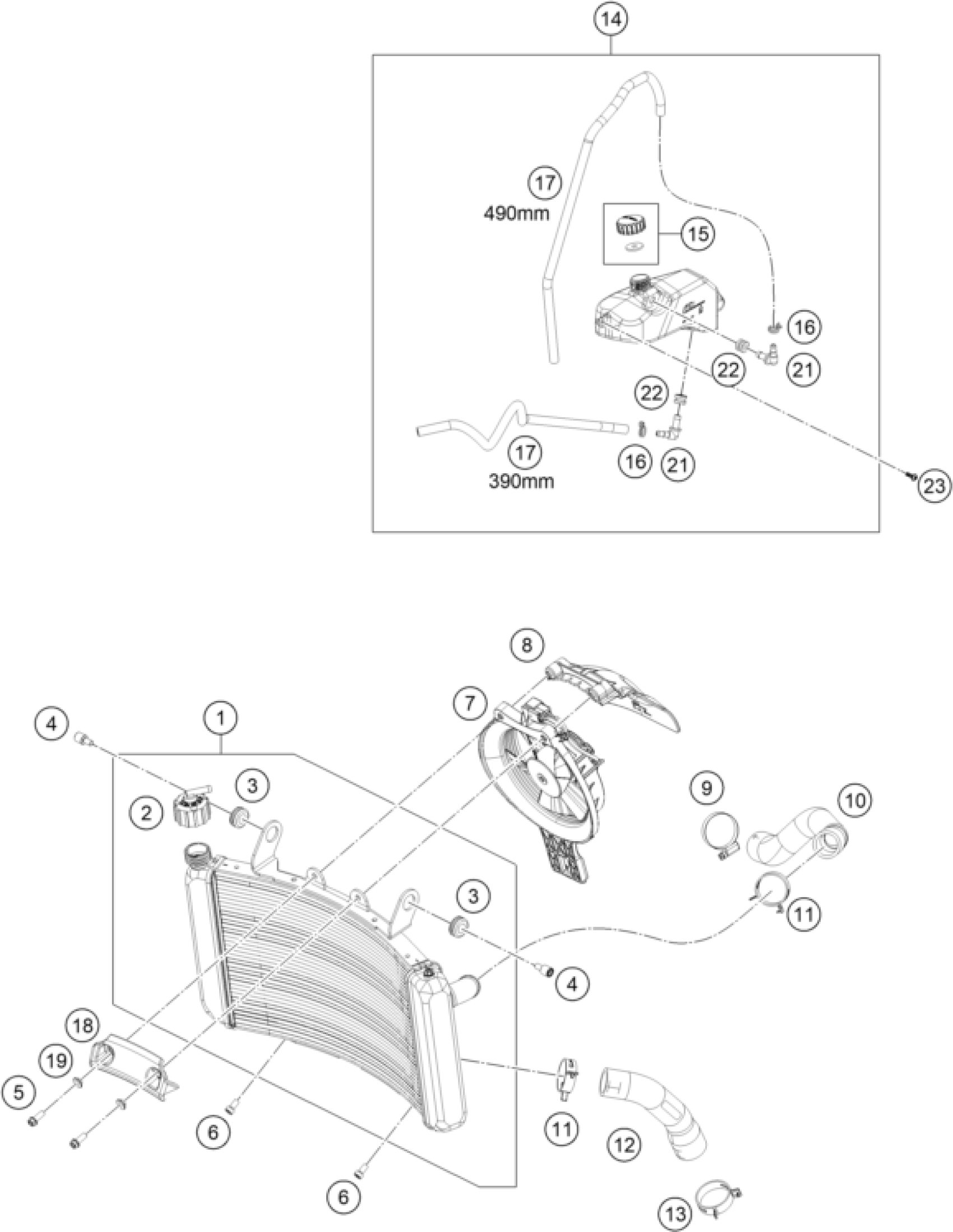

KTM 890 DUKE, black 2021 COOLING SYSTEM Diagram

#

Description

Price

1

Radiator

63635010100

Unavailable

2

RADIATOR CAP 1,4 BAR

62535009000

Unavailable

3

RUBBER SLEEVE D=12MM

41001052000

Unavailable

4

STUD BOLT M6 11X11 ISA45

69035001000

Unavailable

5

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

6

SHCS ISO 14580 M6x12

014580060126

Unavailable

7

Fan cover cpl.

64135044033

Unavailable

8

Air deflector, radiator

63635042000

Unavailable

9

Hose clamp 25-40 SGT 4

10001120000

Unavailable

10

Pre-formed hose, radiator

63635027100

Unavailable

11

CLAMP STD DN32

00049320121

Unavailable

12

Pre-formed hose, radiator

63635026000

Unavailable

13

Spring band clamp STD DN38

00049380121

Unavailable

14

Reservoir, cmpl.

63635065033

Unavailable

15

Latch, compens. tank cpl.

60335066044

Unavailable

16

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

17

HOSE 6X10 EPDM 03

60035067001

Unavailable

18

Edge protection radiator

64135032100

Unavailable

19

bushing chain protection

69004060150

Unavailable

21

Angle piece, reservoir

60035068000

Unavailable

22

RUBBER GROMMET 6X9X13MM 04

60035069000

Unavailable

23

EJOT Delta PT K40x12

0081040121

Unavailable
