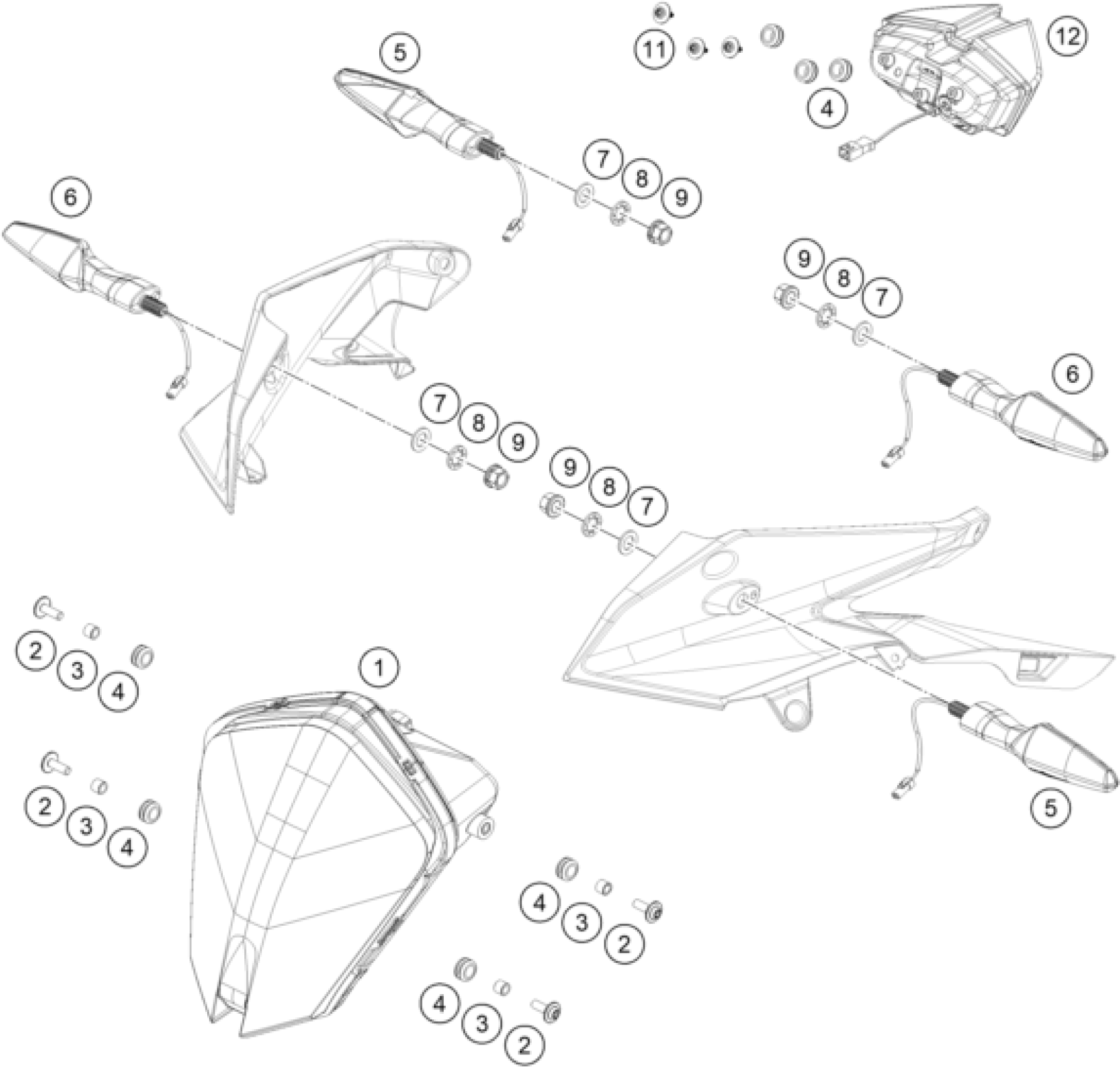

KTM 890 ADVENTURE R RALLY 2024 LIGHTING SYSTEM Diagram

#

Description

Price

1

Headlight

A61014001000

Unavailable

2

special screw M6x18-8.8 ISA30

69014017000S

Unavailable

3

Bushing 6.1X9.2X7.5 08

69014014000

Unavailable

4

rubber grommet 9x11x16x8.5 mm

60006001022

Unavailable

5

Turn signal SAE front left/rea

A61014525100

Unavailable

6

Turn signal SAE front right/re

A61014526100

Unavailable

7

Washer DIN0433-M10

0433100003

Unavailable

8

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

9

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

11

EJOT DELTA PT SCREW 45X12-Z

0081645121

Unavailable

12

Tail light

63514040000

Unavailable
