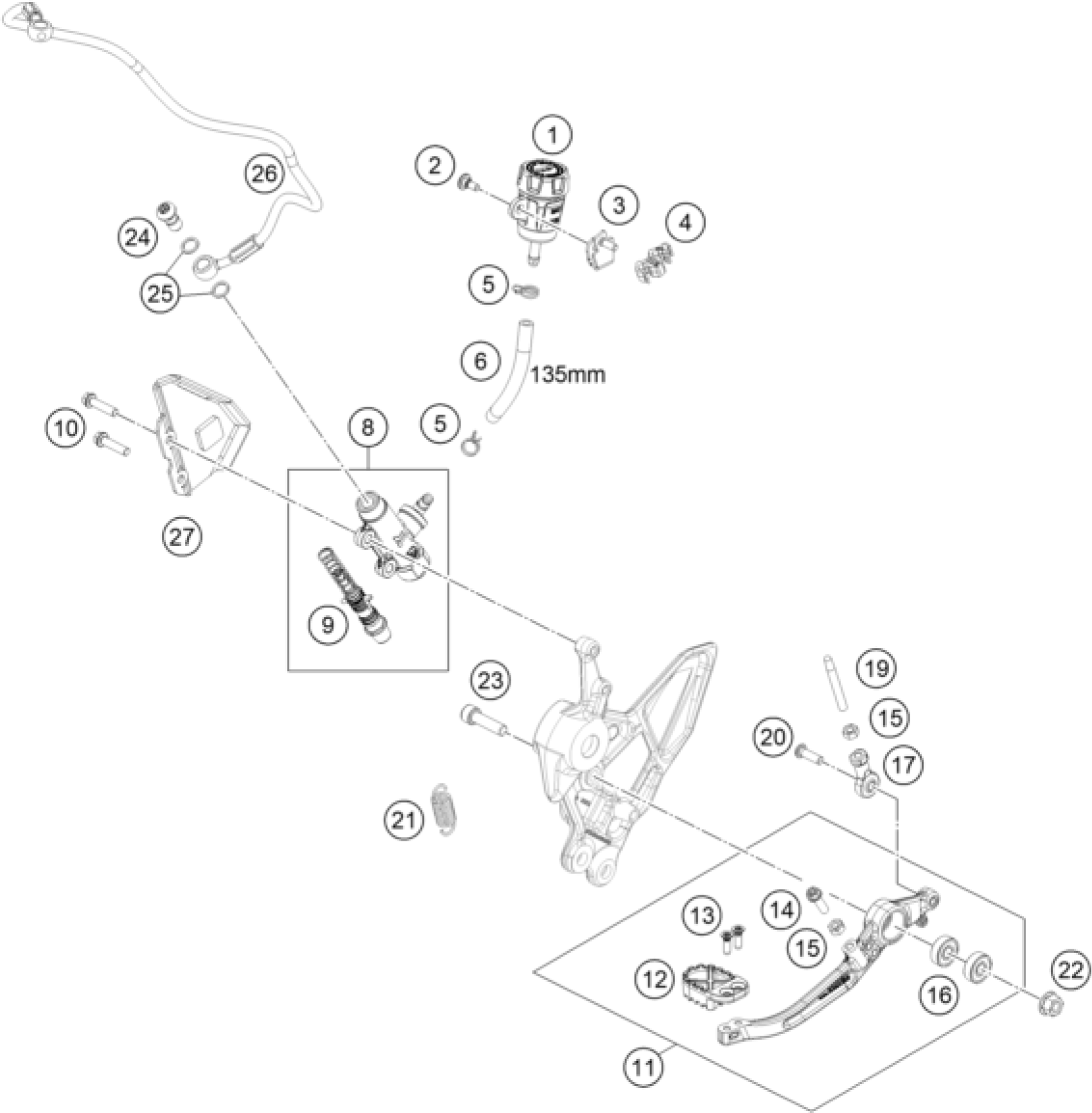

KTM 890 ADVENTURE R RALLY 2024 REAR BRAKE CONTROL Diagram

#

Description
Price

1

Reservoir assembly

64113069000

Unavailable

2

Screw for expansion tank

69013099050

Unavailable

3

Brake line holder

64113026000

Unavailable

4

Bracket ABS line dia7.5

64142046000

Unavailable

5

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

6

HOSE FOR RESERVOIR 6X1,5

69013069001

Unavailable

8

Foot master cylinder cpl. blac

6411306000030

Unavailable

9

Piston assembly

64113061000

Unavailable

10

HH collar screw M6x25 TX30

0025060256

Unavailable

11

Foot brake lever cpl. without

63513050033C1

Unavailable

12

Footbrake lever step plate

63513051000

Unavailable

13

CS screw, ISO14581-M5x16-A2-07

014581050162

Unavailable

14

HH collar screw M6x20 TX30

0025060206

Unavailable

15

Hex. nut DIN 934 M6

0934060003

Unavailable

16

Grooved ball bearing 608 2RS C

0625006087

Unavailable

17

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

Unavailable

19

PRESSURE ROD ALU 250 '90

54603068000

Unavailable

20

Oval head screw ISR M6x20-A2-7

0738060205S

Unavailable

21

Return spring for brake lever

54603062200

Unavailable

22

Self locking nut M8 10.9

54310086200

Unavailable

23

screw ISO 14579-M8x30-10.9-MK

014579080301S

Unavailable

24

banjo bolt M10x1x19.5

62113020100

Unavailable

25

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

26

Brake line, rear master cylind

63742002000

Unavailable

27

Rear master cylinder protectio

63513958044

Unavailable
