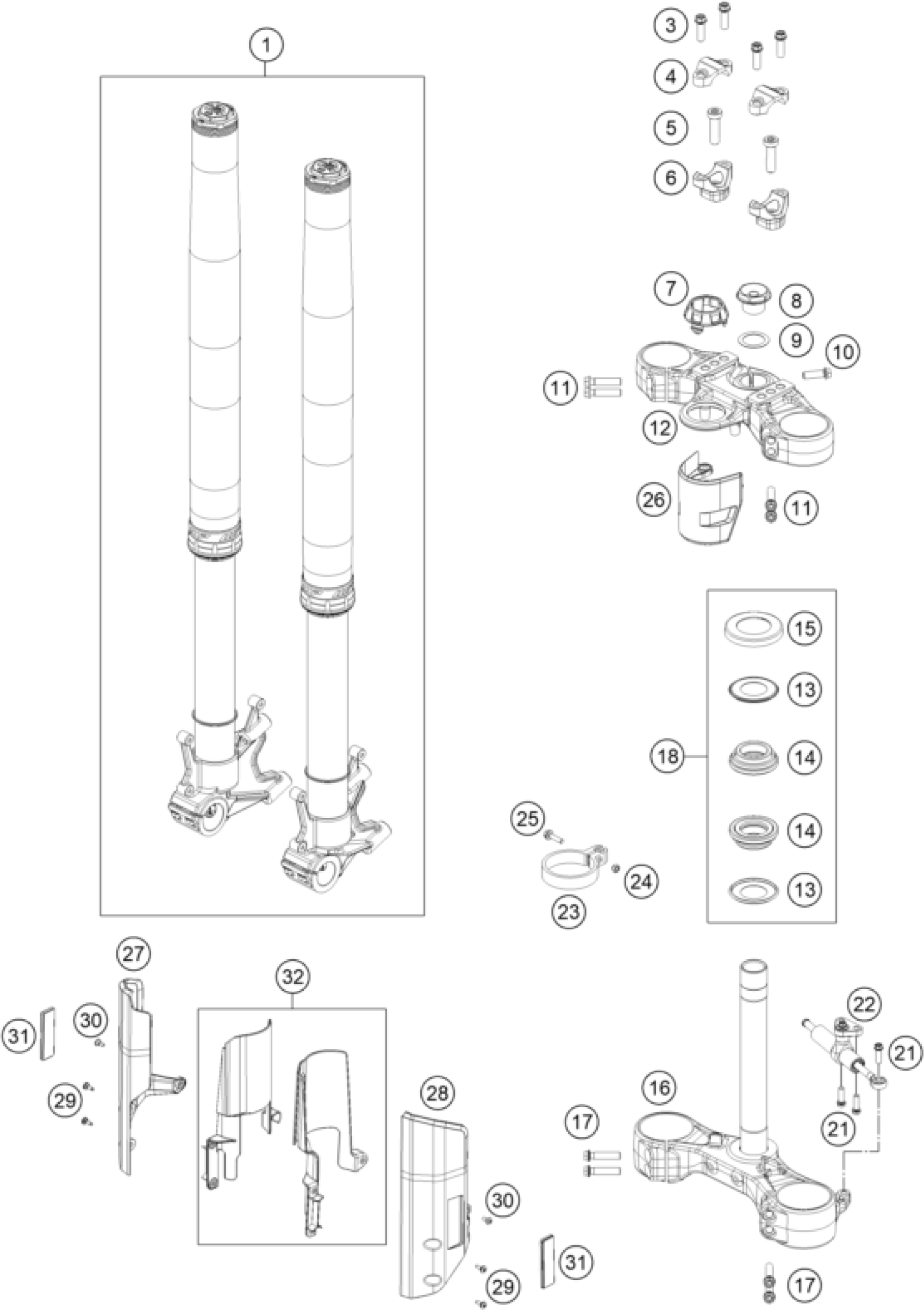

KTM 890 ADVENTURE R RALLY 2024 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Gabel KTM 890 Adventure R Rall

A610C155X403200

Unavailable

3

HH collar screw M8x25

0025080256

Unavailable

4

HANDLEBAR CLAMP 28MM

7720103800030

Unavailable

5

AH-COLLAR SCREW M10X35 ISA45

0032100356S

Unavailable

6

HANDLEBAR SUPPORT D=28 H=32 BL

5940103903230

Unavailable

7

Ignition lock cover

63501045010

Unavailable

8

Steering head screw M20x1.5 WS

54801036000C1

Unavailable

9

thrust wash DIN0988-25x35x0,5

0988253505

Unavailable

10

HH COLLAR SCREW M8X25 WS=10

0015080256S

Unavailable

11

HH collar screw M8x30

0025080306

Unavailable

12

Triple clamp top

63701034030C1

Unavailable

13

Stearing head gasket

69001084100

Unavailable

14

STEERINGHEAD KPL.17

69001181000

Unavailable

15

PROT. RING STEER. HEAD BEARING

69001086100

Unavailable

16

Bottom triple clamp cmpl.

63701032030C1

Unavailable

17

HH collar screw M8x35 TX40

0025080356

Unavailable

18

Stearing head rep. Kit

69001181010

Unavailable

21

HH COLLAR SCREW M8X25 TX40

0025080256S

Unavailable

22

Steering damper790 Adventure c

16181S55E

Unavailable

23

Clamp brake hose

63501070000

Unavailable

24

Self locking nut DIN 985 M5

0985050003

Unavailable

25

HH collar screw M5x20 TX30

0025050206

Unavailable

26

Ignition lock cover

63511066010

Unavailable

27

Fork protector right

63501093000C1C

Unavailable

28

Fork protector left

63501092000C1C

Unavailable

29

special screw M5x17

69008021060

Unavailable

30

special screw M5x12

69008021160

Unavailable

31

SIDE REFLECTOR YELLOW "CEV"

60012080100

Unavailable

32

Fork protection set

A61001994044

Unavailable
