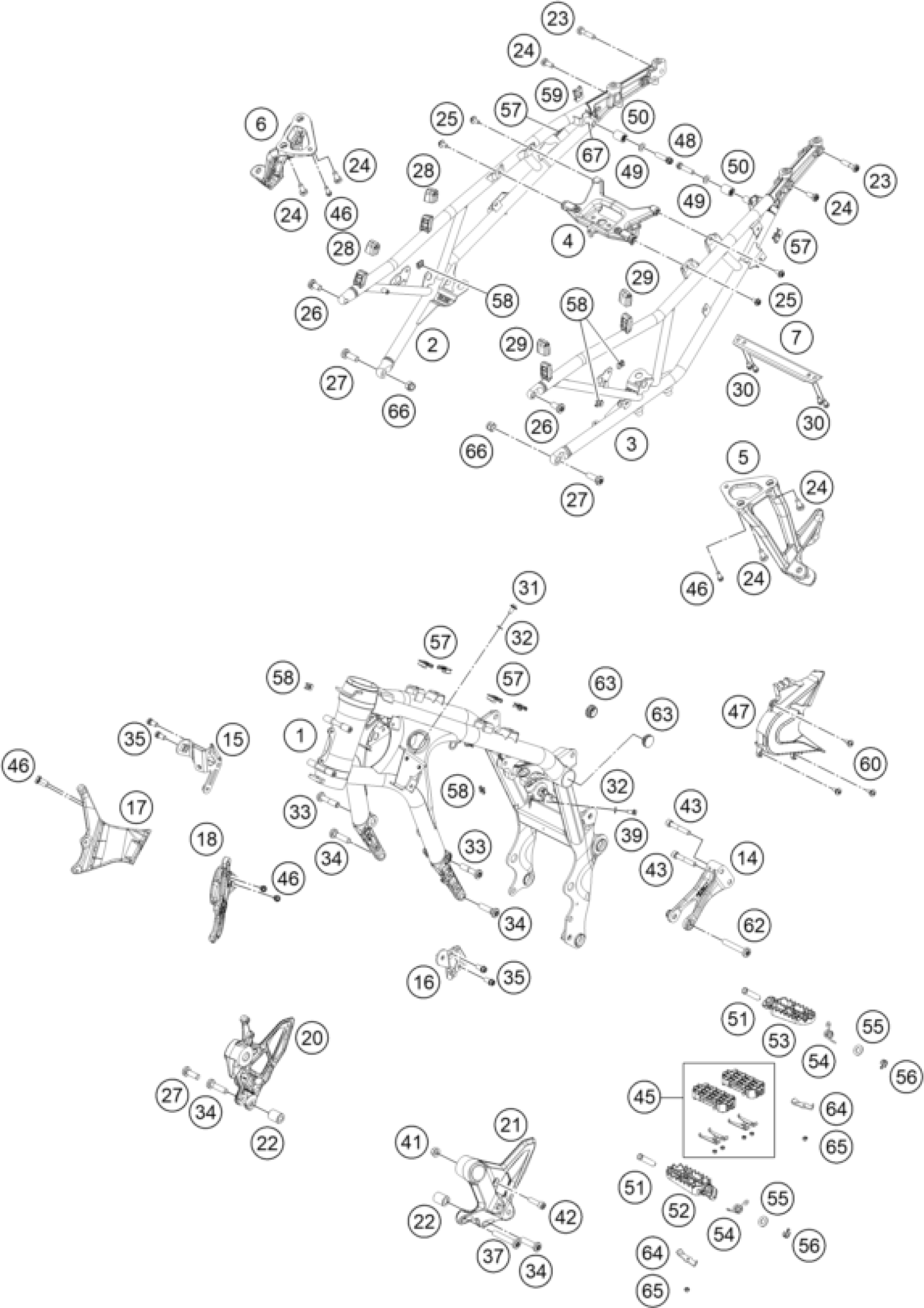

KTM 890 ADVENTURE R RALLY 2024 FRAME Diagram

#

Description
Price

1

Frame 635TB

63503101100EB

$1,834.65

2

Subframe right

63703102006C1

Unavailable

3

Subframe left

63703102005C1

Unavailable

4

Rear reinforcement

63508019050

$38.23

5

Rear footpeg bracket left

6350304800033

$207.28

6

Rear footpeg bracket right

6350304900033

$213.73

7

Cross member, black

6350300200733

$112.57

14

Engine strut black

6410301300033

$94.80

15

Skid plate frame holder, right

6350309019033

$62.08

16

Skid plate frame holder, left

6350309018033

$46.93

17

mask carrier element right

A61008006000C1

$104.43

18

mask carrier element left

A61008005000C1

$104.43

20

Footpeg bracket front, right,

63703039066C1

$206.81

21

Footpeg bracket front, left, c

63703038066C1

$176.99

22

Bushing 10,4x20x25

08000010025U0

$8.03

23

SCREW M8X35 ISA45 SS

0035080356S

$5.23

24

SHCS M8x20 TX45

0035080206S

$5.32

25

HH Collar screw M6x13 TX30 SL

0024060136S

$1.49

26

Hex.screw M10x20 ISA45 MK

0035100209S

$2.05

27

ISA screw M10x35 ISA45

0035100356S

$5.88

28

Retain. brack., seat cowl pad

63503002093

$2.05

29

Rubber seat cowl pad

63503002090

$2.05

30

Hex collar screw M6x12 ISA30 s

0025060126S

$1.49

31

HH collar screw M6x20 TX30

0025060206S

$2.05

32

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

33

ISA screw M10x45 ISA45

0035100456S

$5.70

34

ISA collar screw M10x40 ISA45

0035100409S

$6.35

35

HH collar screw M8x16 TX40 SL

0025080166S

$3.08

37

AH-COLLAR SCREW M10X60 ISA45

0035100609S

$9.34

39

HH COLLAR SCREW M8X16 TX40

0025080166

$4.11

41

Self locking nut M8 10.9

54310086200

$3.08

42

screw ISO 14579-M8x30-10.9-MK

014579080301S

$2.05

43

Cap head bold M8x50 ISR 45

014579080506S

$5.23

46

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

47

Sprocket Cover

A61003096000

$16.45

48

AH-COLLAR SCREW M8X35 ISA45

0035080356

$4.11

49

washer DIN 125 A -8.4

0125080003

$1.49

50

RUBBER SEAT-CONTACT SURFACE

60307048000

$5.70

51

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

52

FOOTREST RIGHT RALLY 07

76203041250

$108.17

53

FOOTREST LEFT RALLY 07

76203040250

$115.56

54

FOOTREST SPRING L/S & R/S

54603041000

$5.23

55

washer DIN 125 A 10.5

0125100003

$2.05

56

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

57

clip nut M6

54603048100

$4.11

58

RANGE CHANGE METAL NUT M5 INOX

54603048600

$2.05

59

RANGE CHANGE METAL NUT M8

54603048000

$4.11

60

special screw M5x12

69008021160

$4.11

62

ISA screw, M10x65 ISA45

0035100656S

$7.00

63

Frame locking cap

64103088000

$2.05

64

CLOSING PANEL FRONT L/S R/S 03

60003044010

$6.07

65

Self locking nut DIN 985 M5

0985050003

$2.05

66

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

67

BUSHING 8.4X12X21.5

61407049000

$7.47

45

FOOTPEG INSERT CPL.

76203940044

Unavailable
