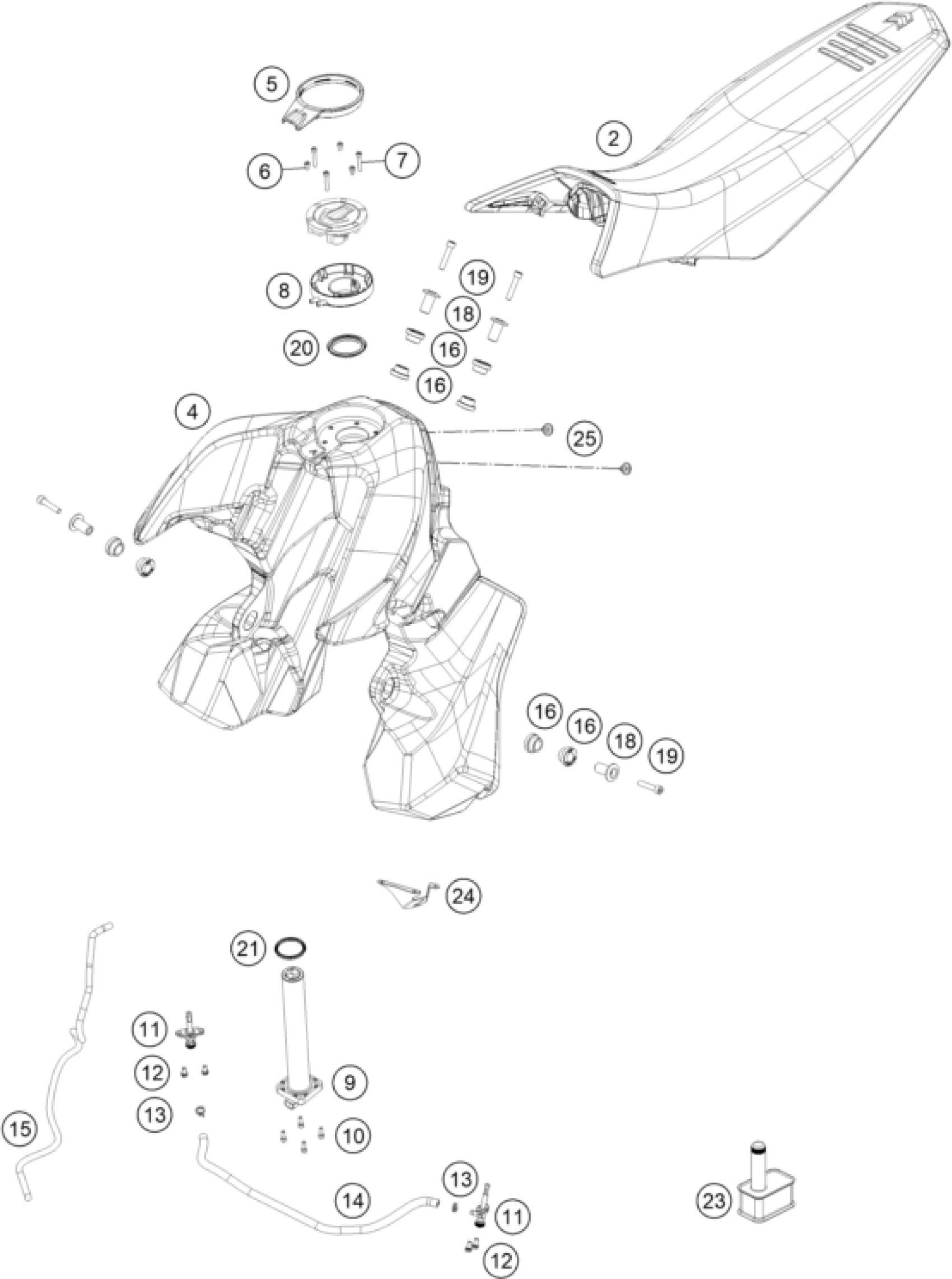

KTM 890 ADVENTURE R RALLY 2021 TANK, SEAT Diagram

#

Description
Price

2

Seat

63507941000EB

Unavailable

4

Fuel tank

63507113000HC

Unavailable

5

Fuel tank fairing

63507058000

Unavailable

6

SHCS DIN 912 M5x8

0912050083

Unavailable

7

AH SCREW DIN0912-M 5X30

0912050303

Unavailable

8

Fuel filler cap

63507008050

Unavailable

9

Fuel lever sensor

63507080200

Unavailable

10

AH collar screw DIN 912 M5x16

0912050163

Unavailable

11

Fuel cock cmpl.

58507003200

Unavailable

12

HH collar screw M6x12 TX30

0025060126

Unavailable

13

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

14

Interconnection hose

63507016000

Unavailable

15

Tank overflow hose 718mm

63515027100

Unavailable

16

collar bushing, front tank hol

61007065000

Unavailable

18

collar bushing, bearing, outsi

61007060000

Unavailable

19

AH collar screw DIN0912 M8x40

0912080403

Unavailable

20

gasket tank insert

21007008151

Unavailable

21

Gasket fuel lever sensor

60307080090

Unavailable

23

Motorex Fuel Stabilizer 125ml

00001000015

Unavailable

24

Cover fuel pump

63507087010

Unavailable

25

Seat screw M6x11.5 ISA30

0900000601200

Unavailable
