Description

Price

1

Rotor

63539005200

$268.34

2

Screw M12x1.5x55

0000151205500

$3.08

3

HH collar screw M6x30 TX30

0025060306S

$3.08

4

Stator

63539004200

$117.99

5

generator line bracket

60039040020

$3.08

6

dowel sleeve 6x8x11.5

59030023000

$1.49

7

ignition cover gasket

63530040000

$17.94

8

Ignition cover R2R

6353080200041

Unavailable

9

o-ring 24.00x2.50 Viton

07700240251

$3.08

10

threaded plug M24x1.5 PA 6.6

6003009400030

$4.11

11

HH collar screw M6x35 TX30

0025060356

$3.08

12

HH collar screw M6x30 TX30

0025060306

$3.08

13

pulse generator KOKUSAN 4K3-A/

59039034000

$89.28

14

HH Collar Screw M5x16 ISA30 SS

0025050166S

$1.49

15

HH collar screw M6x16 TX30

0025060166

$3.08

16

stick coil

63539006000

$110.60

17

spark plug

77839093000

$22.71

18

Sticker ignition/clutch cover

63530898000

Unavailable

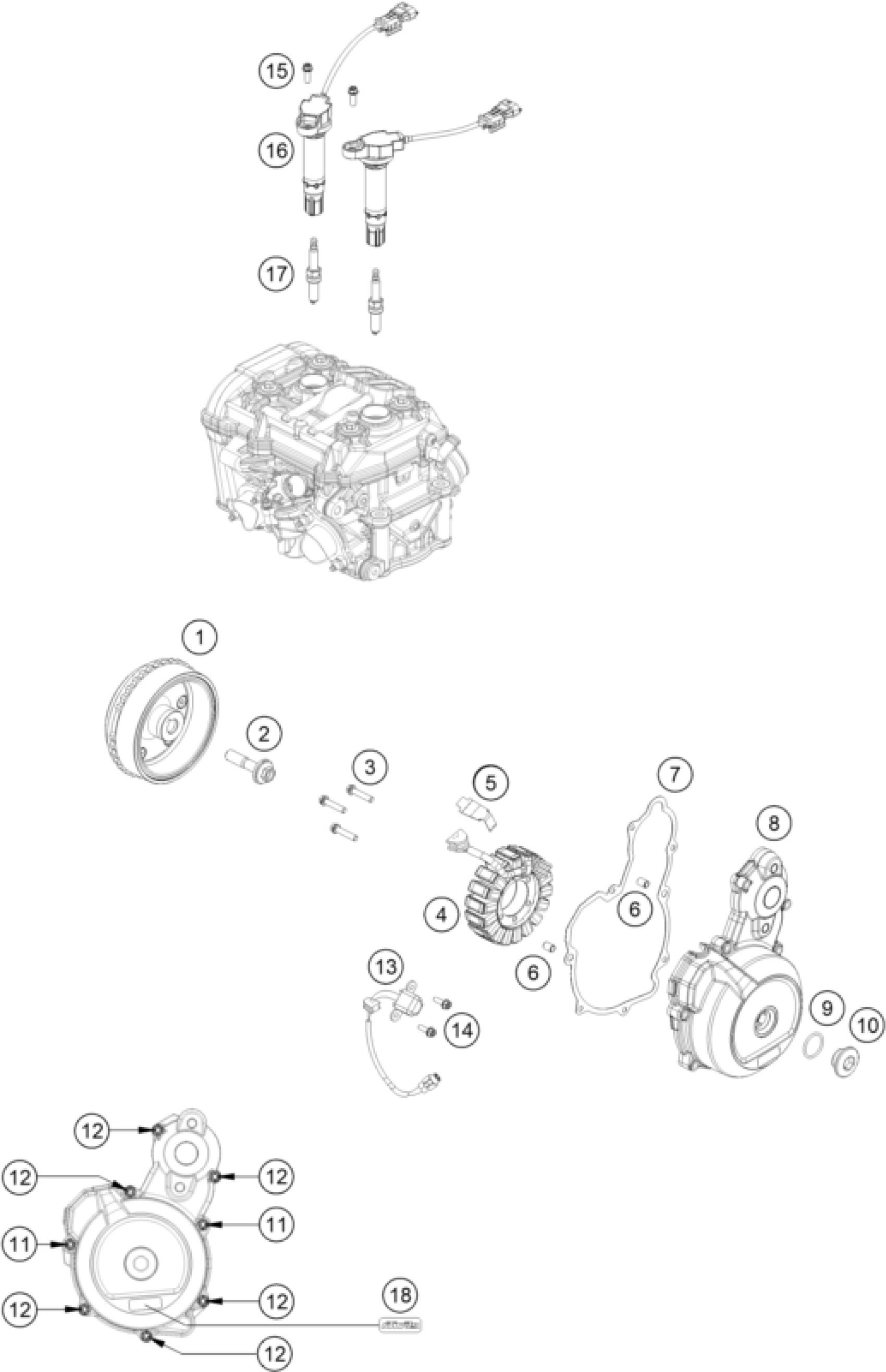

KTM 890 ADVENTURE R 2023 IGNITION SYSTEM Diagram

Rotor

Screw M12x1.5x55

HH collar screw M6x30 TX30

Stator

generator line bracket

dowel sleeve 6x8x11.5

ignition cover gasket

Ignition cover R2R

o-ring 24.00x2.50 Viton

threaded plug M24x1.5 PA 6.6

HH collar screw M6x35 TX30

HH collar screw M6x30 TX30

pulse generator KOKUSAN 4K3-A/

HH Collar Screw M5x16 ISA30 SS

HH collar screw M6x16 TX30

stick coil

spark plug

Sticker ignition/clutch cover
