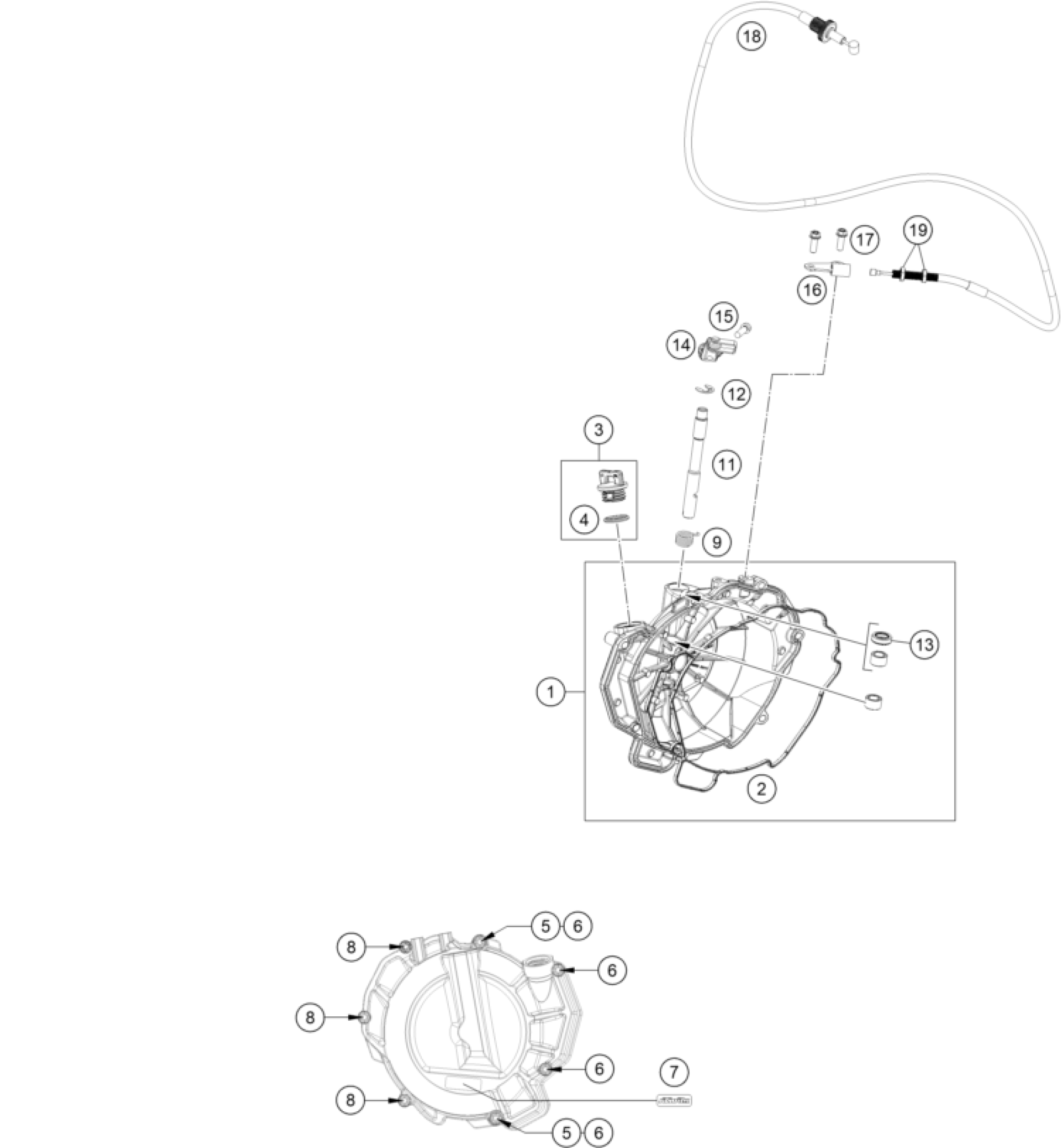

KTM 890 ADVENTURE R 2023 CLUTCH COVER Diagram

#

Description
Price

1

Clutch cover cmpl.

6353000126641

Unavailable

2

Form ring, clutch cover

63530025300

Unavailable

3

oil plug cpl. M24x3

58030020100

Unavailable

4

O-RING 19,00X3,00 NBR

0770191015

Unavailable

5

dowel sleeve 6x8x11.5

59030023000

Unavailable

6

HH collar screw M6x35 TX30

0025060356

Unavailable

8

HH collar screw M6x25 TX30

0025060256

Unavailable

9

clutch release lever spring

63532048003

Unavailable

11

clutch release shaft

63532049000

Unavailable

12

retaining washer DIN 6799 - 9

0799090003

Unavailable

13

Shaft seal ring 32x45x6.5

0760122060

Unavailable

14

Release lever assembly

63532048233

Unavailable

15

Cyl. screw ISO 14580 M6x20 SS

014580060206S

Unavailable

16

Cable retaining bracket

63532052100

Unavailable

17

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

18

Clutch cable

64102090000

Unavailable

19

HEXAGON NUT DIN 934 M8

0934080006

Unavailable

7

Sticker ignition/clutch cover

63530898000

Unavailable
