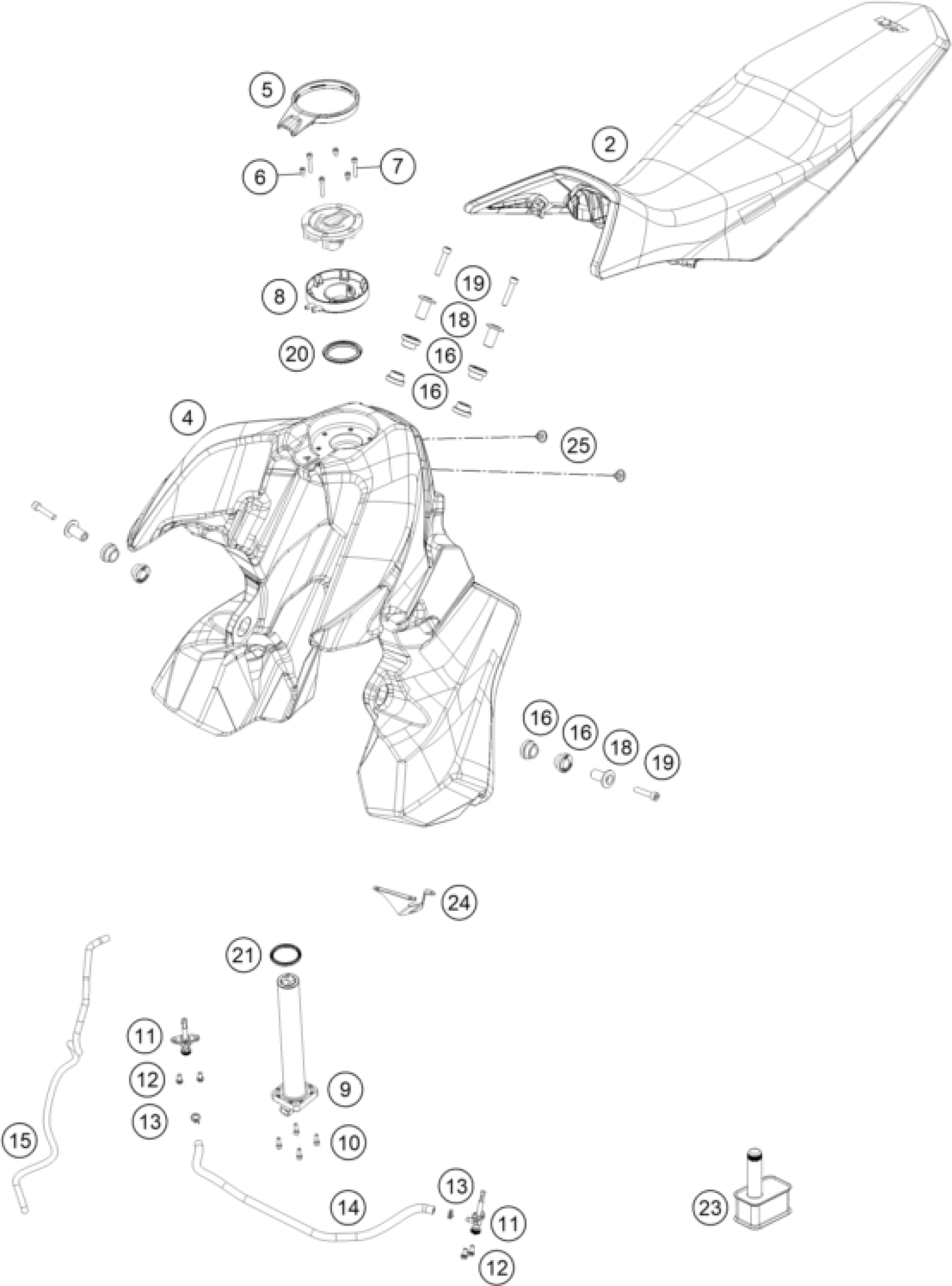

KTM 890 ADVENTURE R 2021 TANK, SEAT Diagram

Rider´s seat 800 Adv. R

63507140100

$211.68

Fuel tank

63507113000C1

$1,581.73

Fuel tank fairing

63507058000

$7.85

SHCS DIN 912 M5x8

0912050083

$1.49

AH SCREW DIN0912-M 5X30

0912050303

$1.49

Fuel filler cap

63507008050

$13.46

Fuel lever sensor

63507080200

$140.15

AH collar screw DIN 912 M5x16

0912050163

$1.49

Fuel cock cmpl.

58507003200

$26.55

HH collar screw M6x12 TX30

0025060126

$3.08

CLAMP YDNAC 10128 12MM

58031005000

$3.08

Interconnection hose

63507016000

$21.03

Tank overflow hose 718mm

63515027100

$35.71

collar bushing, front tank hol

61007065000

$7.85

collar bushing, bearing, outsi

61007060000

$9.90

AH collar screw DIN0912 M8x40

0912080403

$2.05

gasket tank insert

21007008151

$14.02

Gasket fuel lever sensor

60307080090

$50.67

Motorex Fuel Stabilizer 125ml

00001000015

$19.81

Cover fuel pump

63507087010

$16.82

Seat screw M6x11.5 ISA30

0900000601200

$4.11
