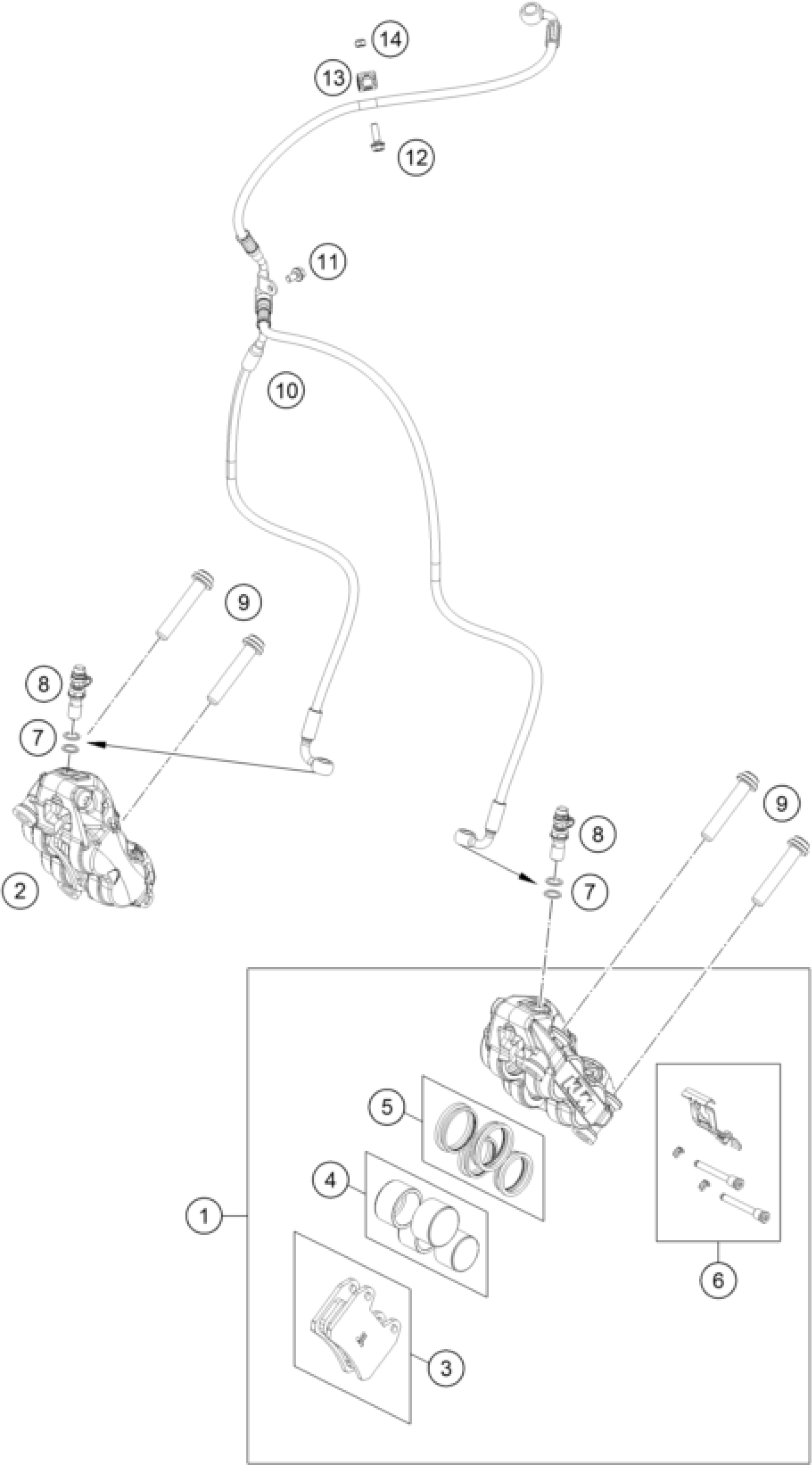

KTM 890 ADVENTURE R 2021 FRONT BRAKE CALIPER Diagram

#

Description

Price

1

Brake caliper, front left

63713115000

$370.81

2

Brake caliper, front right

63713116000

$370.81

3

Front brake pad

63713030000

$44.31

4

Piston set

63513019000

$46.55

5

Seal set

63613021000

$17.57

6

Retaining spring set

64113017000

$47.96

7

sealing ring DIN 7603 10x14x1

0603100141

$2.05

8

BLEEDER SCREW CPL. 05

62513020000

$27.48

9

AH collar screw M10x1.25x55 s-

0035100559S

$3.08

10

Front brake line brake caliper

63542103000

$199.43

11

HH collar screw M5x10 TX30

0025050106

$1.49

12

HH collar screw M5x16 TX30

0025050166

$2.05

13

SUPPORT FOR BRAKE HOSE M5

60113146000

$3.08

14

Self locking nut DIN 985 M5

0985050003

$2.05
