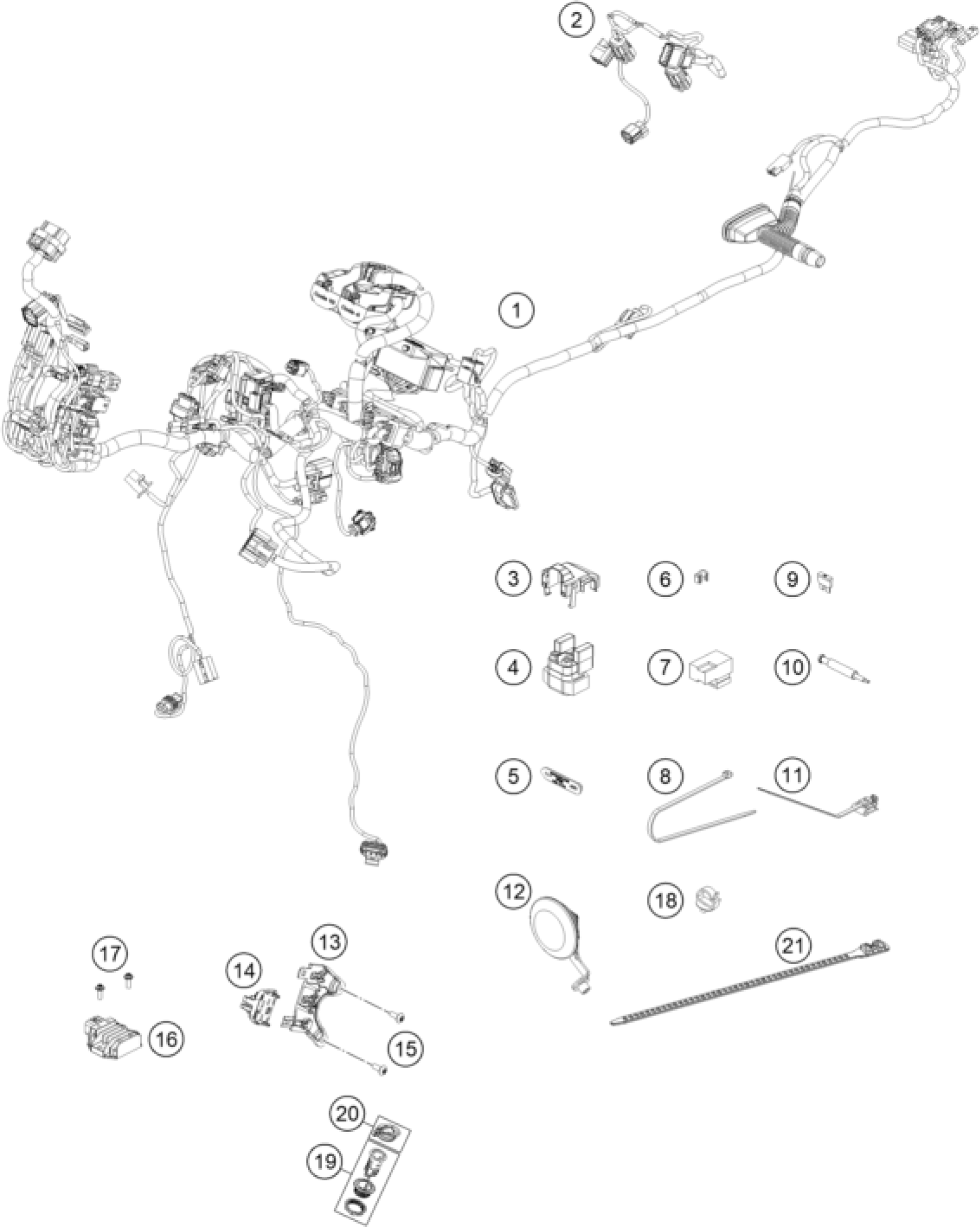

KTM 890 ADVENTURE, black 2024 WIRING HARNESS Diagram

#

Description
Price

1

Main wiring harness

A61011475000

$873.56

2

Engine wiring harness

63711085000

$65.16

3

Cover flap, starter relay

64111058110

$3.08

4

Starter relay

76211058000

$79.19

5

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

5

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

6

BAR SPACER 4/7 BLACK

60111094100

$5.79

7

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

8

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

8

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

8

Cable tie 200/4.6mm black

44011076200

Unavailable

9

Plug-in fuse, big 30A

58011109130

$2.05

10

Temperatur sensor

61111018100

$31.59

11

Cable holder, attachable

64111059020

$3.08

12

DC HORN 12V

76011060100

$20.66

13

CCU control unit support

A61011083000

$12.43

14

Front connector support

A61011083050

$11.49

15

Oval head screw M5x14 TX25

58605083014

$3.08

16

VOLTAGE REGULATOR

60311034000

$177.55

17

HH collar screw M6x20 TX30

0024060206

$3.08

19

Power socket 12V

60711042000

$55.81

20

Lid 12V-socket

60311042050

$7.38

21

Cable tie flexible 7x260

0330000726000

$1.86

18

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11
