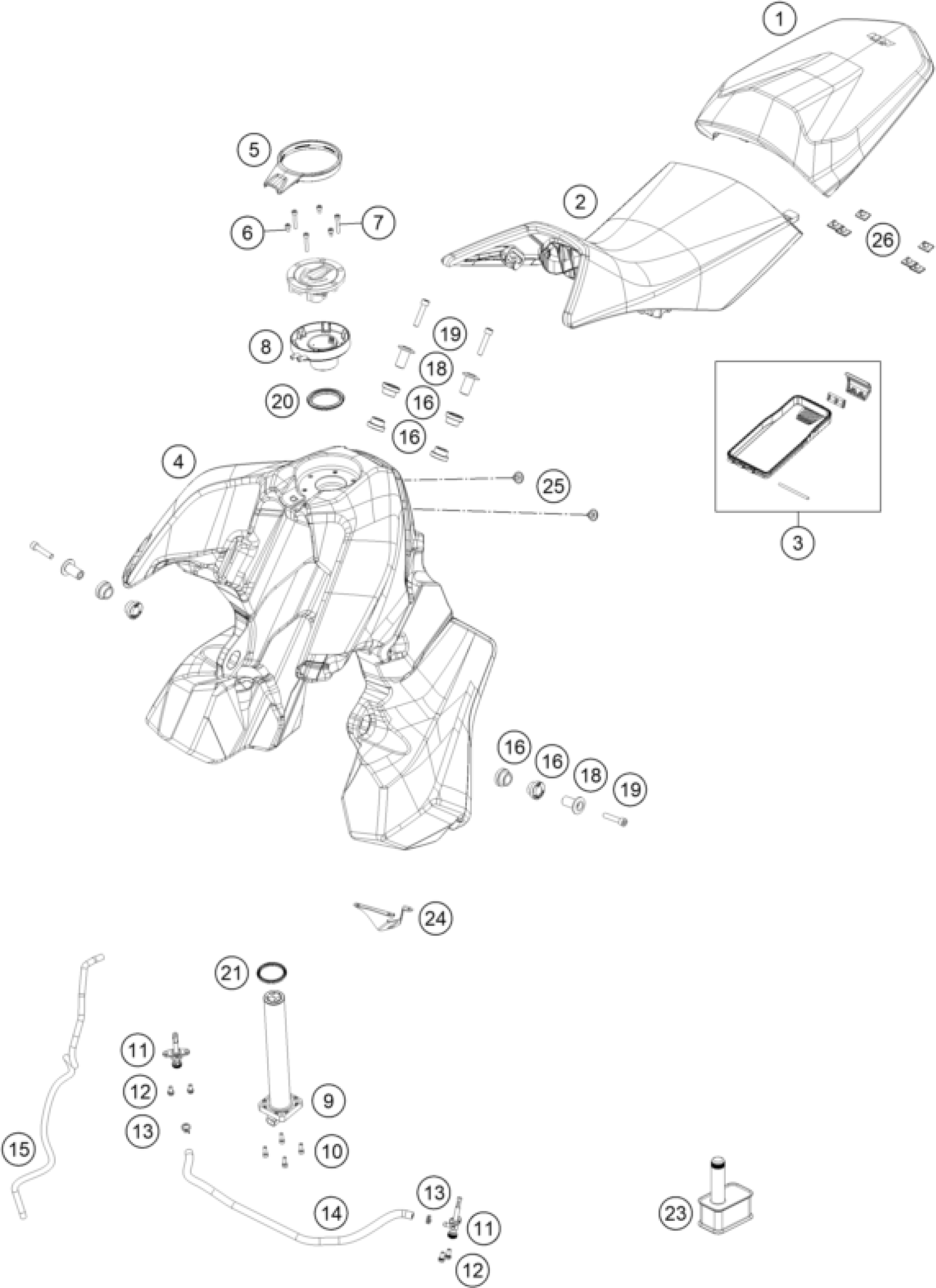

KTM 890 ADVENTURE, black 2024 TANK, SEAT Diagram

#

Description
Price

1

Passenger seat

A61007047000C1A

$157.45

2

Seat

A61007040000C1

$160.16

3

Tech-Box Kit

63507047044

$60.58

4

Fuel tank

63507613000C1

$1,426.05

5

Fuel tank fairing

63507058000

$7.85

6

SHCS DIN 912 M5x8

0912050083

$1.49

7

AH SCREW DIN0912-M 5X30

0912050303

$1.49

8

Fuel tank filler neck

A61007108050

$13.46

9

Fuel lever sensor

63507080200

$140.15

10

AH collar screw DIN 912 M5x16

0912050163

$1.49

11

Fuel cock cmpl.

58507003200

$26.55

12

HH collar screw M6x12 TX30

0025060126

$3.08

13

CLAMP YDNAC 10128 12MM

58031005000

$3.08

14

Interconnection hose

63507016000

$21.03

15

Tank overflow hose 718mm

63515027100

$35.71

16

collar bushing, front tank hol

61007065000

$7.85

18

Bearing sleeve, external

6100716000001

$9.90

19

AH collar screw DIN0912 M8x40

0912080403

$2.05

20

gasket tank insert

21007008151

$14.02

21

Gasket fuel lever sensor

60307080090

$50.67

23

Motorex Fuel Stabilizer 125ml

00001000015

$19.81

24

Cover fuel pump

63507087010

$16.82

25

Seat screw M6x11.5 ISA30

0900000601200

$4.11

26

Isolation pad

77307040041

$2.05
