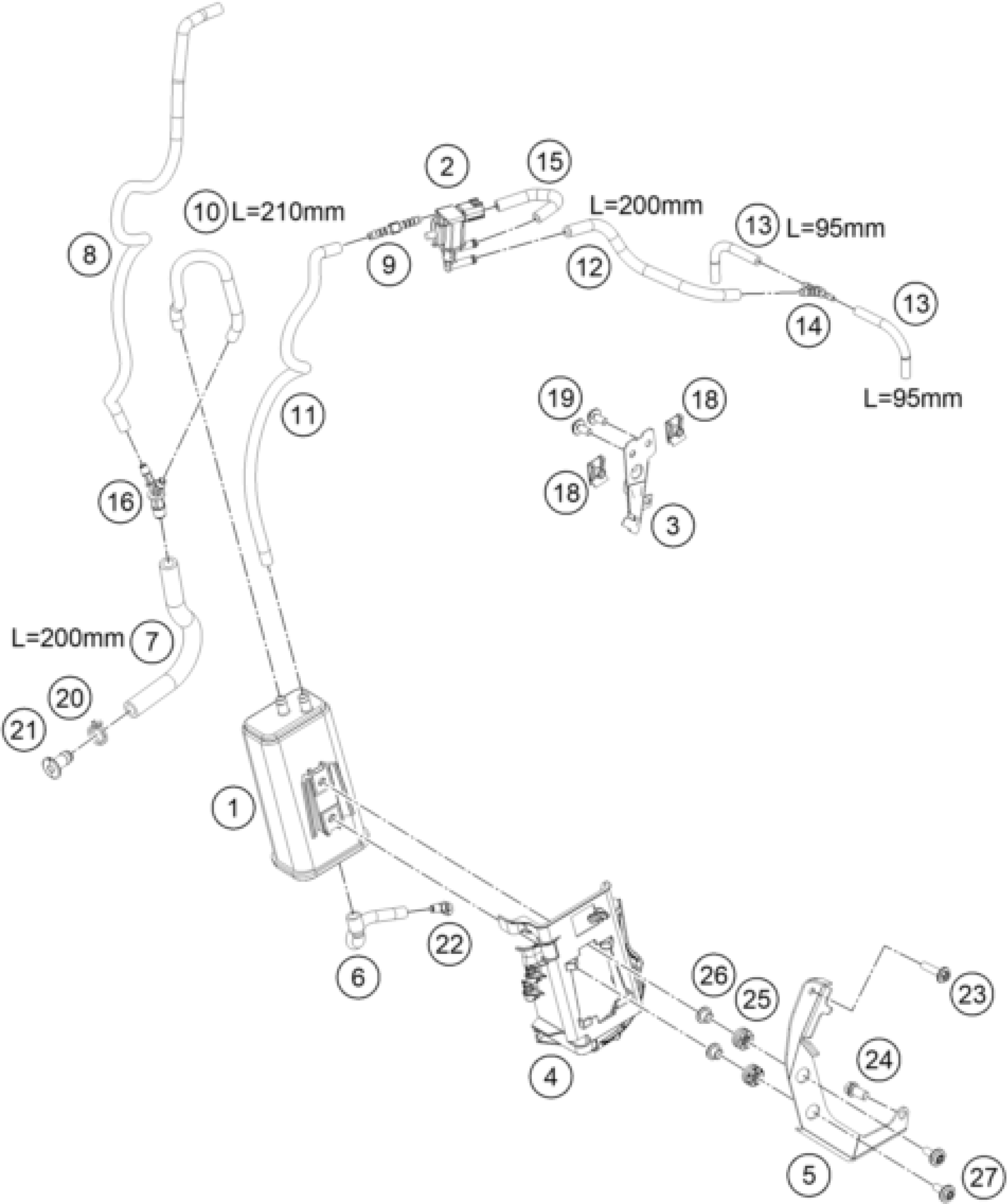

KTM 890 ADVENTURE, black 2024 EVAPORATIVE CANISTER Diagram

#

Description
Price

1

CARBON CANISTER

75015001200

$66.66

2

Purge valve

A62415015000

$18.41

3

Retain. bracket evap. canis. v

A61015126015

$71.61

4

Hose clip ACF

63515003010

$31.03

5

Retaining bracket ACF

6351500201033

$50.58

6

Pre-formed hose, evap. can., b

A61015021000

$12.61

7

HOSE EPA D=10/16 L=2000MM

78015119000

$244.12

8

Fuel tank vent hose 688mm

63515024100

$30.57

10

HOSE EPA D=6/10 L=2000MM

78015019000

$62.64

11

Evaporative canister hose - pu

63515028100

$27.85

12

HOSE EPA D=6/10 L=2000MM

78015019000

$62.64

13

HOSE EPA D=4/8 L=2000MM

78015021000

$49.92

14

Hose connection nozzles

64115026000

$4.11

16

Y-CONNECTOR YS 6-10-6

61315028100

$8.41

18

clip nut M6

54603048100

$4.11

19

HH collar screw M6x13 TX30

0024060136

$3.08

20

YDNAC-clamp 10173 (16MM)

58431082100

$1.49

21

Screw plug ACF

61315026100

$21.87

22

Angle piece for overrun

63503098030

$2.05

23

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

24

HH collar screw M6x16 TX30

0025060166

$3.08

25

Damper 40 SHORE

62142041100

$4.11

26

Collar bushing 6,5x9x18x8.5

61342041100

$1.49

27

HH collar screw M6x20 TX30

0024060206S

$1.49

9

HOSE CONNECTION STRAIGHT

69015019010

$5.23

15

HOSE PURGE VALVE

61415021000

$25.05
