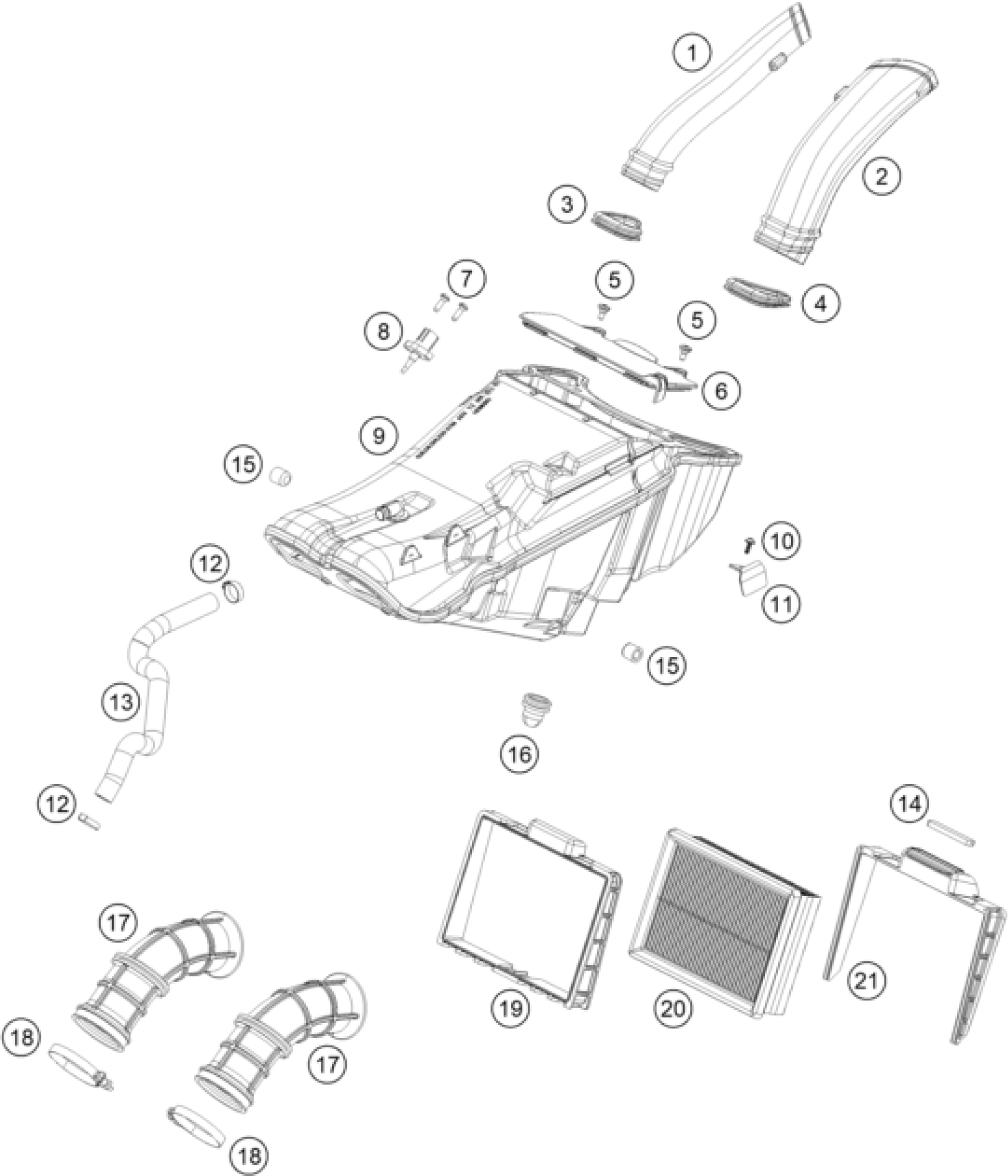

KTM 890 ADVENTURE, black 2024 AIR FILTER Diagram

#

Description
Price

1

Intake duct, right

63506041000

Unavailable

2

Intake duct, left

63506040000

Unavailable

3

Intake port gasket right

63506040150

Unavailable

4

Intake port gasket left

63506041150

Unavailable

5

Special screw M5x12

69008121160

Unavailable

6

Air filter box cover

63506002100

Unavailable

7

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

8

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

Unavailable

9

Air filter box

63506001200

Unavailable

10

EJOT PT screw K50x12

0081050121

Unavailable

11

Cable bracket air filter box

63506002160

Unavailable

12

VARIABLE ONE-EAR CLAMP 19,8MM

00050198706

Unavailable

13

Pre-formed hose engine breathe

63530087000

Unavailable

15

rubber grommet

76006014000

Unavailable

16

Rubber grommet slotted

50206020200

Unavailable

17

Intake channel

63506026100

Unavailable

18

Hose clip GEMI 58

77236048000

Unavailable

19

Filter clamp frame

63506116000

Unavailable

20

Air filter

A61006015000

Unavailable

21

Filter clamp wedge

63506117000

Unavailable

14

foam rubber 60x10

63506117010

Unavailable
