Description

Price

1

Skid plate

A6100309000001

$353.52

2

Tank protector right

A61007025020

$25.92

3

Tank protector left

A61007025010

$25.92

4

Front skid plate linkage

6350309005033

$214.20

6

HH collar screw M6x10 TX30

0025060106

$3.08

7

HH collar screw M6x8 TX30

0025060086

$2.05

8

Collar screw M8x40 ISA40 SS

0025080406S

$5.23

10

Collar bushing 6.5X9X18X8.5

61342041000

$1.49

11

DAMP. COMPONENT ABS MODUL

62142041000

$4.11

12

SEAT RUBBER 10 MM

75007046010

$3.08

13

Silent block 20x12 M6x10/M6x8

63503190017

$7.56

14

special screw M6x12x3

83008000012

$3.08

15

TANK RUBBER

60307020000

$24.40

16

RANGE CHANGE METAL NUT M6 INOX

54603048300

$5.23

17

Collar screw M6x22-8.8 ISA30

69014117000

$2.05

5

Lower Alu Skidplate Support

63503090016

$51.60

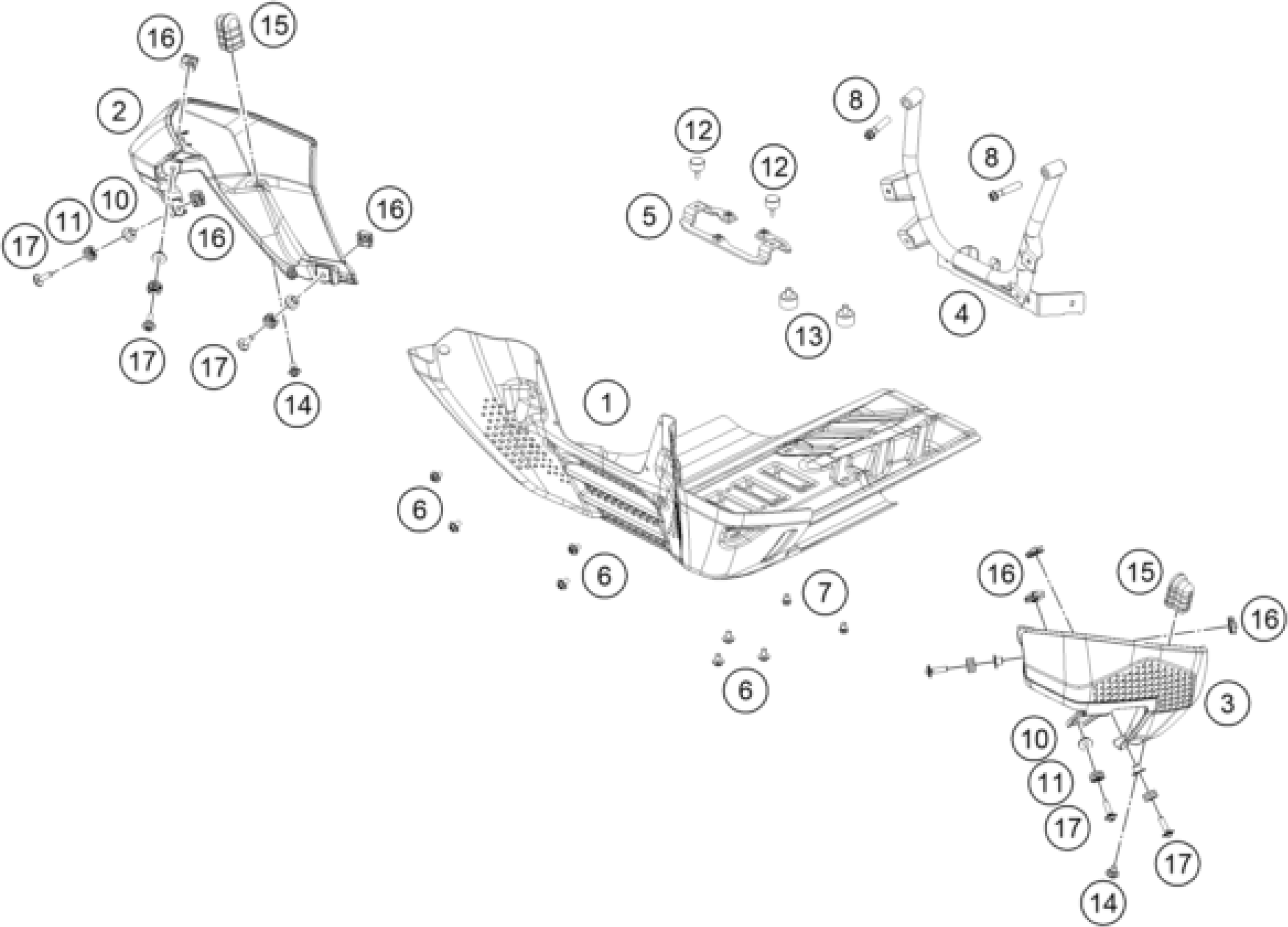

KTM 890 ADVENTURE, black 2023 ENGINE GUARD Diagram

Skid plate

Tank protector right

Tank protector left

Front skid plate linkage

HH collar screw M6x10 TX30

HH collar screw M6x8 TX30

Collar screw M8x40 ISA40 SS

Collar bushing 6.5X9X18X8.5

DAMP. COMPONENT ABS MODUL

SEAT RUBBER 10 MM

Silent block 20x12 M6x10/M6x8

special screw M6x12x3

TANK RUBBER

RANGE CHANGE METAL NUT M6 INOX

Collar screw M6x22-8.8 ISA30

Lower Alu Skidplate Support
