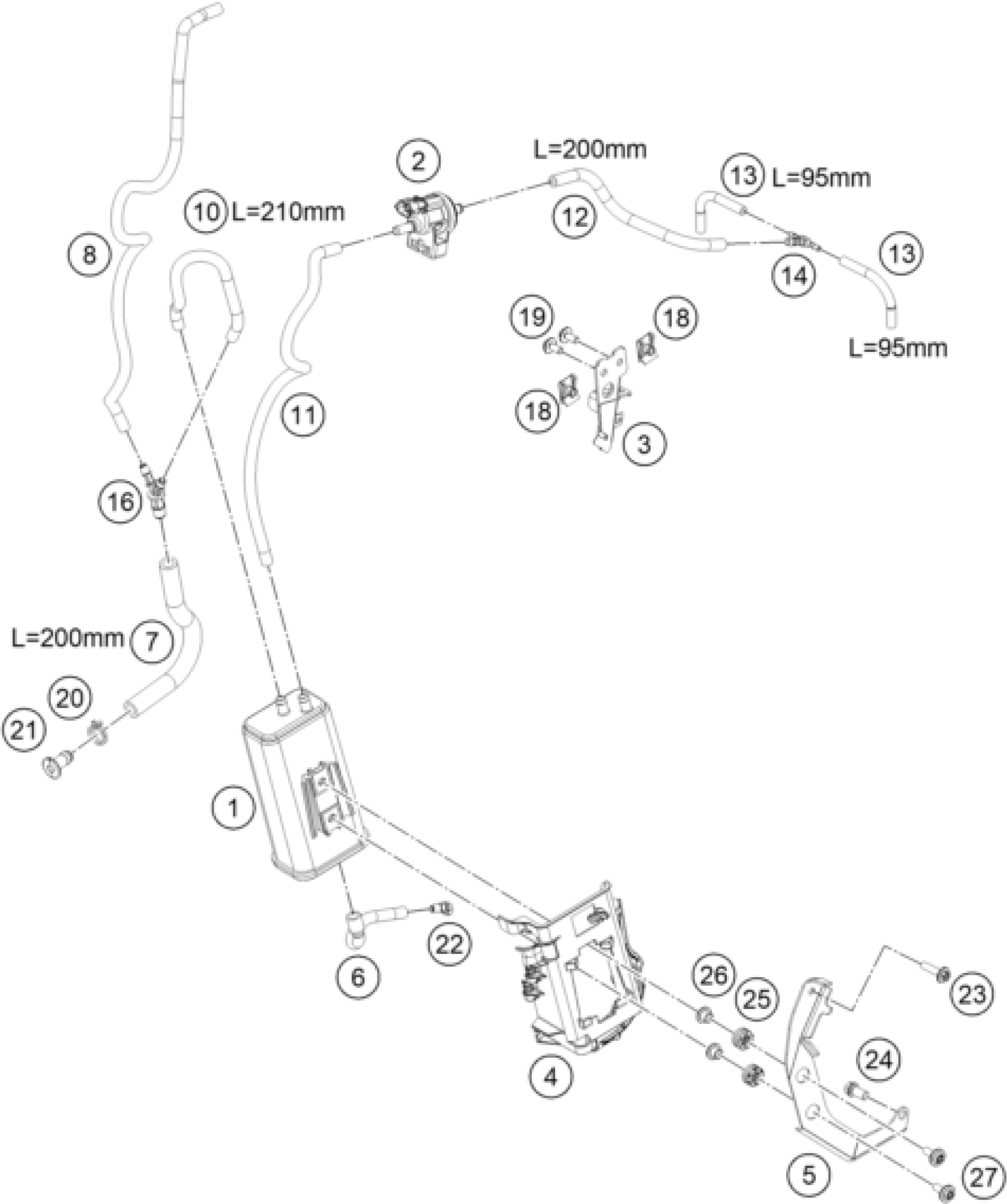

KTM 890 ADVENTURE, black 2022 EVAPORATIVE CANISTER Diagram

#

Description
Price

1

CARBON CANISTER

75015001200

Unavailable

2

EVAP valve

76015015000

Unavailable

3

Retaining bracket ACF valve cp

63515026010

Unavailable

4

Hose clip ACF

63515003010

Unavailable

5

Retaining bracket ACF

6351500201033

Unavailable

6

ventilation hose evap.can.

63515021000

Unavailable

7

HOSE EPA D=10/16 L=2000MM

78015119000

Unavailable

8

Fuel tank vent hose 688mm

63515024100

Unavailable

10

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

11

Hose ACF purge valve

63515028000

Unavailable

12

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

13

HOSE EPA D=4/8 L=2000MM

78015021000

Unavailable

14

Hose connection nozzles

64115026000

Unavailable

16

Y-CONNECTOR YS 6-10-6

61315028100

Unavailable

18

clip nut M6

54603048100

Unavailable

19

HH collar screw M6x13 TX30

0024060136

Unavailable

20

YDNAC-clamp 10173 (16MM)

58431082100

Unavailable

21

Screw plug ACF

61315026100

Unavailable

22

Angle piece for overrun

63503098030

Unavailable

23

HH COLLAR SCREW M6X25 TX30

0024060256

Unavailable

24

HH collar screw M6x16 TX30

0025060166

Unavailable

25

DAMP. COMPONENT ABS MODUL

62142041000

Unavailable

26

collar bushing 6.1x9.2x15x8.5x

69014015000

Unavailable

27

SPECIAL SCREW M6X18 ISA30 08

69014017000

Unavailable
