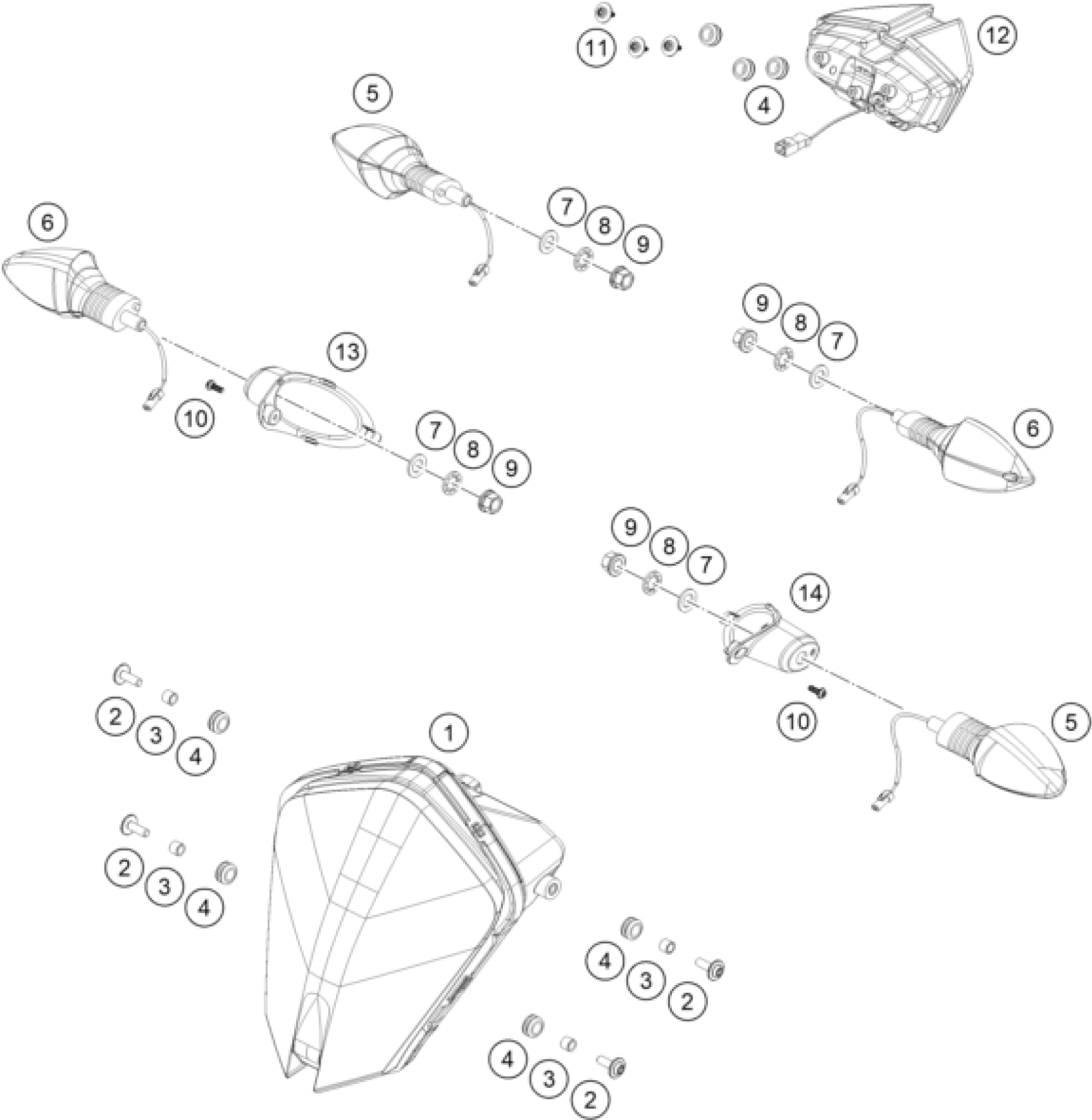

KTM 890 ADVENTURE, black 2021 LIGHTING SYSTEM Diagram

Headlight

63714001000

$855.24

special screw M6x18-8.8 ISA30

69014017000S

$2.05

Bushing 6.1X9.2X7.5 08

69014014000

$3.08

rubber grommet 9x11x16x8.5 mm

60006001022

$2.05

FLASHER CPL.FRONT L/S REAR R/S

60114025000

$30.00

FLASHER CPL.FRONT R/S REAR L/S

60114026000

$30.00

Washer DIN0433-M10

0433100003

$1.49

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

EJOT Delta PT K40x12

0081040121

$3.08

EJOT DELTA PT SCREW 45X12-Z

0081645121

$1.49

Tail light

63514040000

$169.60

Right flasher adapter

63514011090

$10.37

Left flasher adapter

63514010090

$10.37
