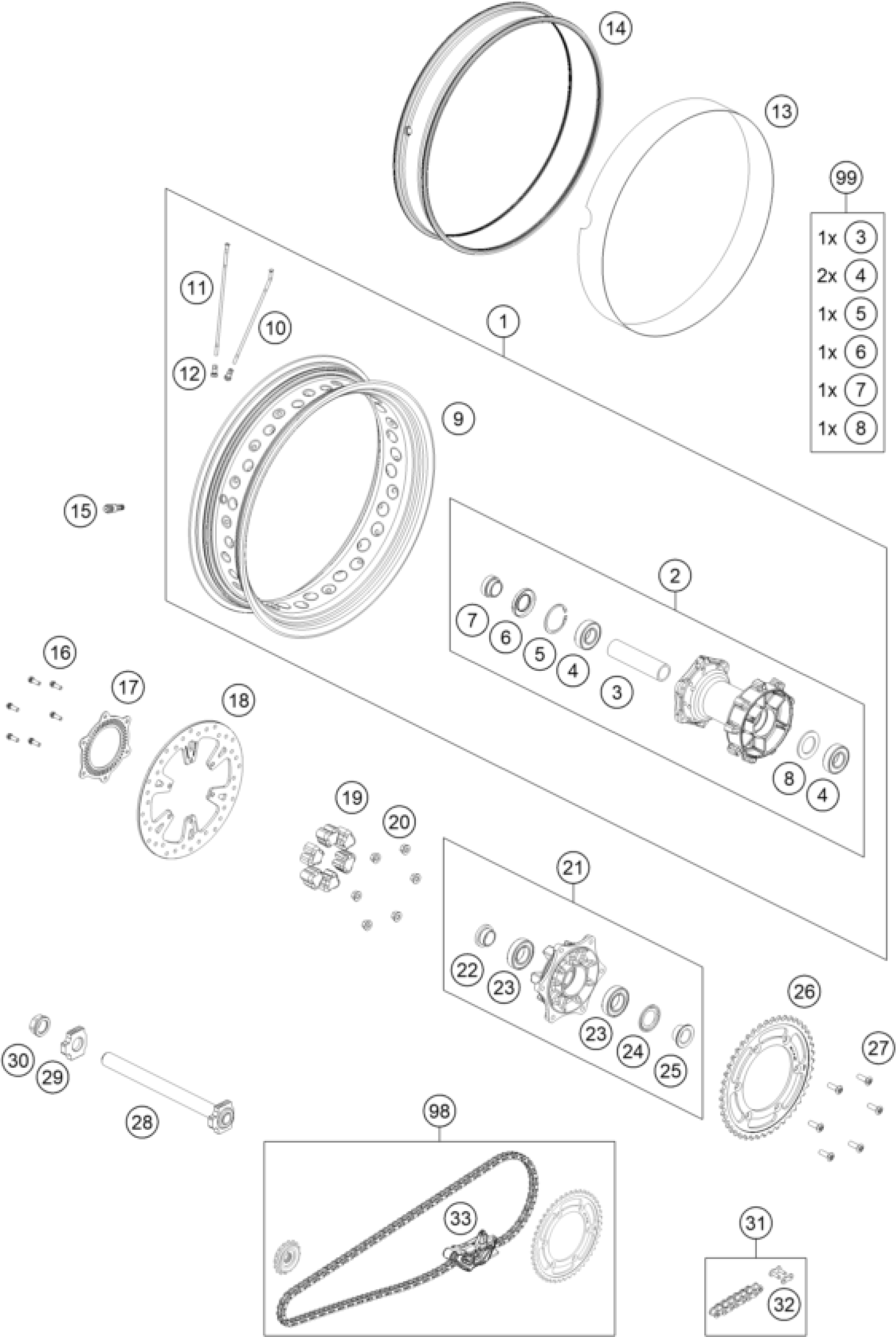

KTM 890 ADVENTURE, black 2021 REAR WHEEL Diagram

#

Description
Price

1

Rear wheel cmpl. 4.5x18"

63710001044C1

Unavailable

2

Rear hub cmpl.

60310010244C1

Unavailable

3

Bearing spacing tube L=124.8mm

60010011000

Unavailable

4

Grooved ball bear. 6205-2RSHC3

0625062052

Unavailable

5

CIRCLIP DIN0472-52X2

0472052200

Unavailable

6

Radial shaft seal 30X52X7

0760305271

Unavailable

7

SPACER BUSHING REAR WHEEL R/S

60310013000

Unavailable

8

Spacer ring 03

60010015000

Unavailable

9

Rim 4,5x18'' TL bl.w.sticker

6031007010033A

Unavailable

10

SPOKE 5/4.37/M5

60310071000

Unavailable

11

SPOKE 5/4.37/M5

60310171000

Unavailable

12

Spoke nipple Quadrax M5

60310072200

Unavailable

13

RIM BAND 18''

60310073100

Unavailable

14

GASKET RUBBER 4.5''X18''

60310177100

Unavailable

15

VALVE

60309176000

Unavailable

16

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

Unavailable

17

Phonic wheel ABS, rear

60142021100

Unavailable

18

Brake disc rear

63510060100

Unavailable

19

Rubber damping block 91

54610459000

Unavailable

20

Hex. nut DIN EN 1661 M8 WS13

06923080003

Unavailable

21

Sprocket wheel carrier cmpl. b

7501005004433

Unavailable

22

SPACER BUSH. SPR. SUPP. IN. 06

60110014000

Unavailable

23

BALL BEARING 6006 DDU2CG23S6NM

0625060060

Unavailable

24

NILOS RING 6006AV

60110016000

Unavailable

25

SPACER BUSH. SPROCKET SUPP. 06

60110012000

Unavailable

26

Sprocket 45-t steel

75010051045

Unavailable

27

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

28

Rear axel cmpl.

69010181044

Unavailable

29

Chain tension adjuster, right,

60010084000

Unavailable

30

Collar nut M25X1.5 WS=32 05

61010086000

Unavailable

31

chain DID 118 roll

76910065118

Unavailable

32

Rivet link chain DID 520 VP2-T

76910066000

Unavailable

33

chain X-Ring 118 links with ch

63510067118

Unavailable

98

Drive set 16/45

00050002100

Unavailable

99

REAR WHEEL REP. KIT ADV 13-14

60310015000

Unavailable

1

Rear wheel cpl. 4,5X18''

6031000124433A

Unavailable

2

REAR HUB CPL.

6031001014433

Unavailable
