Description

Price

1

Silencer

63505183000

Unavailable

2

Bushing 8.5X11X29

61305069000

$19.07

4

RANGE CHANGE METAL NUT M5 INOX

54603048600

$2.05

5

Shape disc Alu

60405069000

$3.08

6

COUN.-SUNK SCREW M8X50 ISA10.9

0019080506

$2.05

7

Heat protection black cmpl.

63505111000C1

$143.79

8

DAMPING ELEMENT SILICON

27005011011

$8.50

9

SCREW TORX M5X10

78105081010

$2.05

11

Manifold gasket

69005105005

$7.47

12

Exhaust clamp tube 50 mm

63605058000

$35.80

13

Pre-muffler

63605050000

$1,852.97

14

HH COLLAR SCREW M8X35 TX40

0025080356S

$3.08

15

collar bushing 8.5x12x23.5x10

58405050065

$5.23

16

damp. component silicone grey

54305068100

$8.31

17

Manifold

63605007000

$775.11

18

self-locking nut M8 Cu

51010086100

$3.08

20

Exhaust gasket

64105005000

$5.23

21

stud screw 835 M8x25 - 10.9

63505015000

$2.05

24

O2 Sensor LSF 4

63541090000

$138.46

25

O2 Sensor LSF 4

63541190000

$138.46

26

Collar bushing, 8.5x12x23.5x11

0800000901200

$3.08

27

RANGE CHANGE METAL NUT M8

54603048000

$4.11

28

HH COLLAR SCREW M8X35 TX40

0025080356S

$3.08

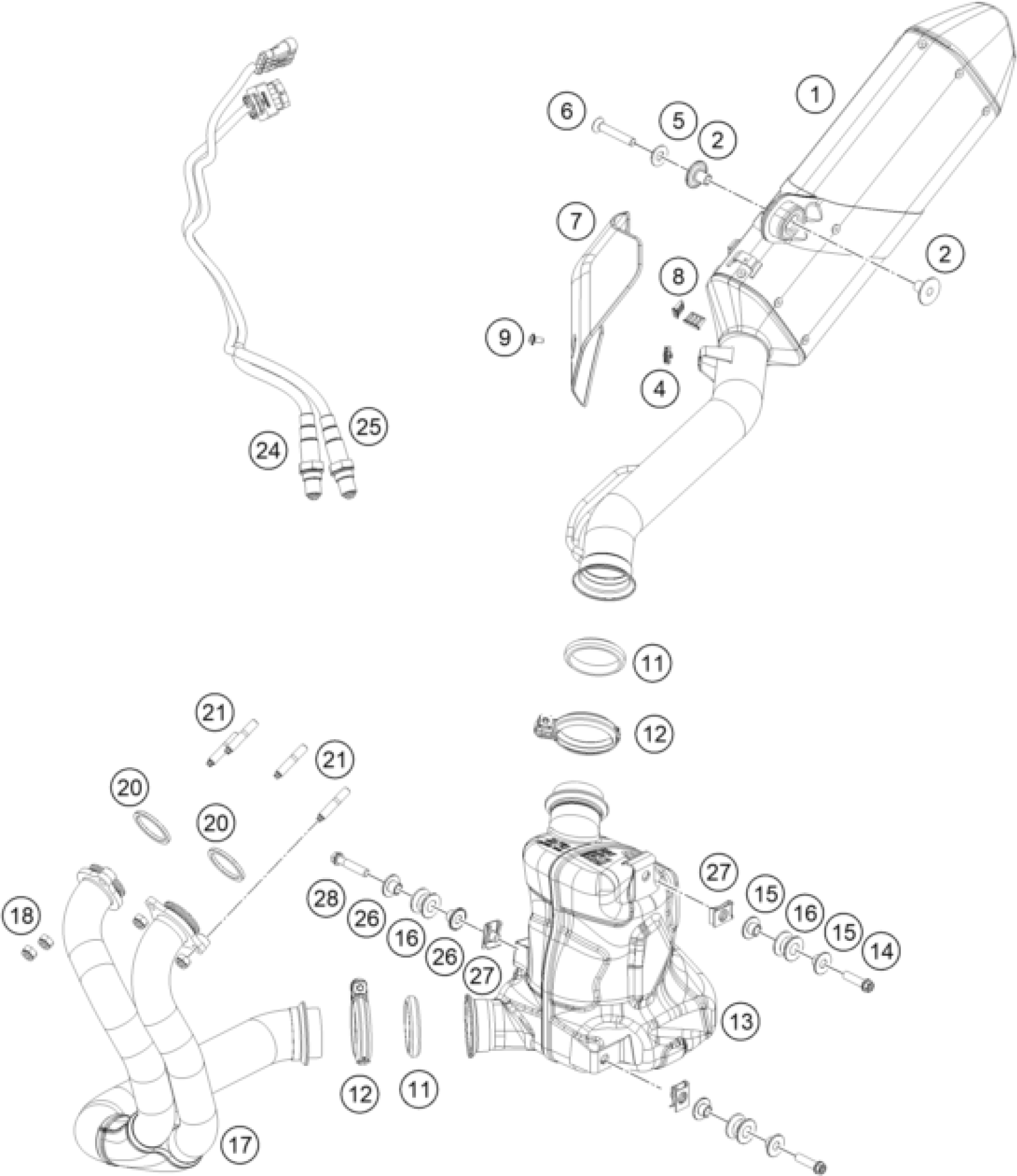

KTM 890 ADVENTURE, black 2021 EXHAUST SYSTEM Diagram

Silencer

Bushing 8.5X11X29

RANGE CHANGE METAL NUT M5 INOX

Shape disc Alu

COUN.-SUNK SCREW M8X50 ISA10.9

Heat protection black cmpl.

DAMPING ELEMENT SILICON

SCREW TORX M5X10

Manifold gasket

Exhaust clamp tube 50 mm

Pre-muffler

HH COLLAR SCREW M8X35 TX40

collar bushing 8.5x12x23.5x10

damp. component silicone grey

Manifold

self-locking nut M8 Cu

Exhaust gasket

stud screw 835 M8x25 - 10.9

O2 Sensor LSF 4

O2 Sensor LSF 4

Collar bushing, 8.5x12x23.5x11

RANGE CHANGE METAL NUT M8

HH COLLAR SCREW M8X35 TX40
