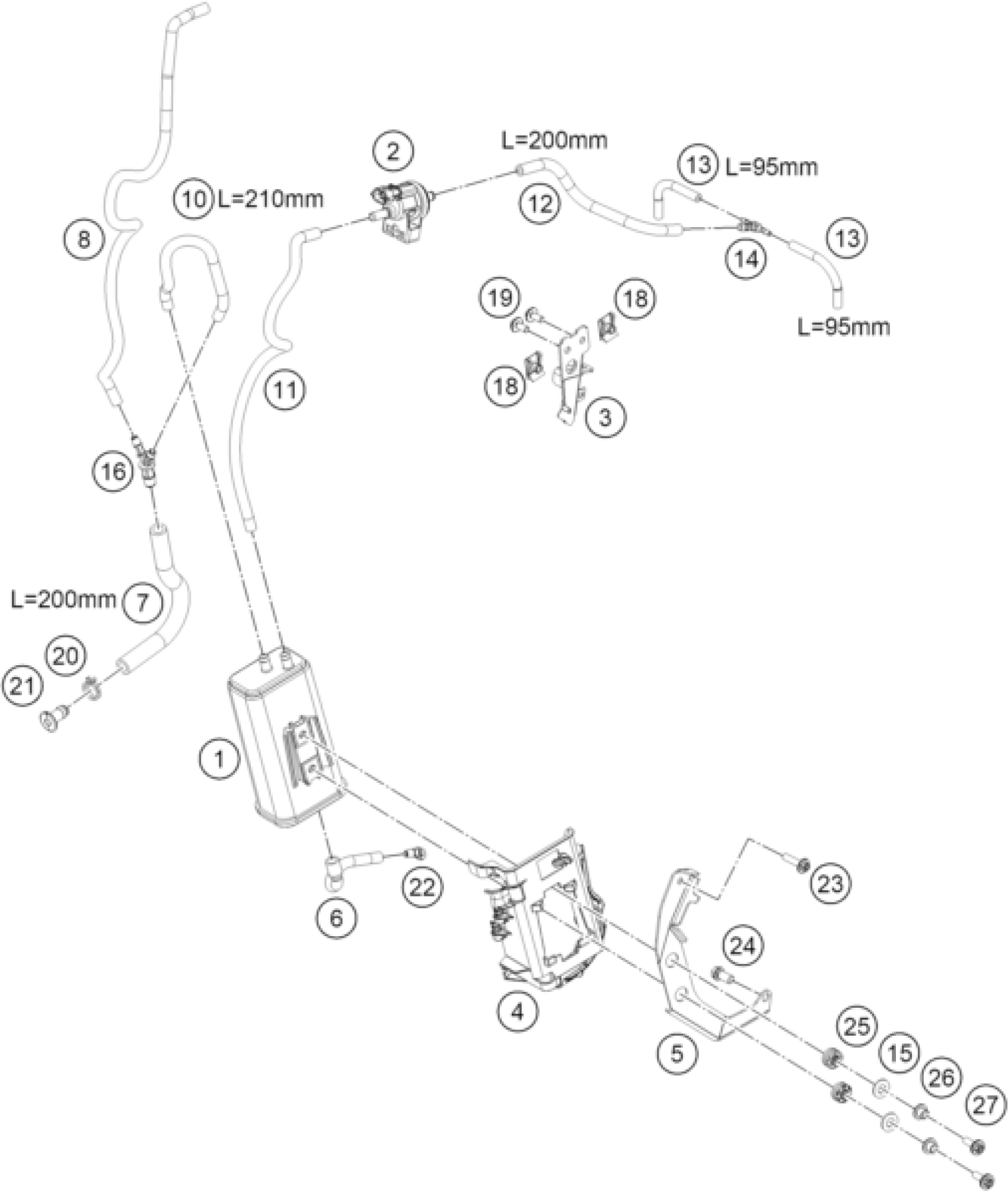

KTM 890 ADVENTURE, black 2021 EVAPORATIVE CANISTER Diagram

#

Description
Price

1

CARBON CANISTER

75015001200

$66.66

2

EVAP valve

76015015000

$254.78

3

Retaining bracket ACF valve cp

63515026010

$58.43

4

Hose clip ACF

63515003010

$31.03

5

Retaining bracket ACF

6351500201033

$50.58

6

ventilation hose evap.can.

63515021000

$18.50

7

HOSE EPA D=10/16 L=2000MM

78015119000

$244.12

8

Fuel tank vent hose 688mm

63515024100

$30.57

10

HOSE EPA D=6/10 L=2000MM

78015019000

$62.64

11

Hose ACF purge valve

63515028000

$27.01

12

HOSE EPA D=6/10 L=2000MM

78015019000

$62.64

13

HOSE EPA D=4/8 L=2000MM

78015021000

$49.92

14

Hose connection nozzles

64115026000

$4.11

15

shim

50337073000

$2.05

16

Y-CONNECTOR YS 6-10-6

61315028100

$8.41

18

clip nut M6

54603048100

$4.11

19

HH collar screw M6x13 TX30

0024060136

$3.08

20

YDNAC-clamp 10173 (16MM)

58431082100

$1.49

21

Screw plug ACF

61315026100

$21.87

22

Angle piece for overrun

63503098030

$2.05

23

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

24

HH collar screw M6x16 TX30

0025060166

$3.08

25

DAMP. COMPONENT ABS MODUL

62142041000

$4.11

26

collar bushing 6.1x9.2x15x8.5x

69014015000

$5.23

27

HH collar screw M6x20 TX30

0024060206

$3.08
