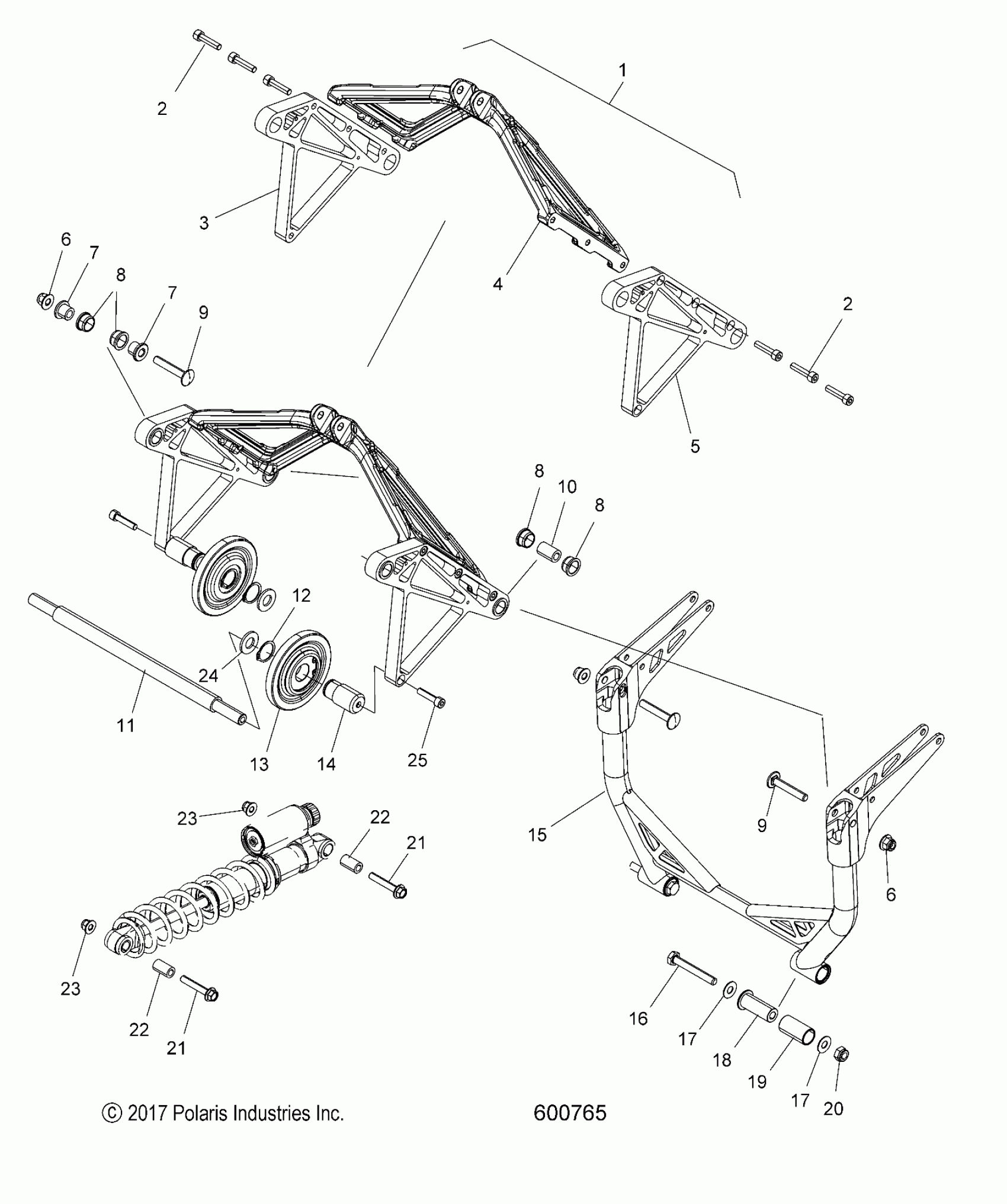

Polaris 850 SWITCHBACK XCR ALL OPTIONS (R01) - S21DDL8RS SUSPENSION, CRANK ASM., REAR - S21DDL8RS ALL OPTIONS (600765) Diagram

#

Description
Price

1

ASM-CRANK BLK [INCL. 2-5]

1543872-067

$509.99

2

SCR-SH-M8X1.25X35 10.9 ZPC P80

7519981

$6.39

2

SCR-SH-M8X1.25X35 10.9 ZPC P80

7519981

$6.39

3

CRANK, SIDE, RH [UNPAINTED]

5140959

$124.99

4

CRANK, CENTER [UNPAINTED]

5138645

$324.99

5

CRANK, SIDE, LH [UNPAINTED]

5140958

$124.99

6

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

6

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

7

SHAFT, RPA, UPPER LWT

5138652

$10.51

7

SHAFT, RPA, UPPER LWT

5138652

$10.51

8

BUSHING, CRANK

5438876

$7.99

8

BUSHING, CRANK

5438876

$7.99

8

BUSHING, CRANK

5438876

$7.99

9

BOLT-CARR M10X1.5X55 8.8 ZOD

7519982

$7.19

9

BOLT-CARR M10X1.5X55 8.8 ZOD

7519982

$7.19

10

SHAFT, PIVOT, LWT UPPER

5138654

$11.32

11

SHAFT, CARRIER, STEPPED

5139816

$58.08

12

RING, RETAINING

7710603

$2.39

13

ASM., WHEEL, CARRIER [INCL 12,14]

1590538

$48.56

14

SPACER, CARRIER

5139469

$23.99

15

ASM., REAR PIVOT, MATTE BLK [INCL. 19]

1543708-067

$430.86

16

SCR-M10X1.5X75 10.9 HCS ZOD

7519015

$5.59

17

WASHER

7556545

$3.19

17

WASHER

7556545

$3.19

18

SHAFT-PIVOT

5137367

$28.32

19

BUSHING-PIVOT

5438875

$11.99

20

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

21

SCR-M10X1.5X60-8.8 HFS ZOD

7518941

$3.99

21

SCR-M10X1.5X60-8.8 HFS ZOD

7518941

$3.99

22

BUSHING-M10X17.5X30

5137360

$3.99

22

BUSHING-M10X17.5X30

5137360

$3.99

23

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

23

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

24

WASHER

7556004

$7.19

25

SCR-SH-M8X1.25X50 12.9 RIE P80

7520217

$3.99
