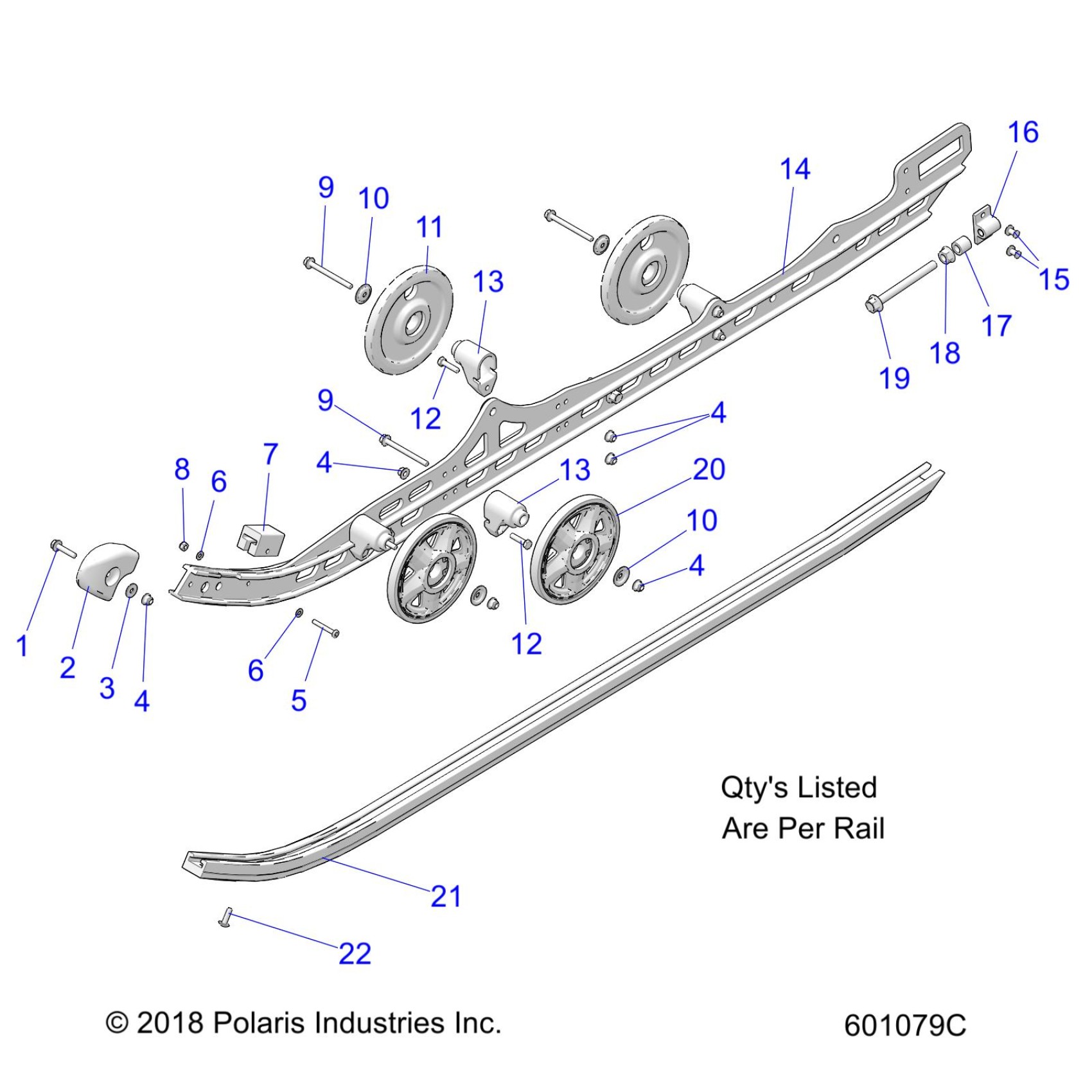

Polaris 850 SWITCHBACK PRO-S SC SELECT ALL OPTIONS (R05) - S19DDH8RS SUSPENSION, RAIL ASM. - S19DDH8RS ALL OPTIONS (601079C) Diagram

#

Description
Price

1

SCR-M6X1.0X30 8.8 HXFL ZOD

7518993

$2.39

2

CAP-RAIL TIP,UHMW

5438374

$20.22

3

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

4

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

5

SCREW-#10-24X1.5,TRX/PN MC-Y

7510504

$6.76

6

WSHR-FL #10 .203X.438X.032-Y

7555783

$3.99

6

WSHR-FL #10 .203X.438X.032-Y

7555783

$3.99

7

BUMPER-JOUNCE,FRONT

5521499

$8.89

8

NUT-NYLOC 10-24 Y

7541925

$1.49

9

SCR-HXFL- M6X1.0X70 10.9 ZOD

7519908

$4.79

9

SCR-HXFL- M6X1.0X70 10.9 ZOD

7519908

$4.79

10

WASHER, OFFSET

7556799

$3.19

10

WASHER, OFFSET

7556799

$3.19

11

ASM., WHEEL, PLAIN [INCL. BEARING AND RET. RING]

1590457

$35.99

11

BEARING, NEEDLE

3514384

$19.84

11

RING-RETAINING

7710444

$8.79

12

SCR-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

12

SCR-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

13

BLOCK-WHEEL MOUNT 6004

5632808

$24.27

13

BLOCK-WHEEL MOUNT 6004

5632808

$24.27

14

ASM., RAIL, LH, BASIC 137 [INCL. 15,16]

1543686-309

$364.99

14

ASM., RAIL, RH, BASIC 137 [INCL. 15,16]

1543687-309

$364.99

14

ASM., RAIL, LH, BASIC 137, BLACK [INCL. 15,16]

1543686-067

Unavailable

14

ASM., RAIL, RH, BASIC 137, BLACK [INCL. 15,16]

1543687-067

$769.99

14

ASM., RAIL, LH, BASIC 137, INDY RED [INCL. 15,16]

1543686-293

$769.99

14

ASM., RAIL, RH, BASIC 137, INDY RED [INCL. 15,16]

1543687-293

$769.99

14

ASM., RAIL, LH, BASIC 137, WHITE [INCL. 15,16]

1543686-599

$404.99

14

ASM., RAIL, RH, BASIC 137, WHITE [INCL. 15,16]

1543687-599

$404.99

14

ASM., RAIL, LH, BASIC 137, ORANGE BURST [INCL. 15,16]

1543686-647

$769.99

14

ASM., RAIL, RH, BASIC 137, ORANGE BURST [INCL. 15,16]

1543687-647

$769.99

14

ASM., RAIL, LH, BASIC 137, INDIAN SKY BLUE [INCL. 15,16]

1543686-737

$769.99

14

ASM., RAIL, RH, BASIC 137, INDIAN SKY BLUE [INCL. 15,16]

1543687-737

$769.99

14

ASM., RAIL, LH, BASIC 137, LIME SQUEEZE [INCL. 15,16]

1543686-630

$769.99

14

ASM., RAIL, RH, BASIC 137, LIME SQUEEZE [INCL. 15,16]

1543687-630

$769.99

15

RIVET

7621501

$2.39

16

BLOCK-IDLER BOLT ADJ METRIC

5136570

$34.99

17

SPACER

5137152

$3.19

18

NUT-HXFL-M10X1.50 10 ZPC

7547017

$5.59

19

SCR-HXFL-M10X1.5X100 8.8 ZOD

7519167

$11.99

20

ASM-WHEEL LWT 5.62 [INCL. BEARING AND RET. RING]

1590511

$38.39

20

BEARING, NEEDLE

3514384

$19.84

20

RING-RETAINING

7710444

$8.79

21

HI-FAX,.45/74",SERVICE,BLK

5521633-070

$40.46

22

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$3.19
