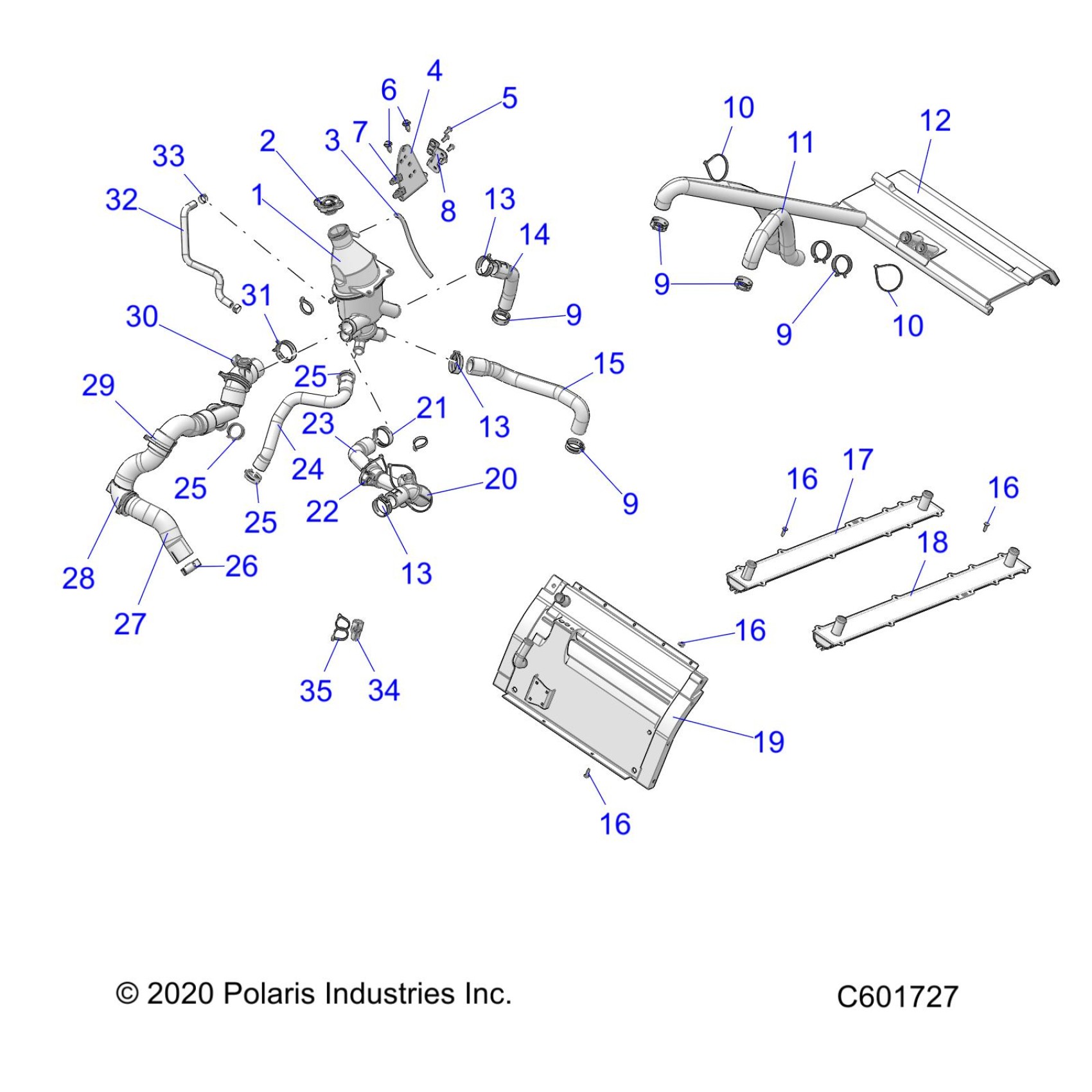

Polaris 850 SWITCHBACK PRO-S ALL OPTIONS (R02) - S21DDH8RS ENGINE, COOLING SYSTEM - S21DDH8RS ALL OPTIONS (C601727) Diagram

#

Description
Price

1

WELD-COOLANT BOTTLE DOUBLE

1241439

Unavailable

2

CAP-PRESSURE

1240300

$40.46

3

HOSE, FUEL [BULK SVC]

8450003-1525

Unavailable

4

BRKT-CONNECTOR PLACEMENT TP

5455038

$11.32

5

SCR-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

5

SCREW-M6X1.0X16.0MM HEX-FL-Y/D

7518637

$3.99

6

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

7

CLIP-EDGE,1-3MM THICKNESS

7082427

$5.59

8

ASM-BRKT COOLANT BOTTLE TP

1024376

$13.75

9

CLAMP, BLACK 29/12

7080842

$7.19

9

CLAMP, BLACK 29/12

7080842

$7.19

9

CLAMP, BLACK 29/12

7080842

$7.19

9

CLAMP, BLACK 29/12

7080842

$7.19

10

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

10

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

11

HOSE-TUNNEL COOLER/MFC

5415814

$48.40

12

COOLER, MID FLAP

1240735

$469.99

13

CLAMP, BROWN OR SILVER 32/12

7080843

$3.99

13

CLAMP, BROWN OR SILVER 32/12

7080843

$3.99

13

CLAMP, BROWN OR SILVER 32/12

7080843

$3.99

14

HOSE-TUNNEL/BOTTLE

5416327

$13.75

15

HOSE-BOTTLE/FRONT COOLER

5416328

$24.27

16

RIVET-3/16-.090-.290

7661637

Unavailable

16

RIVET-3/16-.090-.290

7661637

Unavailable

16

RIVET-3/16-.090-.290

7661637

Unavailable

16

RIVET-3/16-.090-.290

7661637

Unavailable

17

COOLER, WEAR STRIP, 120, RH

1241201

$154.90

18

COOLER, WEAR STRIP, 120, LH

1241280

$154.90

19

ASM-COOLER BULKHEAD

1241329

$544.99

20

SUPPORT-THROTTLE CABLE/HOSE

5416538

$13.75

20

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

21

CLAMP, BLACK 35/12

7080844

$10.39

22

SUPPORT-STATOR WIRE

5416551

$11.32

22

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

22

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

23

HOSE-BYPASS

5416321

$24.27

24

HOSE-FRONT COOLER

5416764

$13.75

25

CLAMP, HOSE

7081692

$4.03

25

CLAMP, HOSE

7081692

$4.03

25

CLAMP, HOSE

7081692

$4.03

26

CLAMP-HOSE, 1.750-SS

7080560

$11.19

27

ASM-HOSE BOTTLE/ENGINE

1263300

$117.59

28

SUPPORT-HOSE

5416866

$28.32

28

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

29

SUPPORT-HOSE

5416524

$28.32

29

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

30

SUPPORT-HOSE/ELECTRICAL WIRES

5416536

$24.27

30

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

30

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

31

SPRINGBAND-CLAMP 38/12,BLK

7082025

$5.59

32

HOSE-TBODY/COOLANT BOTTLE

5417221

$13.75

33

Clamp, Hose

7080534

$1.59

34

SUPPORT-FUEL LINE/OIL LINE

5416539

$7.27

35

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41
