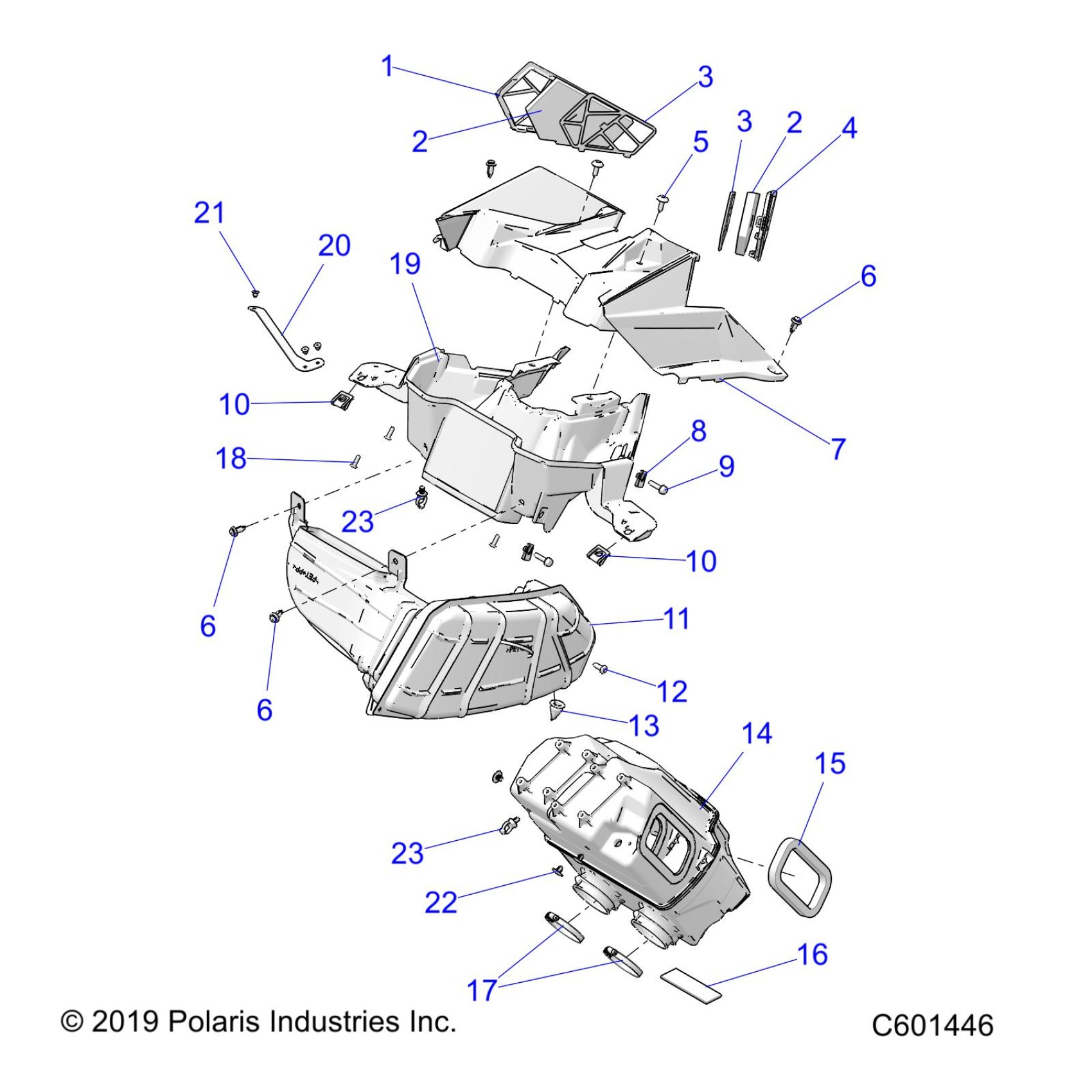

Polaris 850 SWITCHBACK PRO-S ALL OPTIONS (R02) - S21DDH8RS ENGINE, AIR INTAKE SYSTEM - S21DDH8RS ALL OPTIONS (C601446) Diagram

#

Description
Price

1

VENT, INTAKE, RH

5450473

$32.37

2

FOAM, INTAKE

5814024

$12.94

2

FOAM, INTAKE

5814024

$12.94

3

BACKER, INTAKE VENT

5814025

$4.84

3

BACKER, INTAKE VENT

5814025

$4.84

4

VENT, INTAKE, LH

5450472

$32.37

5

SCR-TXTH-M6X1.0X20 T40 ZP

7519112

$3.19

5

SCR-TXTH-M6X1.0X20 T40 ZP

7519112

$3.19

6

RIVET, TUFLOK

7661855

$1.49

6

RIVET, TUFLOK

7661855

$1.49

7

PLENUM-UPPER IN-MOLD BLK [COLOR OPTION]

5450462-070

$44.99

7

PLENUM-UPPER INDY RED [COLOR OPTION]

5451240-293

$266.65

7

PLENUM-UPPER POLARIS BLUE [COLOR OPTION]

5451240-751

$266.25

7

PLENUM-UPPER PLUM CRAZY [COLOR OPTION]

5451240-784

$266.25

8

CLIP-"U",M6.0X1.0

7547366

$5.99

9

SCR-M6X1.0X25-HX/FL-Y/D

7516823

$3.19

10

CLIP, 1/4 TURN

7710808

$5.99

10

CLIP, 1/4 TURN

7710808

$5.99

11

ASM-TUBE INTAKE

1206198

$116.17

12

SCR-TX TRUSS-#14X3/4,HI/LO ZBK

7519045

$3.19

13

PLUG-DRAIN

5414472

$5.59

14

ASM., AIR SILENCER

1205669

$125.86

15

FOAM, INTAKE, LOWER

5813962

$12.94

16

FOAM-SEAL,REAR COOLER

5810947

$4.03

17

CLAMP, NARROW BAND

7080909

$7.99

18

SCR-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99

19

PLENUM, LOWER

5452415

$121.02

20

BRKT, PLENUM SUPPORT

5261169

$12.99

21

RIVET-4.8MM DIA-1.5-6.0 GRIP

7661973

$1.49

22

CLIP-DART (NYLON)

7670067

$3.99

23

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

23

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79
