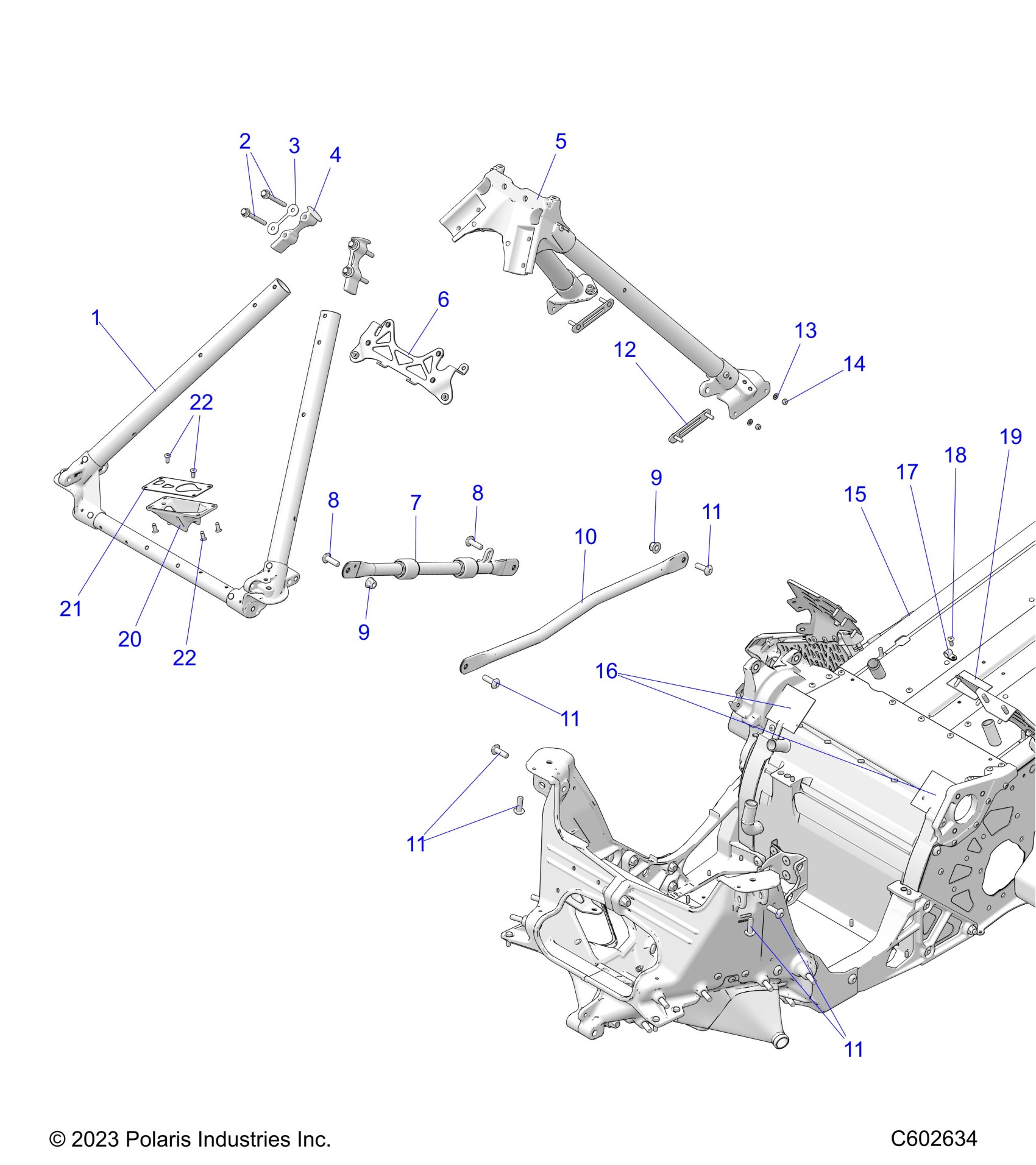

Polaris 850 SWITCHBACK ASSAULT 146 RACE IFS/146 ESCAPE IFS ALL OPTIONS (R01) - S26TLC8RS/TLR8RS CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S26TLC8RS (C601608) Diagram

ASM-FRAME TUBULAR FRONT ALUM

1024164

$149.99

SCR-HXFL-M6X1X60 10.9 ZOD P30

7520723

$4.99

SHIM-TUBE CAST 31.76 DIA

5633083

$6.99

SPACER-TUBE CAST 27.00 DIA

5633122

$9.59

ASM-TUBE FRAME REAR

1025156

$784.99

ASM-REGULATOR MOUNT

1024479

$36.41

WELD-CROSS BRACE RH

1027787

$74.99

SCREW-TXTR

7518906

$3.19

SCREW-TXTR

7518906

$3.19

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

TUBE-BRACE LH BLK

5337391-329

$34.99

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

ASM-STUD PLATE 5MM

1023672

$12.79

WSHR-FL,5.5X1.0,(10)

7556071

$4.79

NUT-M5X.8,HX NYL-Y

7546601

$1.49

ASM-CHASSIS 650/850 146 BLK [BLACK][COLOR OPTION][INCL. BULKHEAD]

1028940-067

$2,769.99

ASM-CHASSIS 650/850 146 LLM [LIFTED LIME][COLOR OPTION][INCL. BULKHEAD]

1028940-801

$2,367.19

PAD, 2.5"X2.5"

5814187

$4.03

CLAMP-CABLE

7080367

$2.39

RIVET 3/16(.063-.250)ST-ST-LF-B

7621472

$1.49

PAD-40X63.5

5814353

$9.70

MOUNT-LOAD CENTER

5454789

$9.70

BRKT-LOAD CENTER

5265340

$4.84

RIVET-4.8MM DIA-1.5-6.0 GRIP

7661973

$1.49

RIVET-4.8MM DIA-1.5-6.0 GRIP

7661973

$1.49
