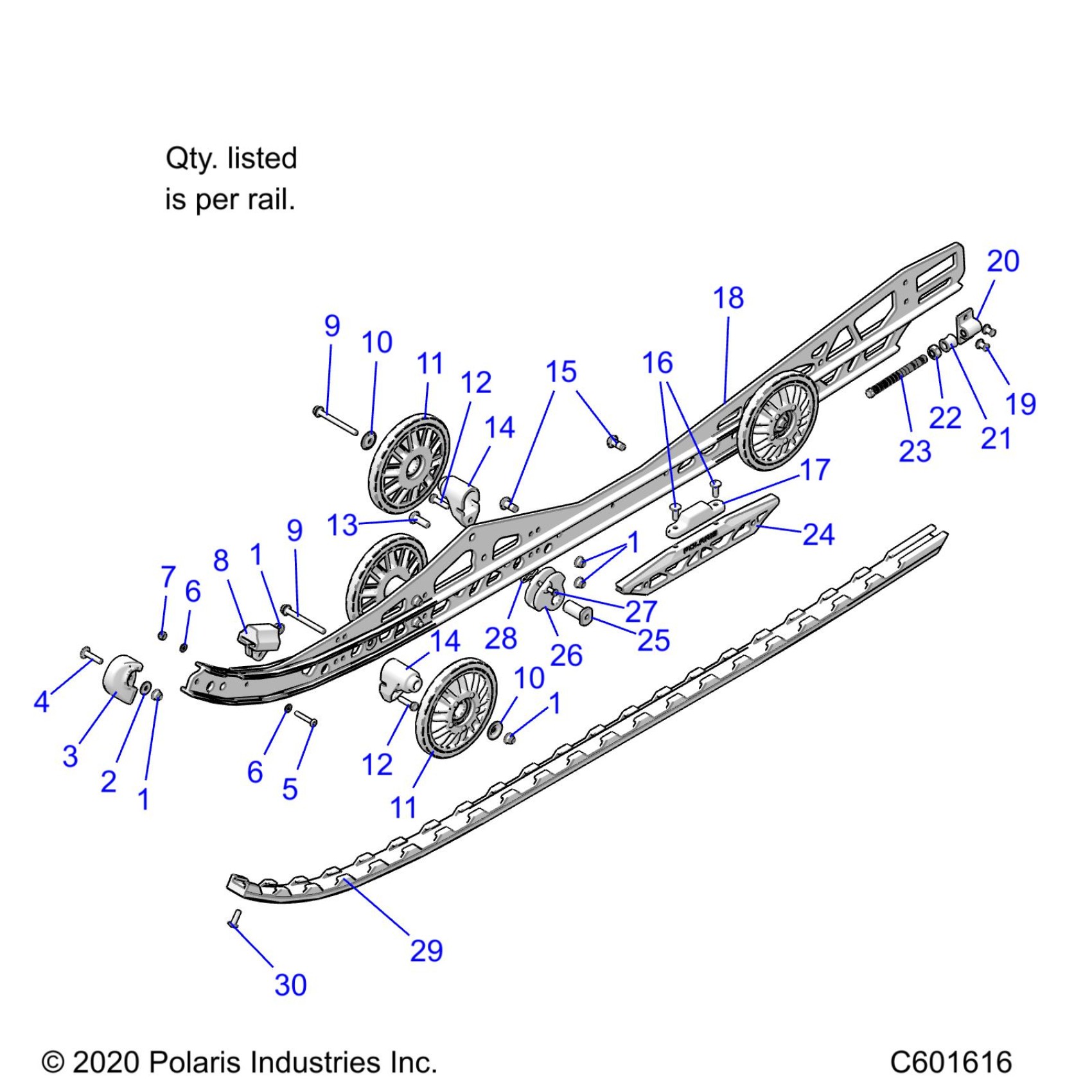

Polaris 850 SWITCHBACK ASSAULT 146 ALL OPTIONS (R02) - S25TLC8RS SUSPENSION, RAIL BEAM LH/RH - S25TLC8RS (C601616) Diagram

#

Description
Price

1

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

1

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

1

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

1

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

2

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

3

CAP, RAIL TIP

5452441

$16.99

4

SCR-TXTH-M6X1.0X30,8.8,ZPB

7520133

$3.19

5

SCR-10-24X1.25TFM PN TRX TRI-Y

7512025

$4.79

6

Washer, Flat

7555783

$3.99

6

Washer, Flat

7555783

$3.99

7

NUT-NYLOC 10-24 Y

7541925

$1.49

8

BUMPER, JOUNCE, FRONT

5522253

$8.89

9

SCR-HXFL- M6X1.0X70 10.9 ZOD

7519908

$4.79

9

SCR-HXFL- M6X1.0X70 10.9 ZOD

7519908

$4.79

10

WASHER, OFFSET

7556799

$3.19

10

WASHER, OFFSET

7556799

$3.19

11

ASM-WHEEL SPOKED 5.62

1590632

$38.39

11

BEARING-.7874X1.6535X.4724 NSK [1 PER WHEEL]

3515142

$19.99

11

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

11

ASM-WHEEL SPOKED 5.62

1590632

$38.39

11

BEARING-.7874X1.6535X.4724 NSK [1 PER WHEEL]

3515142

$19.99

11

RING-RETAINING [1 PER WHEEL]

7710444

$8.79

12

SCR-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

12

SCR-HH-M6X1.0X25 8.8 ZPB

7517510

$4.79

13

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

14

BLOCK-WHEEL MOUNT

5633278

$29.99

14

BLOCK-WHEEL MOUNT

5633278

$29.99

15

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

16

SCR-1/4-20X3/4,TR/TX/TAP-Y

7515199

$1.49

17

BUMPER

5432166

$5.59

18

ASM-RAIL 146 PREM SVC LH BLK [COLOR OPTION][INCL.19,20][BLACK]

1544456-067

$664.99

18

ASM-RAIL 146 PREM SVC RH BLK [COLOR OPTION][INCL.19,20][BLACK]

1544457-067

$664.99

18

ASM-RAIL 146 PREM SVC LH RED [COLOR OPTION][INCL.19,20][RED]

1544456-293

$664.99

18

ASM-RAIL 146 PREM SVC RH RED [COLOR OPTION][INCL.19,20][RED]

1544457-293

$664.99

18

ASM-RAIL 146 PREM SVC LH ORGB [COLOR OPTION][INCL.19,20][ORANGE BURST]

1544456-647

$664.99

18

ASM-RAIL 146 PREM SVC RH ORGB [COLOR OPTION][INCL.19,20][ORANGE BURST]

1544457-647

$664.99

18

ASM-RAIL 146 PREM SVC LH RDGRN [COLOR OPTION][INCL.19,20][RAD. GREEN]

1544456-887

$629.99

18

ASM-RAIL 146 PREM SVC RH RDGRN [COLOR OPTION][INCL.19,20][RAD. GREEN]

1544457-887

$629.99

19

RIVET

7621501

$2.39

20

BLOCK-IDLER BOLT ADJ METRIC

5136570

$34.99

21

SPACER-IDLER ADJ ALUM

5141837

$8.99

22

NUT-HEX-M10X1.5 8 ZOD

7547707

$4.99

23

SCR-HX-M10X1.5X100,8.8,ZOD

7520083

$12.79

24

PLATE-RAIL REINF BLK ANODIZED

5143395

$194.99

25

SHAFT, SPRING ROLLER

5136687

$10.51

26

GUIDE, SPRING, SQUARE

5434334

$28.32

27

Pin, Clevis

7661123

$3.99

28

PIN, HITCH

7661644

$2.39

29

HI-FAX-146 LWT BLK

5522358-070

$79.99

30

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$3.19
