- 850 SKS 146 ALL OPTIONS (R03) - S19ELS8R
SUSPENSION, REAR - S19ELS8R ALL OPTIONS (600722)

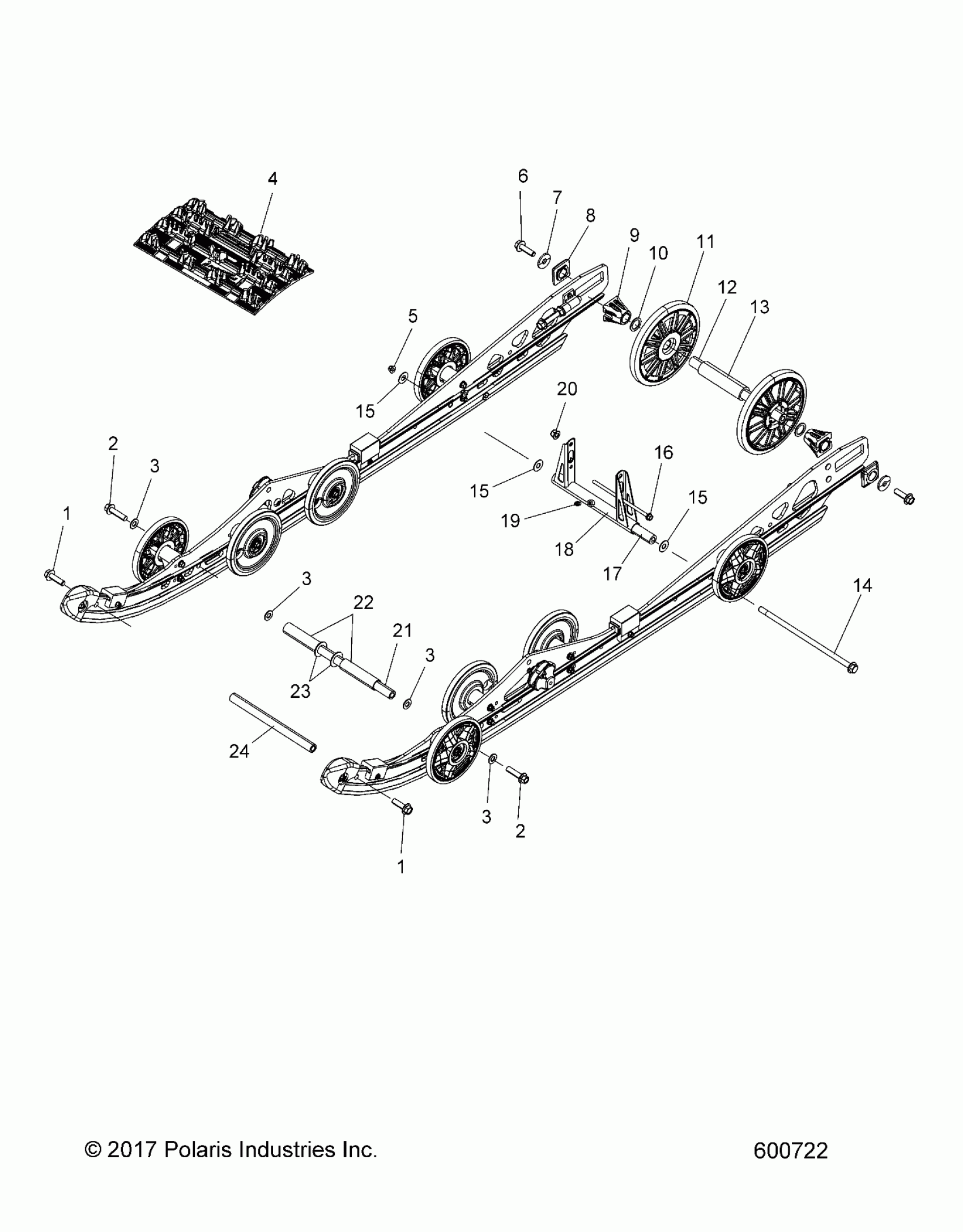

Polaris 850 SKS 146 ALL OPTIONS (R03) - S19ELS8R SUSPENSION, REAR - S19ELS8R ALL OPTIONS (600722) Diagram
#
Description
Price
1
SCR-M10X1.5X35 HXFL ZOD P30
7518957
$3.19
1
SCR-M10X1.5X35 HXFL ZOD P30
7518957
$3.19
2
SCR-HXFL-M10X1.5X40 10.9ZODP80
7519216
$4.79
2
SCR-HXFL-M10X1.5X40 10.9ZODP80
7519216
$4.79
3
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
3
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
3
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
3
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
4
CLIP-TRACK,LNG GUIDE
5251274
Unavailable
4
CLIP-TRACK, FLAT
5251273
Unavailable
4
TRACK-146X2.25,SINGLE LAYER
5416498
$1,121.99
5
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
6
SCR-M10X1.5X35 HXFL ZOD P30
7518957
$3.19
7
WASHER, SPRING
7556490
$4.79
8
SPACER-IDLER
5436496
$6.39
9
SPACER-IDLER
5432535
$11.99
10
BUSHING
7555918
$1.59
11
BEARING
3514384
$19.84
11
RING-RETAINING
7710444
$8.79
11
ASM-WHEEL,SPOKE,7.25,6004
1590459
$47.99
12
SHAFT-IDLER M10X1.5
5137224
$28.32
13
SPACER-IDLER, CENTER
5333283
$19.99
14
SCR-HXFL-M10X1.25X250 10.9 ZOD
7519327
$19.99
15
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
15
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
15
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
16
SCREW-HXFL, M6x150
7519201
$19.99
17
SHAFT, CROSS
5137418
$32.37
18
ARM, REAR, PIVOT, COILOVER, BLACK
1542906-329
$52.60
19
FITTING-LUBRICATION 1/4-28
7080424
$4.79
20
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
21
SHAFT-17.450X214.77
5137312
$33.87
22
SPACER-SHOCK CENTERING LWT
5450477
$8.79
23
WSHR-.719X1.250X.065-Y
7556210
$3.99
24
SFT-M10X1.5IDX17.47ODX220.1 LG
5136572
$33.87
