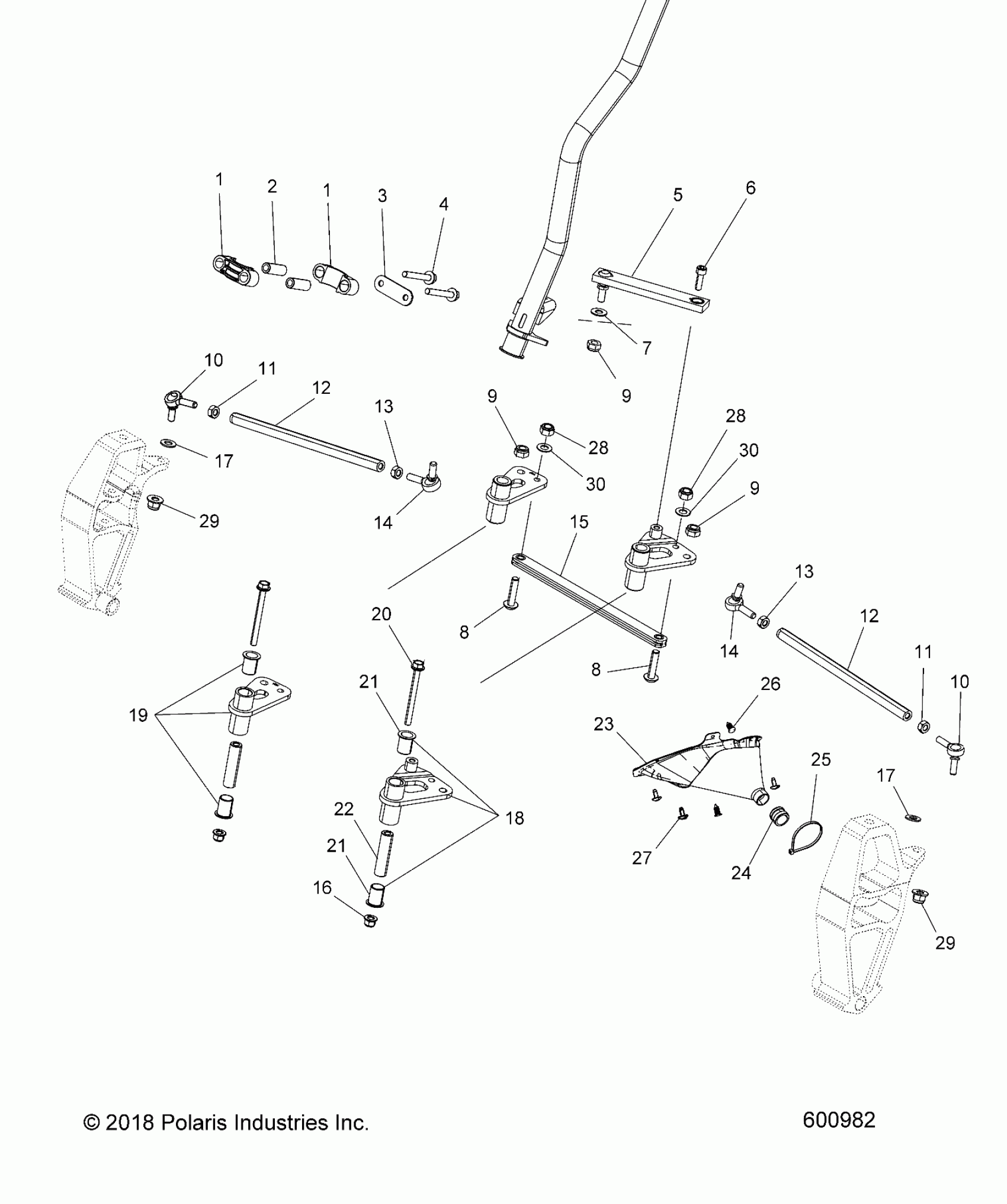

Polaris 850 SKS 146 ALL OPTIONS (R03) - S19ELS8R STEERING, LOWER - S19ELS8R ALL OPTIONS (600982) Diagram

#

Description
Price

1

BUSHING, STEERING POST LOWER

5450880

$7.99

1

BUSHING, STEERING POST LOWER

5450880

$7.99

2

SPACER, BUSHING

5137796

$3.99

3

STRAP-STEERING

5258308

$3.22

4

SCR-HXFL-M8X1.25X55 8.8 ZODP30

7519242

$4.79

5

ASM-DRAGLINK FIXED

7061186

$97.13

6

SCR-M8X1.25X25 8.8 SH ZOD P30

7519010

$3.99

7

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

8

SCR-TXTH-M8X1.25X35 8.8 ZOD

7519238

$6.39

8

SCR-TXTH-M8X1.25X35 8.8 ZOD

7519238

$6.39

9

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

9

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

9

NUT-HEX M10X1.5 8 ZOD NYL

7547442

$3.99

10

ROD END-M10X26.5 75DEG RH

7061166

$52.60

10

ROD END-M10X26.5 75DEG RH

7061166

$52.60

11

NUT-M10X1.5 ZOD

7547430

$3.17

11

NUT-M10X1.5 ZOD

7547430

$3.17

12

ROD-TIE

5335899

$32.37

12

ROD-TIE

5335899

$32.37

13

NUT-M10X1.5 LH ZOD

7547431

$3.19

13

NUT-M10X1.5 LH ZOD

7547431

$3.19

14

ROD END-M10X23 75DEG LH

7061165

$52.60

14

ROD END-M10X23 75DEG LH

7061165

$52.60

15

ASM-RACK LINK

7061190

$71.99

16

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

17

WSHR-FL .406X.812X.065-Y

7555806

$1.49

17

WSHR-FL .406X.812X.065-Y

7555806

$1.49

18

ASM-PITMAN [INCL. 21]

1824761

$150.06

19

ASM-IDLER [INCL. 21]

1824547

$135.54

20

SCR-HXFL-M8X1.25X85 10.9 ZOD

7519972

$9.59

21

BUSHING-SKI PIVOT

5438460

$15.99

21

BUSHING-SKI PIVOT

5438460

$15.99

22

SHAFT-PIVOT IDLER

5138365

$24.27

23

ASM-TIE ROD BOOT RH [INCL. 24,25]

2635203

$36.41

23

ASM-TIE ROD BOOT LH [INCL. 24,25]

2635202

$36.41

24

BUSHING, TIE ROD BOOT

5439309

$11.99

25

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

26

CLIP, X MAS TREE

7661953

$1.49

27

SCR-TXTH-M6X1.0X15 ZPB TAP

7519092

$1.49

28

NUT-M8X1.25C10,HX,NYL,DIN982,Z

7547405

$1.49

28

NUT-M8X1.25C10,HX,NYL,DIN982,Z

7547405

$1.49

29

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

29

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$3.99

30

WASHER-FL 8.4X16.0X.91 HRD ZOD

7557059

$3.19

30

WASHER-FL 8.4X16.0X.91 HRD ZOD

7557059

$3.19
