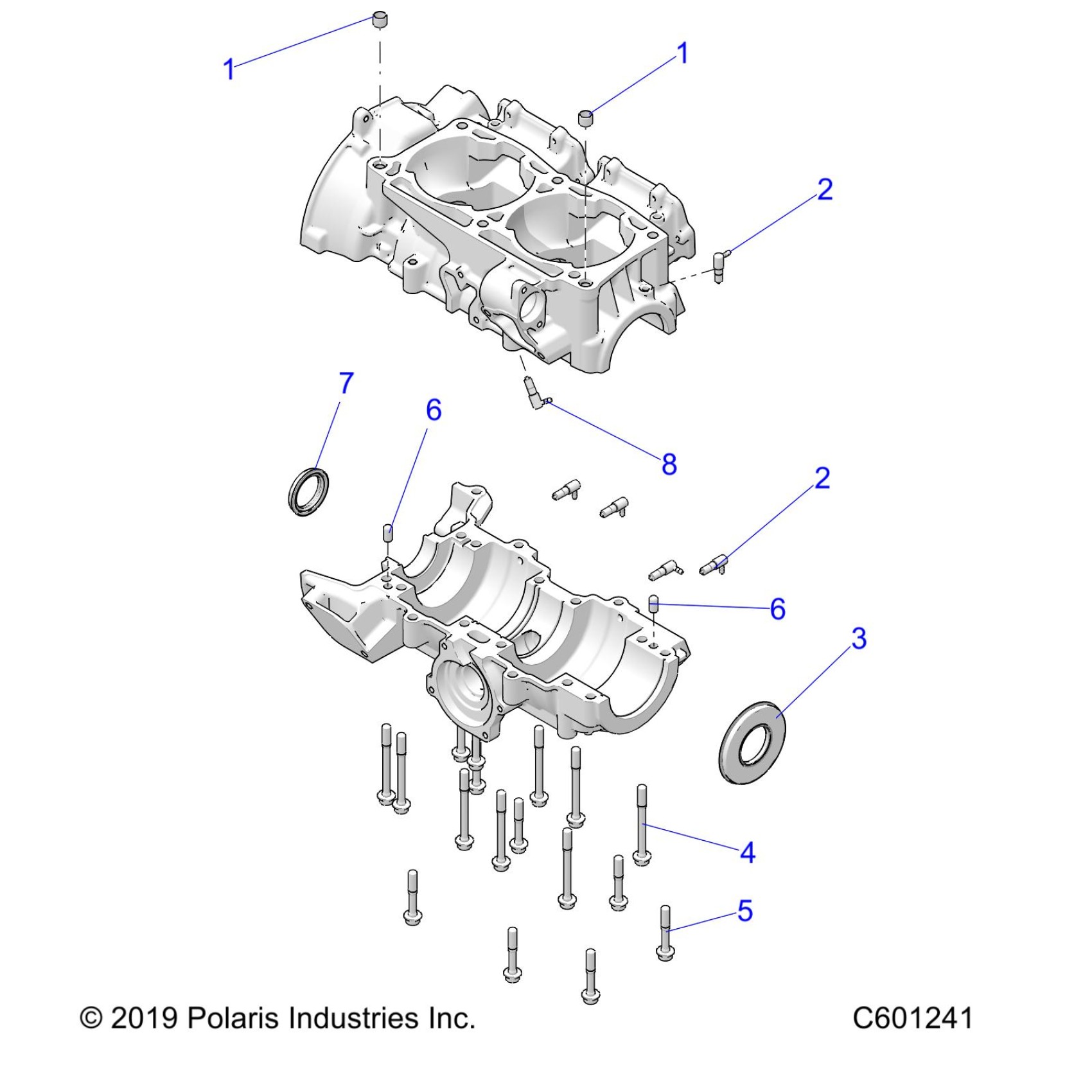

Polaris 850 SKS 146 ALL OPTIONS (R03) - S19ELS8R ENGINE, CRANKCASE - S19ELS8R ALL OPTIONS (C601241) Diagram

#

Description
Price

-

K-CRANKCASE [INCL. 2,4-8]

2208236

$1,364.99

1

DOWEL, HOLLOW

7663008

$5.27

1

DOWEL, HOLLOW

7663008

$5.27

2

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

2

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

3

SEAL-FLANGED,40X80X7,W/STNDOFF

5416613

$34.99

4

BOLT, 80MM

7517784

$8.79

5

BOLT, 55MM

7517785

$9.59

6

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

6

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

7

SEAL-FLANGED 35X48X7,MAG

5416911

$40.46

8

VALVE-CHECK,SCREEN

7052750

$36.41
