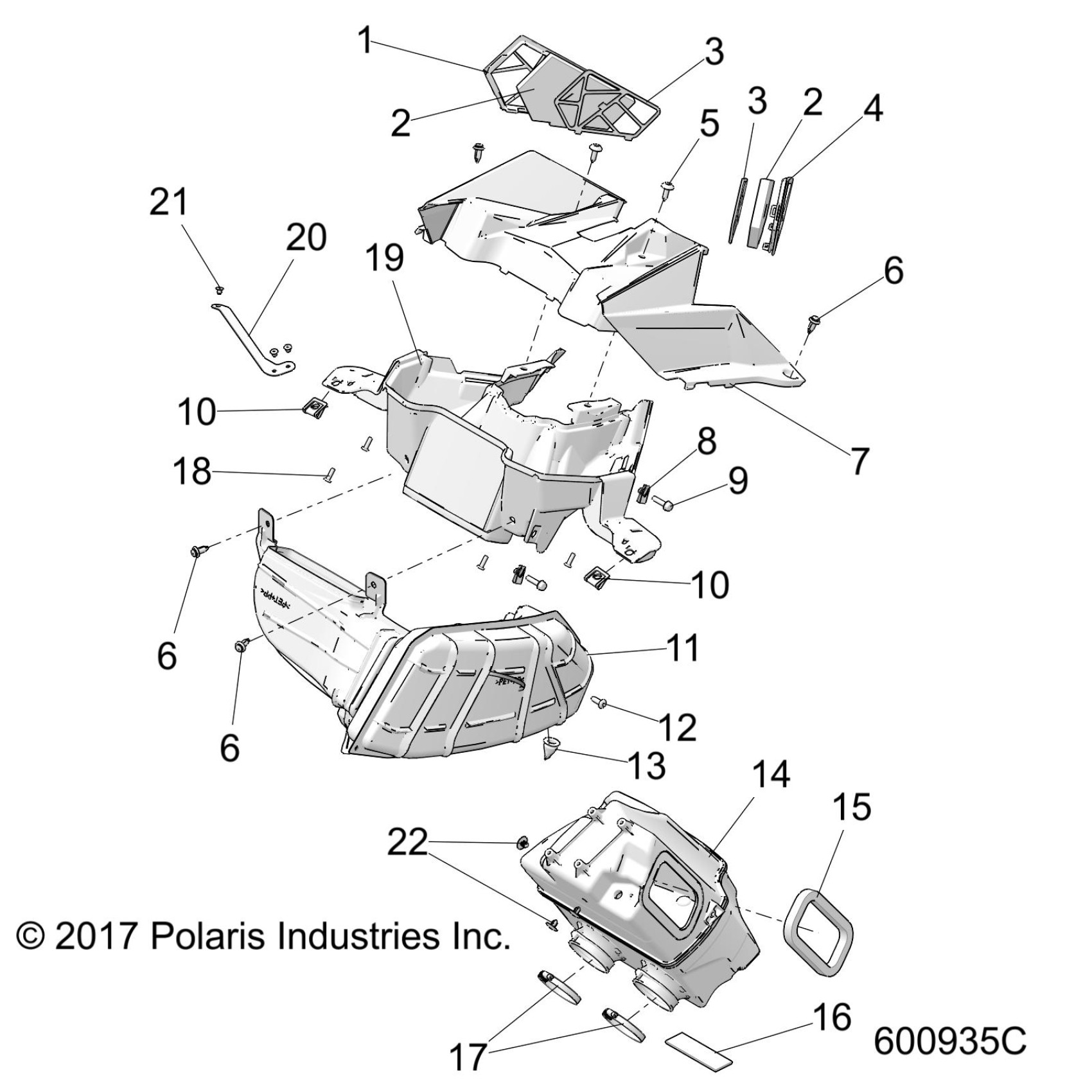

Polaris 850 SKS 146 ALL OPTIONS (R03) - S19ELS8R ENGINE, AIR INTAKE SYSTEM - S19ELS8R ALL OPTIONS (600935C) Diagram

#

Description
Price

1

VENT, INTAKE, RH

5450473

$32.37

2

FOAM, INTAKE

5814024

$12.94

2

FOAM, INTAKE

5814024

$12.94

3

BACKER, INTAKE VENT

5814025

$4.84

3

BACKER, INTAKE VENT

5814025

$4.84

4

VENT, INTAKE, LH

5450472

$32.37

5

SCR-TXTH-M6X1.0X20 T40 ZP

7519112

$3.19

6

RIVET, TUFLOK

7661855

$1.49

6

RIVET, TUFLOK

7661855

$1.49

6

RIVET, TUFLOK

7661855

$1.49

7

PLENUM, UPPER, BLK PEARL

5451240-666

$280.78

8

CLIP-"U",M6.0X1.0

7547366

$5.99

9

SCR-M6X1.0X25-HX/FL-Y/D

7516823

$3.19

10

CLIP, 1/4 TURN

7710808

$5.99

10

CLIP, 1/4 TURN

7710808

$5.99

11

ASM., TUBE, INTAKE

1205327

$116.17

12

SCR-TX TRUSS-#14X3/4,HI/LO ZBK

7519045

$3.19

13

PLUG-DRAIN

5414472

$5.59

14

ASM., AIR SILENCER

1205669

$125.86

15

FOAM, INTAKE, LOWER

5813962

$12.94

16

FOAM-SEAL,REAR COOLER

5810947

$4.03

17

CLAMP, NARROW BAND

7080909

$7.99

18

SCR-10X5/8-HI/LO,PN-T25,TRX-M

7518238

$3.99

19

PLENUM, LOWER

5452415

$121.02

20

BRKT, PLENUM SUPPORT

5261169

$12.99

21

RIVET-4.8MM DIA-1.5-6.0 GRIP

7661973

$1.49

22

CLIP-DART (NYLON)

7670067

$3.99
