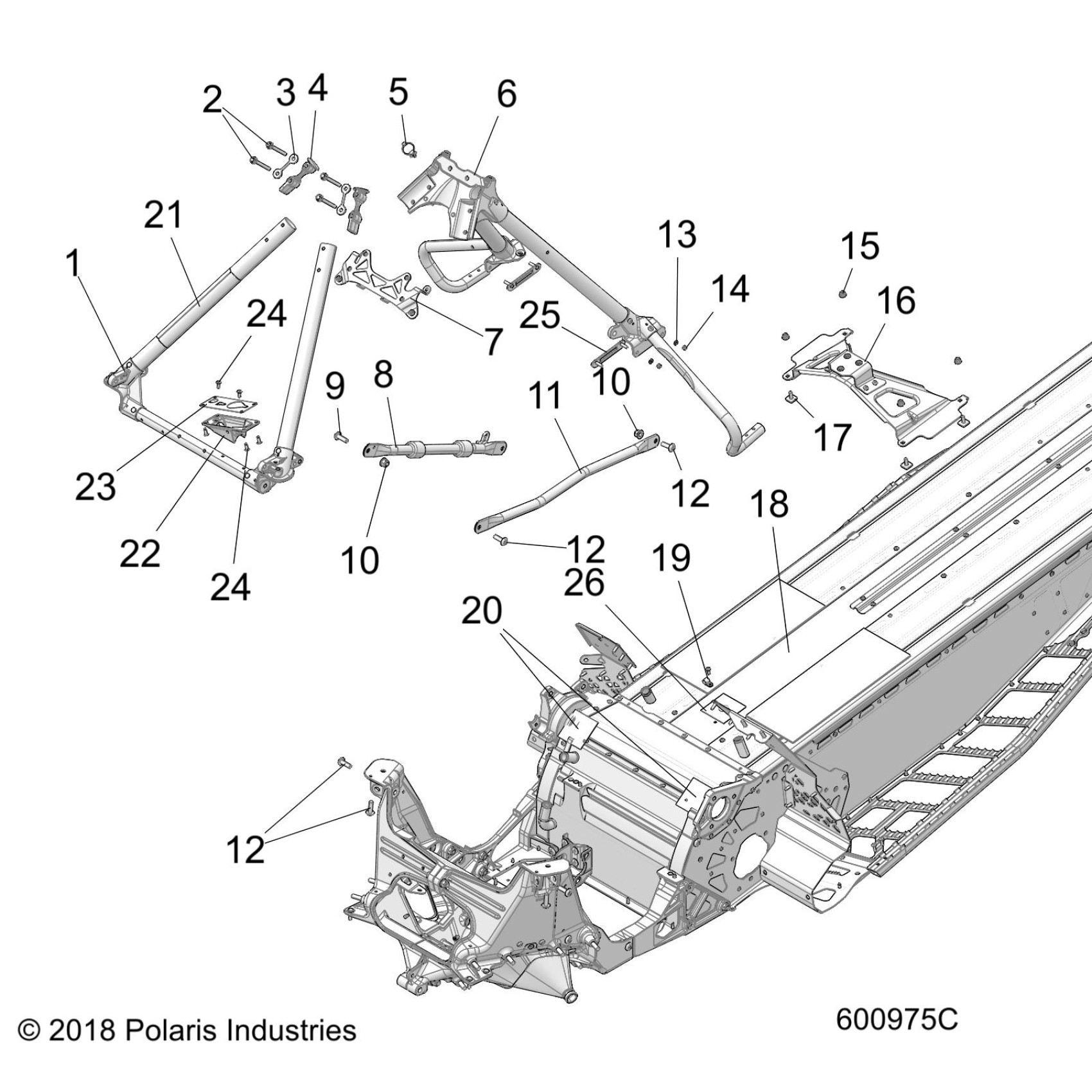

Polaris 850 SKS 146 ALL OPTIONS (R03) - S19ELS8R CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S19ELS8R (600975C) Diagram

#

Description
Price

1

ASM-FRAME, TUBULAR FRONT CF [INCL. FOIL]

1023852

$374.99

2

SCR-HXFL-M6X1X60 10.9 ZOD P30

7520723

$4.99

3

SHIM-TUBE, CAST

5633083

$6.99

4

SPACER, TUBE CAST

5632923

$9.99

5

CABLE-TIE,DIA2.5-34MM,FIR-TREE

7082003

$3.19

6

ASM., TUBE FRAME, REAR

1023206

$319.99

7

ASM-REGULATOR MOUNT

1024479

$36.41

8

CROSS BRACE BLK

1024086-067

$44.99

9

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

11

TUBE-BRACE LH BLK

5337391-329

$34.99

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

12

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

13

WSHR-5.3X10X1 ZB

7556071

$4.79

14

NUT-M5X.8,HX NYL-Y

7546601

$1.49

15

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

16

BRACKET, FUEL TANK, MBLK

1021376-458

$111.33

17

SCR-SPCL M6X1.0X16 8.8 ZC

7520514

$3.99

18

ASM-CHASSIS 850 144 ORNG BURST [INCL. BULKHEAD]

1023207-647

$2,934.99

18

ASM-TUNNEL 144 850 LIME SQUEEZE [INCL. TUNNEL COOLER]

1024429-630

Unavailable

18

ASM-CHASSIS 850 144 IND SKY BLUE [INCL. BULKHEAD]

1023207-737

Unavailable

18

ASM-TUNNEL 144 850 IND SKY BLU [INCL. TUNNEL COOLER]

1024429-737

Unavailable

18

ASM-CHASSIS 850 144 LIME SQUEEZE [INCL. BULKHEAD]

1023207-630

Unavailable

18

ASM-CHASSIS 850 144 BLK [INCL. BULKHEAD]

1023207-067

Unavailable

18

ASM-CHASSIS 850 144 NAT [INCL. BULKHEAD]

1023207-309

$2,809.99

18

ASM-TUNNEL 144 850 BLK [INCL. TUNNEL COOLER]

1024429-067

Unavailable

18

ASM-TUNNEL 144 850 ORNG BURST [INCL. TUNNEL COOLER]

1024429-647

Unavailable

18

ASM-TUNNEL 144 850 NAT [INCL. TUNNEL COOLER]

1024429-309

$1,714.99

18

ASM-CHASSIS 850 144 RED [INCL. BULKHEAD]

1023207-293

Unavailable

18

ASM-TUNNEL 144 850 RED [INCL. TUNNEL COOLER]

1024429-293

Unavailable

19

CLAMP-CABLE,NYLON,5/16"

7080960

$4.79

19

RIVET-4.8MM DIA-1.5-6.0GRIP BK

7662251

$2.49

20

PAD, 2.5"X2.5"

5814187

$4.03

21

FOIL-100MM X 200MM

5814124

$8.99

22

MOUNT-LOAD CENTER

5454789

$9.70

23

BRKT-LOAD CENTER

5265340

$4.84

24

RIVET-4.8MM DIA-1.5-6.0 GRIP

7661973

$1.49

24

RIVET-4.8MM DIA-1.5-6.0 GRIP

7661973

$1.49

25

ASM-STUD PLATE 5MM

1023672

$12.79
