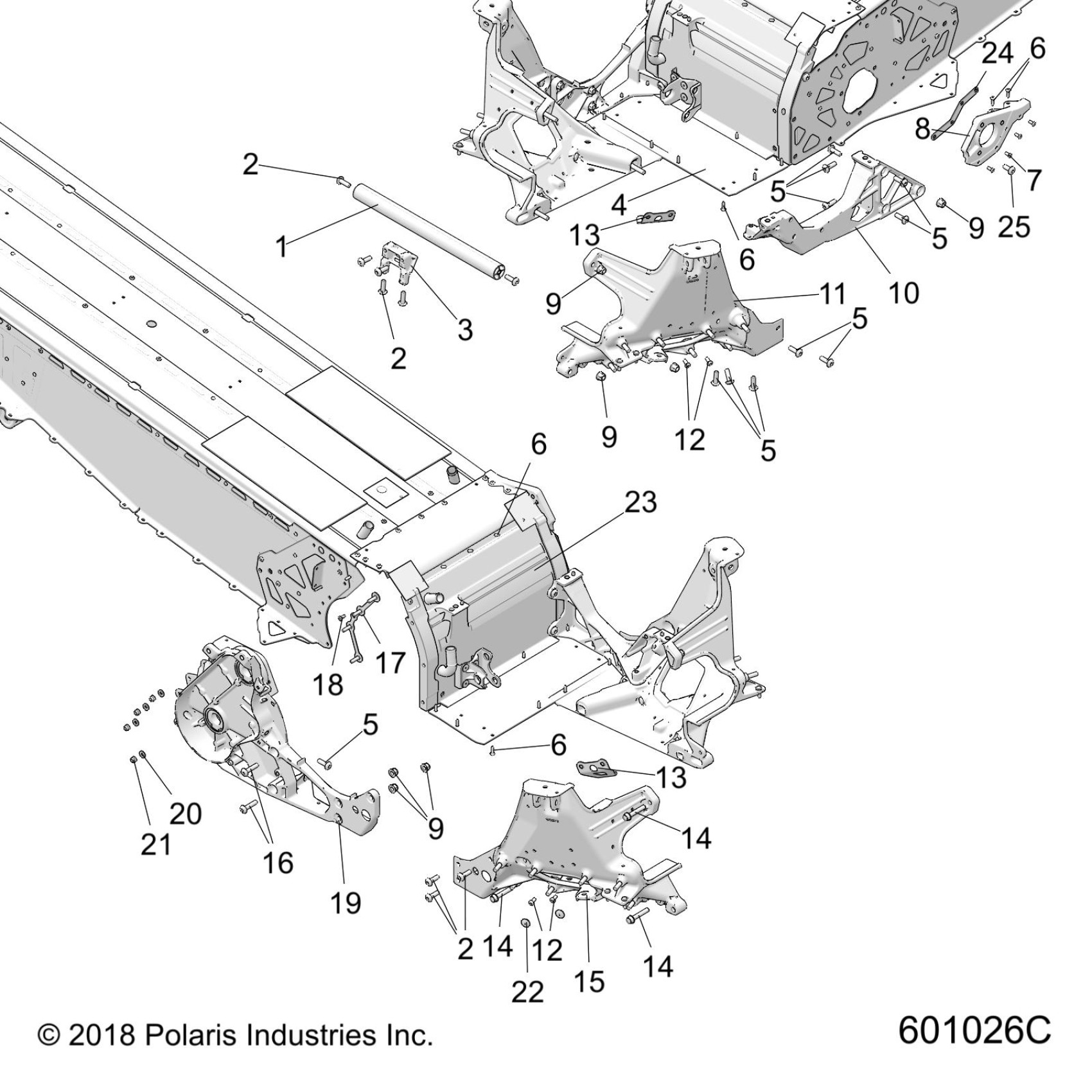

Polaris 850 SKS 146 ALL OPTIONS (R03) - S19ELS8R CHASSIS, BULKHEAD ASM. - S19ELS8R ALL OPTIONS (601026C) Diagram

#

Description
Price

-

KIT, LORD, 406, 50 ML CARTRIDGE [ADHESIVE]

2204400

$74.99

-

KIT, LORD, 406 REPAIR KIT, 50 ML [ADHESIVE]

2204171

$294.99

-

KIT, LORD, MIX NOZZLES, 12 PIECE

2204172

$4.99

1

TUBE-CROSSOVER, EXTRUDED

5140781

$106.49

2

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

2

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

2

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

3

MOUNT-STEERING LOWER MACH

5138449

$16.99

4

FLOOR, BULKHEAD

5256849

$29.03

5

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

5

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

5

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

5

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

5

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

6

RIVET-3/16-.090-.290

7661637

Unavailable

6

RIVET-3/16-.090-.290

7661637

Unavailable

6

RIVET-3/16-.090-.290

7661637

Unavailable

6

RIVET-3/16-.090-.290

7661637

Unavailable

7

SCR-M5X0.8X12 10.9 TX/BH ZPC

7520967

$3.99

8

MOUNT-JACKSHAFT BEARING MACH

5139244

Unavailable

9

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

9

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

9

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

9

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

10

ASM., BRACE, LOWER, LH [REQUIRES ADHESIVE][INCL. DOWEL PINS]

1023784

$139.99

10

PIN-DOWEL,M6X10

5136879

Unavailable

11

ASM., CLIP W/STUD LH [INCL. STUDS][REQUIRES ADHESIVE]

1023153

$334.99

11

STUD

7519204

$19.99

12

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

12

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

13

ASM., BRKT., IDLER, TOP

1019666

$28.32

13

ASM., BRKT., IDLER, TOP

1019666

$28.32

14

SCR-M8X1.25X45-HX/FL-Y

7516732

$1.59

14

SCR-M8X1.25X45-HX/FL-Y

7516732

$1.59

14

SCR-M8X1.25X45-HX/FL-Y

7516732

$1.59

15

ASM-CLIP W/STUD RH [INCL. STUDS][REQUIRES ADHESIVE]

1023783

$319.99

15

STUD

7519204

$19.99

16

SCR-TXTH M8X1.25X35 8.8ZOD P80

7519049

$7.19

17

ASM-STUD PLATE M6X4

1020927

$34.99

18

RIVET-4.8MM DIA-1.5-6.0 GRIP

7661973

$1.49

19

ASM-CHAINCASE INTERMD [REQUIRES ADHESIVE][INCL. BRNGS., SEALS]

1333119

$289.99

20

WASHER-6.2X14.25X2 ZC

7556588

$2.39

21

NUT-HEX-M6X1.0 8 ZOD NYL

7547505

$2.39

22

CLIP-DART (NYLON)

7670067

$3.99

23

ASM-COOLER BULKHEAD

1241329

$544.99

24

ASM-NUT PLATE JACKSHFT TP/CO

1024312

Unavailable

25

SCR-TXTH-M8X1.25X20 8.8 ZODP30

7519260

$6.39
