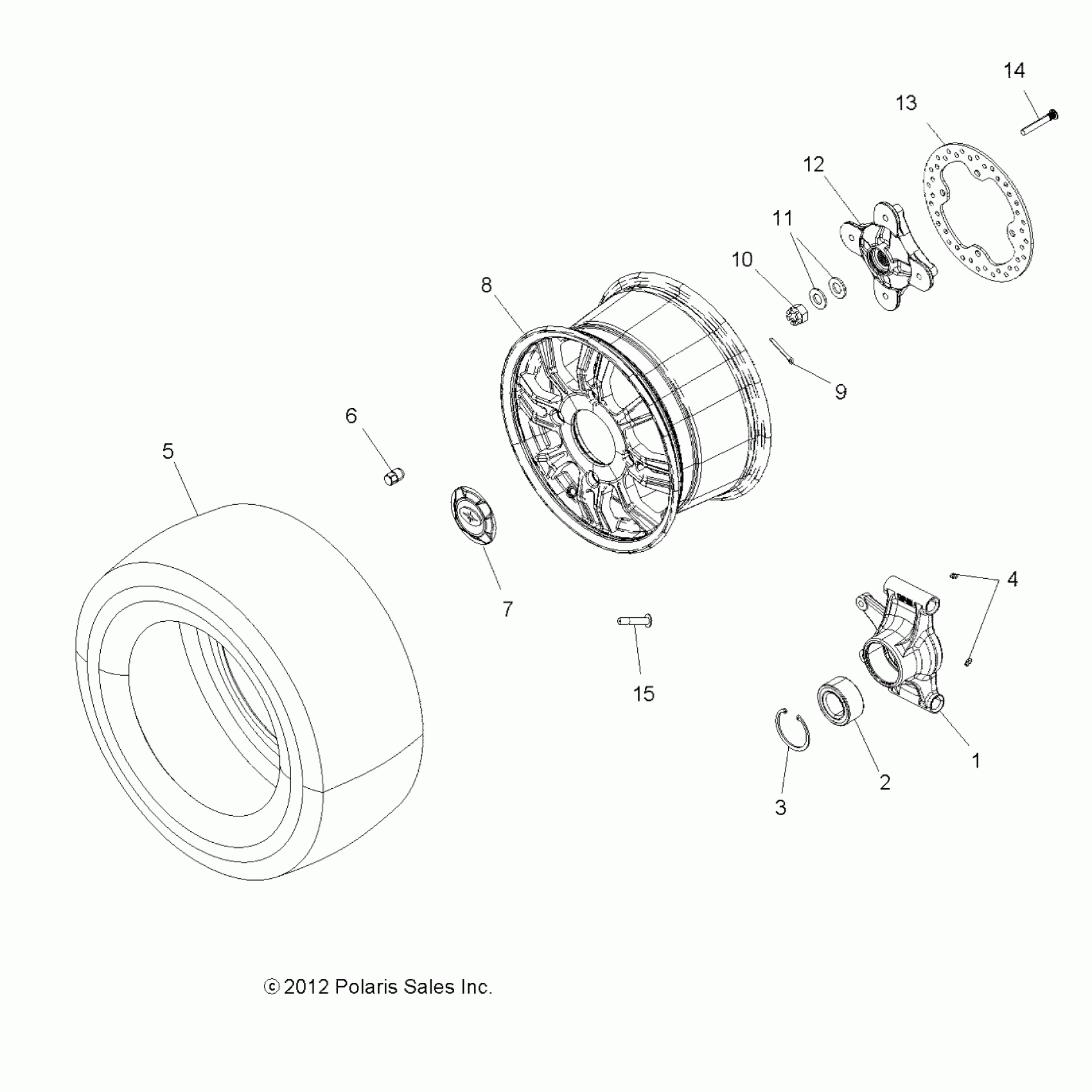

Polaris 850 SCRAMBLER HO/EPS HO - A13GH85AJ/EAK WHEELS, REAR and HUB - A13GH8EAK (49ATVWHEELREAR13850SCRAM) Diagram

#

Description
Price

1

CARRIER, BEARING, RH

5136690

$85.49

1

CARRIER, BEARING, LH

5136689

$85.49

2

BEARING, BALL, SEALED

3514699

$39.68

3

RING, RETAINING

7710440

$10.32

4

FITTING-LUBRICATION 1/4-28

7080424

$4.76

5

TIRE, REAR, 26X10-14

5414074

$167.99

6

NUT, WHEEL, REAR

7547361

$2.38

7

COVER, HUB

5450161

$57.76

8

RIM, REAR, CAST, MATTE BLACK [INCL. COVER, DECAL]

1521866-458

Unavailable

9

PIN, COTTER

7661404

$4.76

10

NUT, CASTLE

7547406

$4.76

11

WASHER, CONE

7555796

$7.94

12

HUB, WHEEL

5136946

$97.13

13

DISC, BRAKE

5250205

$76.89

14

STUD, WHEEL

7518671

$1.59

15

VALVE-RIM

1525017

$6.46
