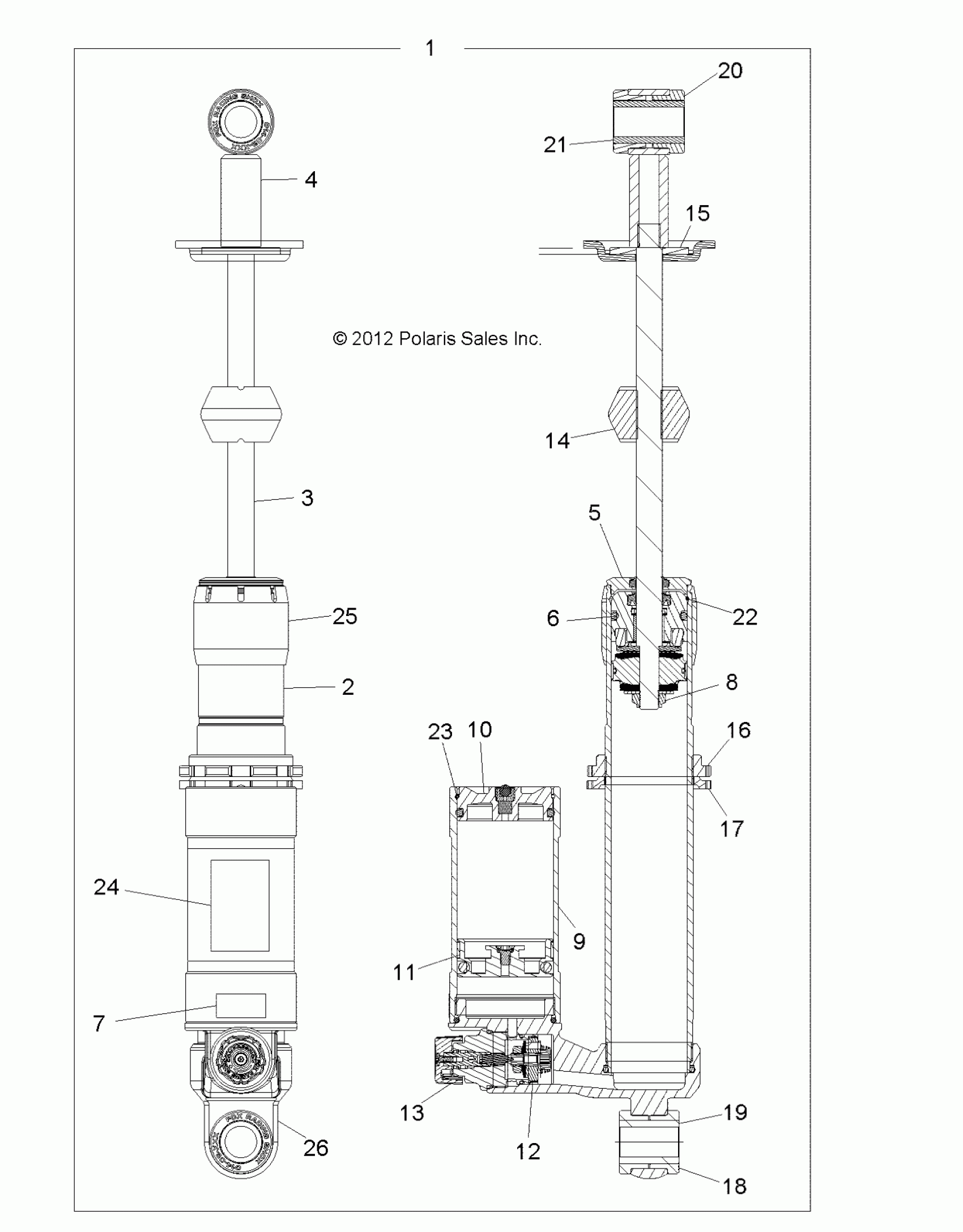

Polaris 850 SCRAMBLER HO/EPS HO - A13GH85AJ/EAK SUSPENSION, SHOCK, REAR - A13GH8EAK (49ATVSHOCKRR7043856) Diagram

#

Description
Price

1

SHOCK, REAR

7043856

$661.49

2

BODY

1500921

Unavailable

3

SHAFT

1500922

$154.90

4

EYELET, SHAFT

1500923

Unavailable

5

ASM., BEARING CAP

1500924

Unavailable

6

ASM., BEARING

1500925

$124.99

7

DECAL, COMPRESSION ADJUST

1500932

$4.92

8

Nut, Lock

1500016

$12.70

9

RESERVOIR

1500926

$154.99

10

ASM., END CAP

1500765

$124.99

11

ASM., PISTON

1500781

$74.99

12

Piston, CD Concentric Adjuster

1500627

Unavailable

13

ASM., CONCENTRIC ADJUSTER W/KNOB

1500875

Unavailable

14

BUMPER

1500902

$32.37

15

WASHER

1500896

$19.84

16

RING, PRELOAD

1500928

Unavailable

17

RING, PRELOAD

1500895

$40.46

18

BUSHING, EYELET

1500103

$8.89

19

SLEEVE

1500497

$36.41

20

BUSHING

1500307

$7.94

21

SLEEVE

1500929

$36.41

22

RING, RETAINING, WIRE

1500097

$4.76

23

RING, RETAINING

1500236

$9.52

24

DECAL, RESERVOIR

1500931

Unavailable

25

GUIDE, SPRING

1500930

$53.24

26

ASM., BODY CAP

1500920

$35.19
