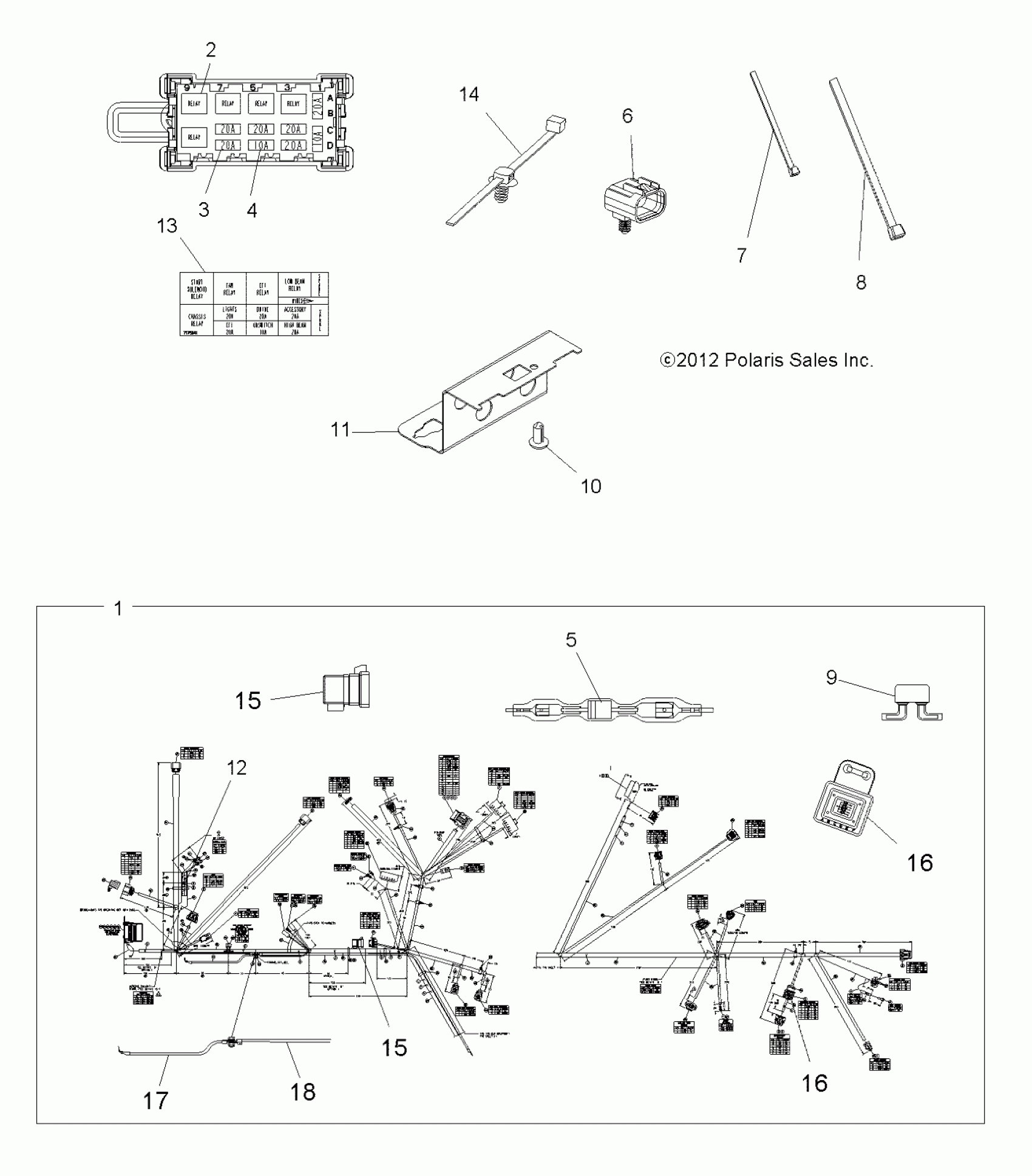

Polaris 850 SCRAMBLER HO/EPS HO - A13GH85AJ/EAK ELECTRICAL, HARNESS, NON-EPS - A13GH85AJ (49ATVHARNESS13850SCRAM) Diagram

COVER-RELAY/FUSE CENTER

5438758

$11.32

KIT, HARNESS, TPS

2878498

$113.32

HARNESS, MAIN [INCL. 1-6,9,12-13, ALL KITS, COVER]

2412439

Unavailable

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

FUSE-PARK,20 AMP

2434017

Unavailable

FUSE-IGNITION,10 AMP

2434016

$4.79

DIODE, 6AMP

2411035

$51.99

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

BREAKER-CIRCUIT,20 AMP,SEALED

2410881

$72.84

CLIP, PUSH ON

7670125

$7.99

BRACKET, FUSE BLOCK

5253502

$6.39

Kit, Fusible Link, 1.0 mm

2202670

$35.99

Kit, Fusible Link, .8 MM

2202607

$39.99

LABEL, FUSE BOX

7178677

Unavailable

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

RELAY, SPDT, SEALED

4010725

$48.87

KIT, RELAY, EPS, REPAIR [INCL. 4010725, WIRE HARNESS, REPAIR, CONNECTORS, SHRINK TUBES, INSTRUCTIONS]

2204853

$75.99

RELAY, SPDT, SEALED

4010725

$48.87

KIT, RELAY, EPS, REPAIR [INCL. 4010725, WIRE HARNESS, REPAIR, CONNECTORS, SHRINK TUBES, INSTRUCTIONS]

2204853

$75.99

MODULE, RESISTOR

4014055

Unavailable

MODULE, RESISTOR

4014055

Unavailable

CABLE, BATTERY, BLACK [LEFT]

4014087

$19.03

CABLE, BLACK

4014086

Unavailable
