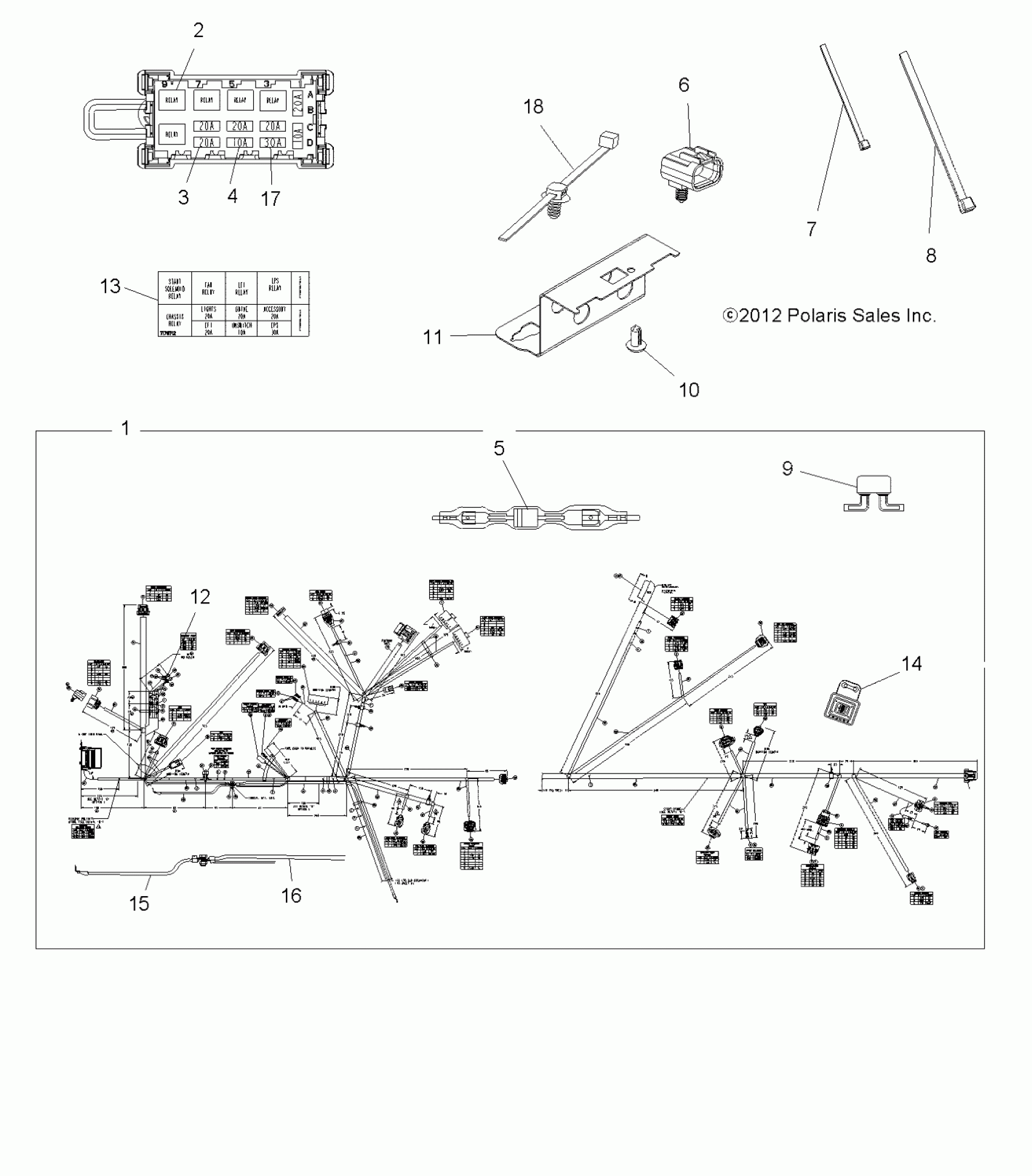

Polaris 850 SCRAMBLER HO/EPS HO - A13GH85AJ/EAK ELECTRICAL, HARNESS, EPS - A13GH8EAK (49ATVHARNESS13SCRAM850) Diagram

#

Description
Price

1

COVER-RELAY/FUSE CENTER

5438758

$11.32

1

KIT, HARNESS, TPS

2878498

$113.32

1

KIT, HARNESS, ENGINE TEMP

2878496

$59.99

1

HARNESS, MAIN, EPS [INCL. 1-6,9,12-17, ALL KITS, COVER]

2412440

Unavailable

2

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

3

FUSE-PARK,20 AMP

2434017

Unavailable

4

FUSE-IGNITION,10 AMP

2434016

$4.79

5

DIODE, 6AMP

2411035

$51.99

6

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

9

BREAKER-CIRCUIT,20 AMP,SEALED

2410881

$72.84

10

CLIP, PUSH ON

7670125

$7.99

11

BRACKET, FUSE BLOCK

5253502

$6.39

12

Kit, Fusible Link, 1.0 mm

2202670

$35.99

12

Kit, Fusible Link, .8 MM

2202607

$39.99

13

LABEL, FUSE BOX

7178712

Unavailable

14

MODULE, RESISTOR

4014055

Unavailable

15

CABLE, BATTERY, BLACK

4014087

$19.03

16

CABLE, BLACK

4014086

Unavailable

17

FUSE-MAIN,30 AMP

2434015

$7.19

18

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79
