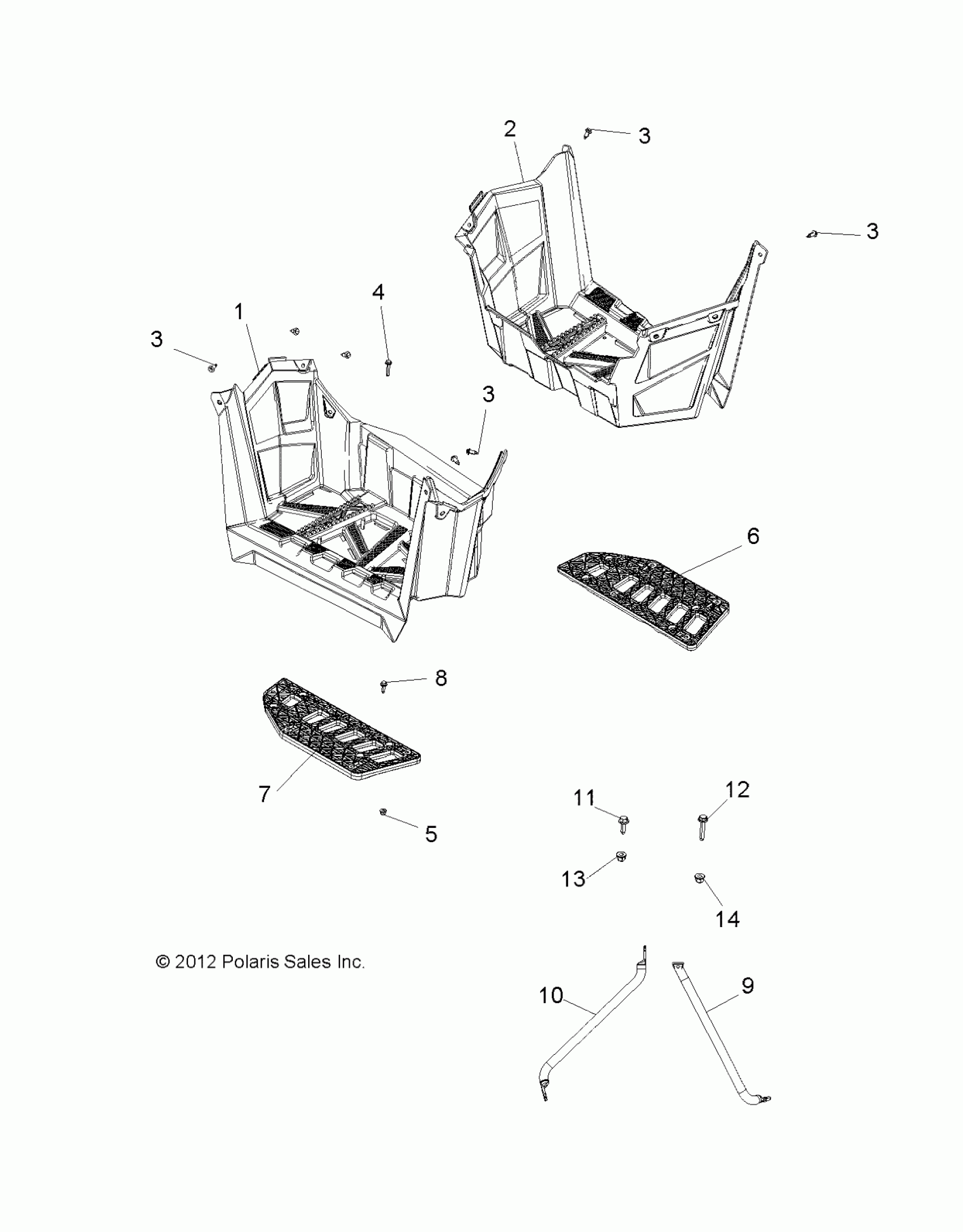

Polaris 850 SCRAMBLER HO/EPS HO - A13GH85AJ/EAK BODY, FOOTWELLS - A13GH85AJ/EAK (49ATVFOOTWELL13850SCRAM) Diagram

#

Description
Price

1

FOOTWELL, RH, BLACK

5439666-070

$222.60

2

FOOTWELL, LH, BLACK

5439665-070

$275.94

3

Rivet

7661855

$1.19

3

Rivet

7661855

$1.19

3

Rivet

7661855

$1.19

3

Rivet

7661855

$1.19

4

SCREW, FLANGE

7519202

$3.97

5

NUT-M6 FLANGE,NYLOC

7547274

$1.19

6

Support, Footpad, LH

5437600

$40.46

7

SUPPORT, FOOTPAD, RH

5437601

$40.46

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

9

TUBE, FOOTWELL SUPPORT, LH, BLACK

5337646-067

$224.99

10

TUBE, FOOTWELL SUPPORT, RH, BLACK

5337647-067

$224.99

11

SCREW [BUILT 1/02/13 AND BEFORE]

7516734

$3.17

11

BOLT-M8X1.25X25,HXFLG-OLIVE D [BUILT 1/03/13 AND AFTER]

7518514

$1.59

12

SCREW

7517696

$6.10

13

Nut, Flange

7547317

$2.38

14

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97
