SUSPENSION, REAR, 165" - S24TGM8RS (C602614)

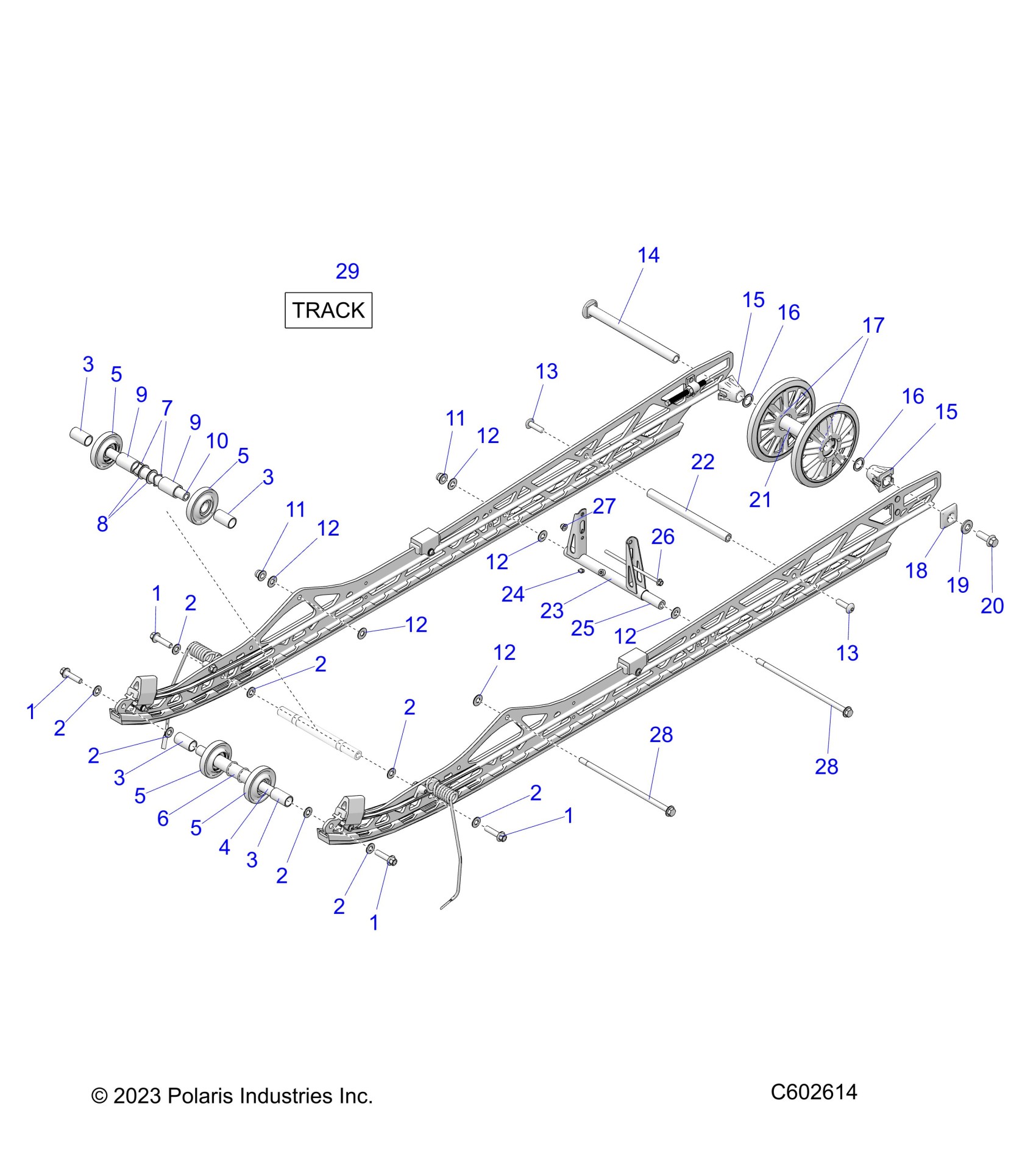

Polaris 850 RMK PRO SLASH 165 ALL OPTIONS (R02) - S24TGM8RS SUSPENSION, REAR, 165" - S24TGM8RS (C602614) Diagram
#
1
SCR-HXFL-M10X1.5X40 10.9ZODP80
7519216
$4.79
1
SCR-HXFL-M10X1.5X40 10.9ZODP80
7519216
$4.79
1
SCR-HXFL-M10X1.5X40 10.9ZODP80
7519216
$4.79
1
SCR-HXFL-M10X1.5X40 10.9ZODP80
7519216
$4.79
2
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
2
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
2
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
2
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
2
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
2
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
2
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
2
WASHER-3/8 FW SAE STL THRU-HRD
7556153
$1.99
3
SPACER, OUTSIDE
5454202
$3.19
3
SPACER, OUTSIDE
5454202
$3.19
3
SPACER, OUTSIDE
5454202
$3.19
3
SPACER, OUTSIDE
5454202
$3.19
4
SHAFT-ANTI STAB
5144946
$49.99
5
ASM-WHL,BOGIE,LWT,3.06,20MM
1597873
$48.56
5
ASM-WHL,BOGIE,LWT,3.06,20MM
1597873
$48.56
5
ASM-WHL,BOGIE,LWT,3.06,20MM
1597873
$48.56
5
ASM-WHL,BOGIE,LWT,3.06,20MM
1597873
$48.56
6
BUSHING-STRAP LIMITER CENTER SEE SUSPENSION, TORQUE ARM, FRONT
-------
Unavailable
7
WASHER-WAVE 7/8X1X.010
7555735
$3.99
8
WASHER-30MM ODX 21MM ID X 1.5
7556483
$3.99
9
SPACER, INSIDE
5454201
$3.19
9
SPACER, INSIDE
5454201
$3.19
10
ASM-CROSS SHAFT FTS
1543897
$79.99
11
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
11
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
12
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
12
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
12
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
12
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
12
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
12
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
13
SCR-M10X1.5X35 TX/TRUSS ZODP30
7520369
$6.39
13
SCR-M10X1.5X35 TX/TRUSS ZODP30
7520369
$6.39
14
SHAFT, IDLER, REAR
5139411
$129.99
15
SPACER-IDLER
5432535
$11.99
15
SPACER-IDLER
5432535
$11.99
16
BUSHING-MACH,.800X1.125X.06-Y
7555918
$1.59
16
BUSHING-MACH,.800X1.125X.06-Y
7555918
$1.59
17
ASM-WHEEL,SPOKE,7.25,6004 [INCL. BRG. AND RET. RING]
1590459
$47.99
17
RING-RETAINING [1 PER WHEEL]
7710444
$8.79
17
BEARING [1 PER WHEEL]
3514384
$19.84
18
SPACER-IDLER
5436496
$6.39
19
WSHR-DOMED 29X13X3 ZC DIN6796
7556929
$3.99
20
SCR-M12X1.75X35 HXFL ZOD P30
7520123
$8.79
21
SPACER, IDLER, CENTER, LWT
5338618
$9.99
22
SHAFT-CROSS
5139172
$29.03
23
ARM, REAR PIVOT ARM, BLK
1544229-329
$52.60
24
FITTING-LUBRICATION 1/4-28
7080424
$4.79
25
SHAFT-CROSS, RMK
5137418
$32.37
26
SCR-HXFL M6X1.0X150 8.8 ZOD
7519201
$19.99
27
NUT-M6X1.0, FLG-NYLOC-OLIVE D
7547339
$1.49
28
SCR-HXFL-M10X1.25X250 10.9 ZOD
7519327
$19.99
28
SCR-HXFL-M10X1.25X250 10.9 ZOD
7519327
$19.99
29
TRACK-165X2.75X3.5P, WW
5418048
$1,659.99
29
CLIP-GUIDE 012-0116
5274790
Unavailable
29
CLIP-FLAT 012-0117
5274791
Unavailable
