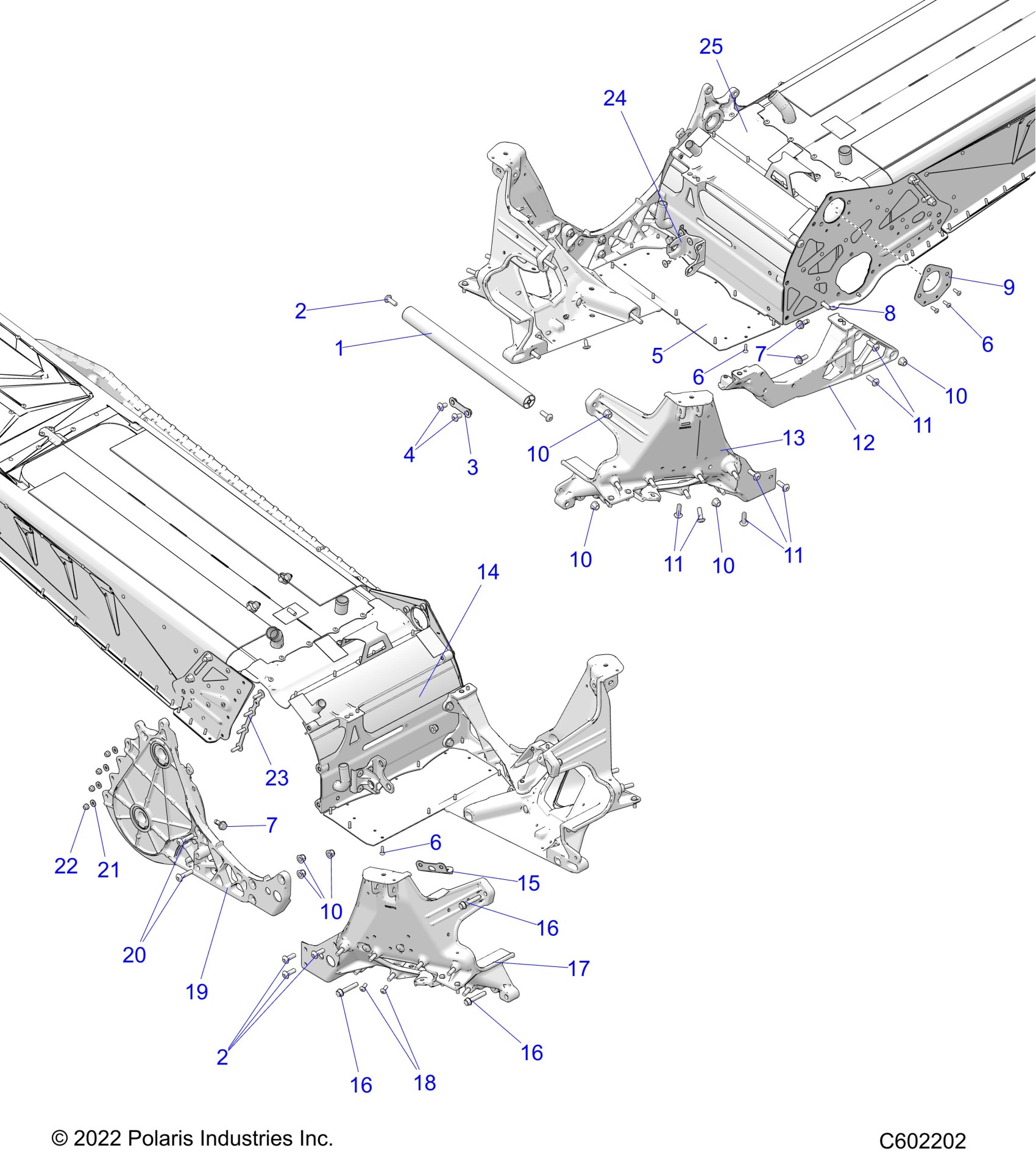

Polaris 850 RMK PRO SLASH 165 ALL OPTIONS (R02) - S24TGM8RS CHASSIS, BULKHEAD ASM. - S24TGM8RS(C601972) Diagram

#

Description
Price

-

KIT, LORD, 406, 50 ML CARTRIDGE [ADHESIVE]

2204400

$74.99

-

KIT, LORD, 406 REPAIR KIT, 50 ML [ADHESIVE]

2204171

$294.99

-

KIT, LORD, MIX NOZZLES, 12 PIECE

2204172

$4.99

1

TUBE-CROSSOVER, EXTRUDED

5140781

$106.49

2

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

2

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

3

ASM-NUT PLATE M8 47MM

1020829

$15.99

4

SCR-TXTH-M8X1.25X15 8.8ZOD P80

7519109

$1.59

5

FLOOR, BULKHEAD

5256849

$29.03

6

RIVET-3/16-.090-.290

7661637

Unavailable

6

RIVET-3/16-.090-.290

7661637

Unavailable

6

RIVET-3/16-.090-.290

7661637

Unavailable

7

SCR-HXFL-M8X1.25X20 8.8 ZY3P80

7527899

$2.39

7

SCR-HXFL-M8X1.25X20 8.8 ZY3P80

7527899

$2.39

8

SCR-RHCAR-M8X1.25X25 8.8 ZOD

7520297

$4.99

9

FLANGETTE-3BOLT 0MM OFFSET

5258020

$12.79

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

11

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

11

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

11

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

12

ASM., BRACE, LOWER, LH [REQUIRES ADHESIVE][INCL. DOWEL PINS]

1023784

$139.99

12

PIN-DOWEL,M6X10

5136879

Unavailable

13

ASM., CLIP W/STUD RMK LH [INCL. STUDS][REQUIRES ADHESIVE]

1023155

$354.99

13

STUD

7519204

$19.99

14

ASM-COOLER BULKHEAD [INCLUDES DOWEL]

1244616

$474.99

14

PIN-DOWEL,M6X10

5136879

Unavailable

15

ASM-BRKT IDLER TOP

1026546

$24.27

16

SCR-SH-M8X1.25X30 8.8 ZPC

7516732

$1.59

16

SCR-SH-M8X1.25X30 8.8 ZPC

7516732

$1.59

16

SCR-SH-M8X1.25X30 8.8 ZPC

7516732

$1.59

17

ASM-CLIP W/STUD RH [INCL. STUDS][REQUIRES ADHESIVE]

1023783

$319.99

17

STUD-WHEEL M8X1.25X48

7519204

$19.99

18

SCR-TXPH-M6X1.0X15 GR5 ZOD NYL

7518656

$3.99

19

ASM-BACKER BELT 197.70MM [REQUIRES ADHESIVE][INCL. BRNGS., RET RING]

1336930

$309.99

19

BEARING

3514308

Unavailable

19

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

20

SCR-TXTH M8X1.25X35 8.8ZOD P80

7519049

$7.19

21

WASHER-6.2X14.25X2 ZC

7556588

$2.39

22

NUT-HEX-M6X1.0 8 ZOD NYL

7547505

$2.39

23

ASM., STUD PLATE

1020066

$16.99

24

MOUNT-OIL PUMP SEE ENGINE, OIL PUMP

-------

Unavailable

25

CLOSEOFF-TUNNEL FRONT

5269827

$51.99
