Partiron

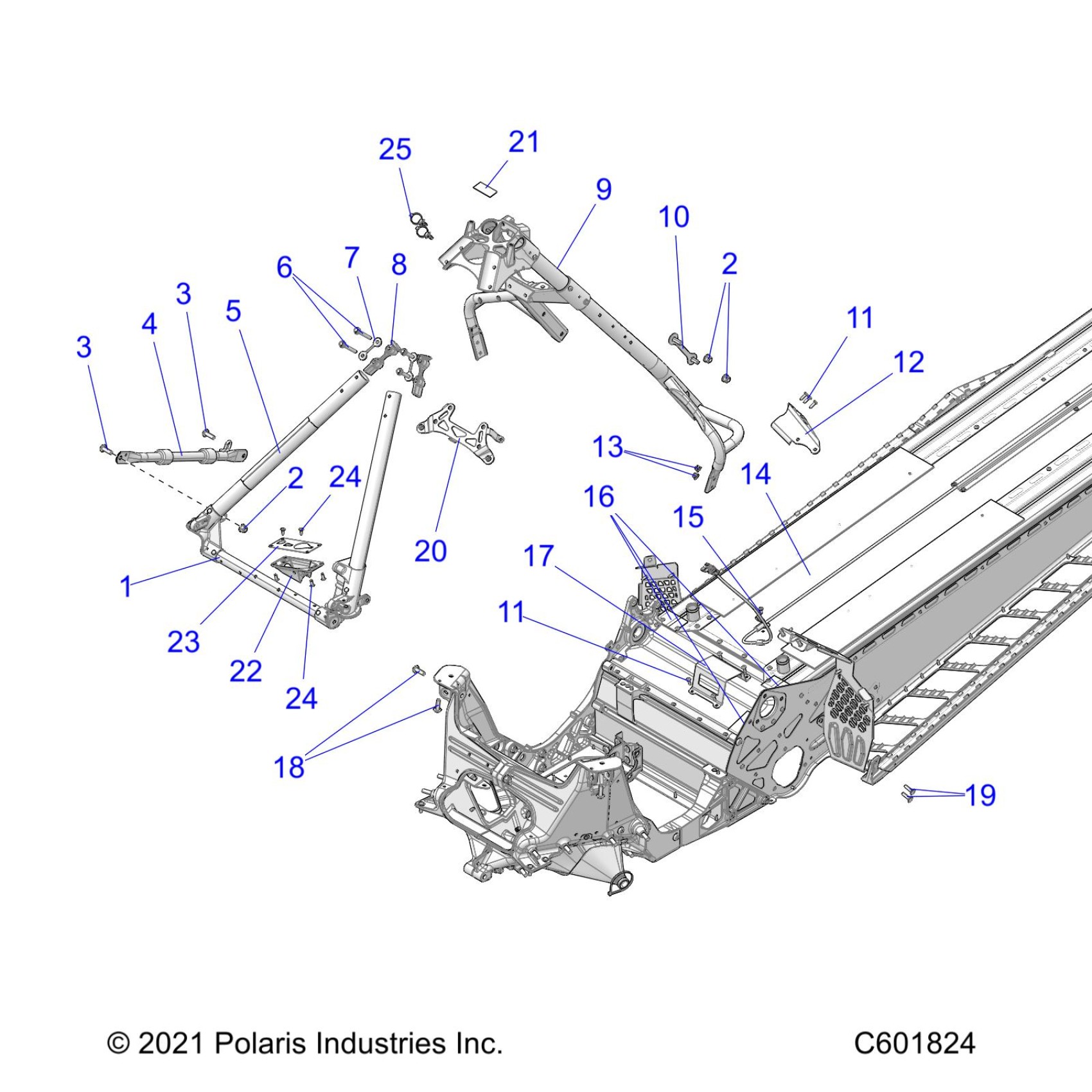

Polaris 850 RMK PRO 163/165 ALL OPTIONS (R02) - S22EGB8RS/EGA8RS CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S22EGB8RS/EGA8RS ALL OPTIONS (601006C) Diagram

#

Description
Price

1

ASM., FRAME, TUBE, FRONT RMK CF

1023850

$419.99

2

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

2

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

3

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

3

SCR-M8X1.25X25 8.8TXTR ZOD P80

7518906

$3.19

4

WELD-CROSS BRACE BLK

1026865

$74.99

5

FOIL-100MM X 200MM [USED ONLY WITH CARBON FIBER FRONT FRAME TUBE]

5814124

$8.99

6

SCR-HXFL-M6X1.0X55 10.9 ZODP30

7520721

$3.99

7

SHIM, TUBE

5633083

$6.99

8

SPACER-TUBE CAST 27.00 DIA

5633122

$9.59

8

SPACER, TUBE CAST [USED ONLY WITH CARBON FIBER FRONT FRAME TUBE]

5632923

$9.99

9

ASM., FRAME, TUBULAR, REAR, RMK

1023201

$579.99

10

ASM., STUD PLATE

1019337

$12.99

11

RIVET-3/16-.090-.290

7661637

$1.49

11

RIVET-3/16-.090-.290

7661637

$1.49

12

BRKT., SUPPORT, TOE STOP

5262012

$13.75

13

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

14

ASM-CHASSIS 850 163 QD BSC NAT [QUICK DRIVE COLOR OPTION][INCL. BULKHEAD AND QUICK DRIVE BACKER PLATE]

1025679-309

$2,059.99

14

ASM-TUNNEL 850 163 NAT [COLOR OPTION]

1023313-309

Unavailable

14

ASM-CHASSIS 850 163 QD BSC BLK [QUICK DRIVE COLOR OPTION][INCL. BULKHEAD AND QUICK DRIVE BACKER PLATE]

1025679-067

$2,059.99

14

ASM-TUNNEL 850 163 GLBLK [COLOR OPTION]

1023313-067

$2,059.99

14

ASM-CHASS850 163 QD BSC IRED [QUICK DRIVE COLOR OPTION][INCL. BULKHEAD AND QUICK DRIVE BACKER PLATE]

1025679-293

$2,059.99

14

ASM-TUNNEL 850 163 IRED [COLOR OPTION]

1023313-293

Unavailable

14

ASM-CHASSIS 850 163 QD BSC SGY [QUICK DRIVE COLOR OPTION][INCL. BULKHEAD AND QUICK DRIVE BACKER PLATE]

1025679-804

$2,059.99

14

ASM-TUNNEL 850 163 STHGRY [COLOR OPTION]

1023313-804

Unavailable

14

ASM-CHASS850 163QD BSC POLBLU [QUICK DRIVE COLOR OPTION][INCL. BULKHEAD AND QUICK DRIVE BACKER PLATE]

1025679-751

$2,059.99

14

ASM-TUNNEL 850 163 BSC PBLUE [COLOR OPTION]

1023313-751

Unavailable

14

ASM-CHASS850 163QD TITNMET [QUICK DRIVE COLOR OPTION][INCL. BULKHEAD AND QUICK DRIVE BACKER PLATE]

1025679-705

$2,059.99

14

ASM-TUNNEL 850 163� TITNMET [COLOR OPTION]

1023313-705

Unavailable

15

CLAMP-NYLON, CABLE, 1/4"

7080539

$4.79

15

RIVET

7662251

$2.49

16

PAD

5814353

$9.70

17

BRKT., AIR BOX SUPPPORT

5258618

$12.99

18

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$6.39

19

SCR-RHCAR-M6X1.0X22 8.8 ZPC

7519338

$3.19

20

ASM-REGULATOR MOUNT RMK

1023231

$32.37

21

PAD-51X22

5814828

$2.41

22

MOUNT-LOAD CENTER

5454789

$9.70

23

BRKT-LOAD CENTER

5265340

$4.84

24

RIVET-4.8MM DIA-1.5-6.0 GRIP

7661973

$1.49

24

RIVET-4.8MM DIA-1.5-6.0 GRIP

7661973

$1.49

25

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79
