- 850 RMK PRO 155 ALL OPTIONS (R01) - S24TFK8RS
SUSPENSION, REAR - S24TFK8RS (C602571)

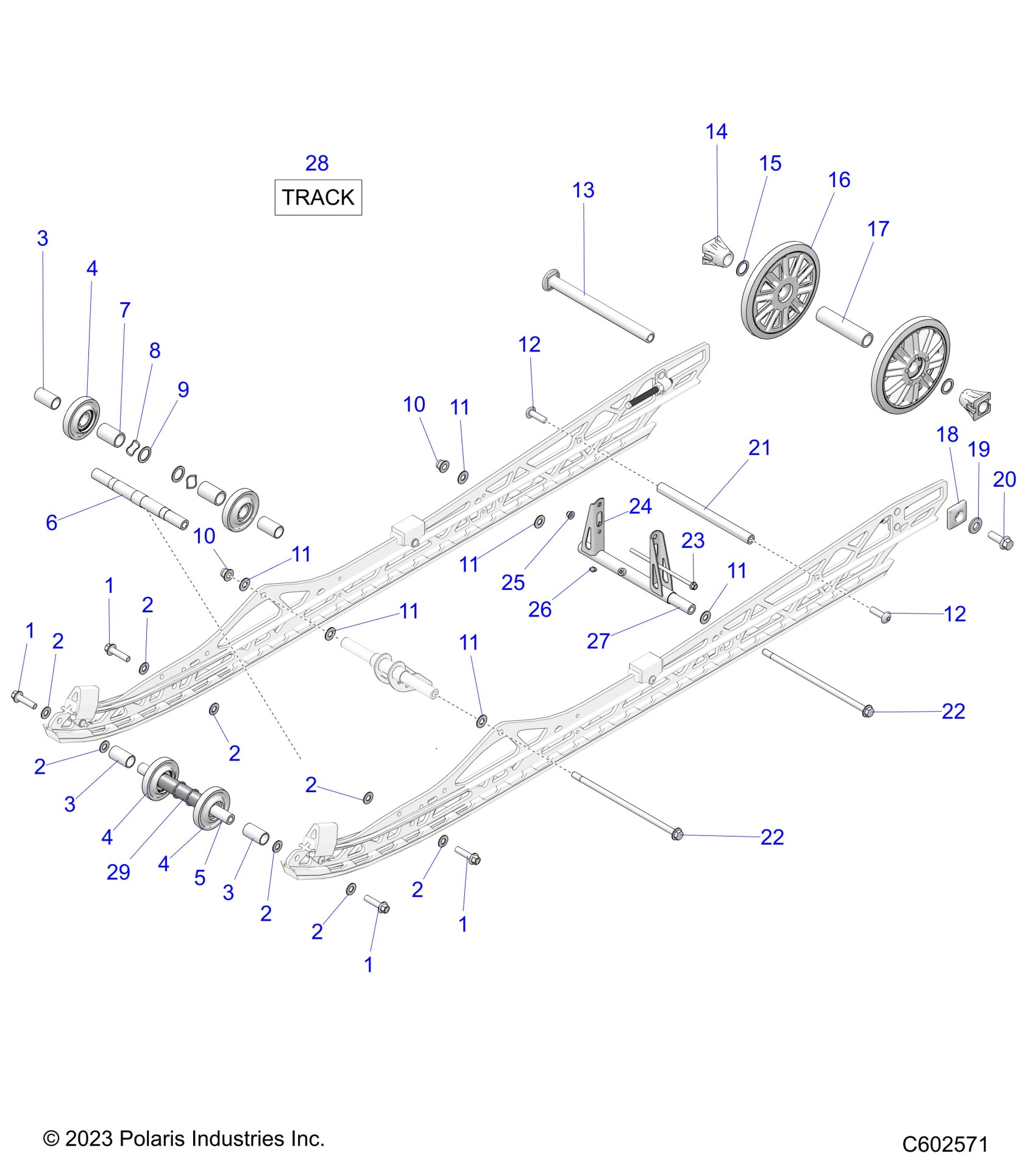

Polaris 850 RMK PRO 155 ALL OPTIONS (R01) - S24TFK8RS SUSPENSION, REAR - S24TFK8RS (C602571) Diagram
#
1
SCR-HXFL-M10X1.5X40 10.9ZODP80
7519216
$4.79
1
SCR-HXFL-M10X1.5X40 10.9ZODP80
7519216
$4.79
1
SCR-HXFL-M10X1.5X40 10.9ZODP80
7519216
$4.79
1
SCR-HXFL-M10X1.5X40 10.9ZODP80
7519216
$4.79
2
WASHER-10.5X22.0X1.6 SPC
7556155
$5.22
2
WASHER-10.5X22.0X1.6 SPC
7556155
$5.22
2
WASHER-10.5X22.0X1.6 SPC
7556155
$5.22
2
WASHER-10.5X22.0X1.6 SPC
7556155
$5.22
2
WASHER-10.5X22.0X1.6 SPC
7556155
$5.22
2
WASHER-10.5X22.0X1.6 SPC
7556155
$5.22
2
WASHER-10.5X22.0X1.6 SPC
7556155
$5.22
2
WASHER-10.5X22.0X1.6 SPC
7556155
$5.22
3
SPACER, OUTSIDE
5454202
$3.19
3
SPACER, OUTSIDE
5454202
$3.19
3
SPACER, OUTSIDE
5454202
$3.19
4
ASM-WHL,BOGIE,LWT,3.06,20MM [INCLUDES RETAINING RING & BEARING]
1597873
$48.56
4
Ring, Retaining [1PER WHEEL]
7710560
$8.79
4
BEARING [1PER WHEEL]
3514879
Unavailable
4
ASM-WHL,BOGIE,LWT,3.06,20MM [INCLUDES RETAINING RING & BEARING]
1597873
$48.56
4
Ring, Retaining [1PER WHEEL]
7710560
$8.79
4
BEARING [1PER WHEEL]
3514879
Unavailable
4
ASM-WHL,BOGIE,LWT,3.06,20MM [INCLUDES RETAINING RING & BEARING]
1597873
$48.56
4
Ring, Retaining [1PER WHEEL]
7710560
$8.79
4
BEARING [1PER WHEEL]
3514879
Unavailable
5
SHAFT-ANTI STAB
5144946
$49.99
6
ASM-CROSS SHAFT FTS
1543897
$79.99
7
SPACER, INSIDE
5454201
$3.19
8
WASHER-WAVE 7/8X1X.010
7555735
$3.99
9
WASHER-30MM ODX 21MM ID X 1.5
7556483
$3.99
10
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
10
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
11
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
11
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
11
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
11
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
11
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
11
WSHR-10.5X24X1.2446 ZOD HRD
7556545
$3.19
12
SCR-M10X1.5X35 TX/TRUSS ZODP30
7520369
$6.39
12
SCR-M10X1.5X35 TX/TRUSS ZODP30
7520369
$6.39
13
SHAFT, IDLER, REAR
5139411
$129.99
14
SPACER-IDLER
5432535
$11.99
15
BUSHING-MACH,.800X1.125X.06-Y
7555918
$1.59
16
ASM-WHEEL,SPOKE,7.25,6004 [INCLUDES RETAINING RING & BEARING]
1590459
$47.99
16
BEARING-.7874X1.6535X.4724,NTN [1PER WHEEL]
3514384
$19.84
16
RING-RETAINING [1PER WHEEL]
7710444
$8.79
16
ASM-WHL,CARRIER,LWT,5.62 [1PER WHEEL]
1597837
$54.99
17
SPACER, IDLER, CENTER, LWT
5338618
$9.99
18
SPACER, IDLER
5436496
$6.39
19
WSHR-DOMED 29X13X3 ZC DIN6796
7556929
$3.99
20
SCR-M12X1.75X35 HXFL ZOD P30
7520123
$8.79
21
SHAFT-CROSS MACH
5139172
$29.03
22
SCR-HXFL-M10X1.25X250 10.9 ZOD
7519327
$19.99
22
SCR-HXFL-M10X1.25X250 10.9 ZOD
7519327
$19.99
23
SCR-HXFL M6X1.0X150 8.8 ZOD
7519201
$19.99
24
ARM, REAR PIVOT ARM, BLK
1544229-329
$52.60
25
NUT-M6X1.0, FLG-NYLOC-OLIVE D
7547339
$1.49
26
FITTING-LUBRICATION 1/4-28
7080424
$4.79
27
SHAFT-CROSS, RMK
5137418
$32.37
28
TRACK-155X2.6X2.86P WW SER 6 2.6" TRACK OPTION
5418604
$1,454.99
28
CLIP-TRACK, SHORT GUIDE 012-0113 USED ON 2.6" TRACK OPTION
5268856
$7.19
28
CLIP-TRACK, FLAT USED ON 2.6" TRACK OPTION
5251273
$10.39
28
TRACK-155X2.75X3.5P, WW 2.75" TRACK OPTION
5418047
$1,547.99
28
CLIP-GUIDE 012-0116 USED ON 2.75" TRACK OPTION
5274790
Unavailable
28
CLIP-FLAT 012-0117 USED ON 2.75" TRACK OPTION
5274791
Unavailable
29
BUSHING-STRAP LIMITER CENTER [SEE SUSPENSION, TORQUE ARM, FRONT]
-------
Unavailable
